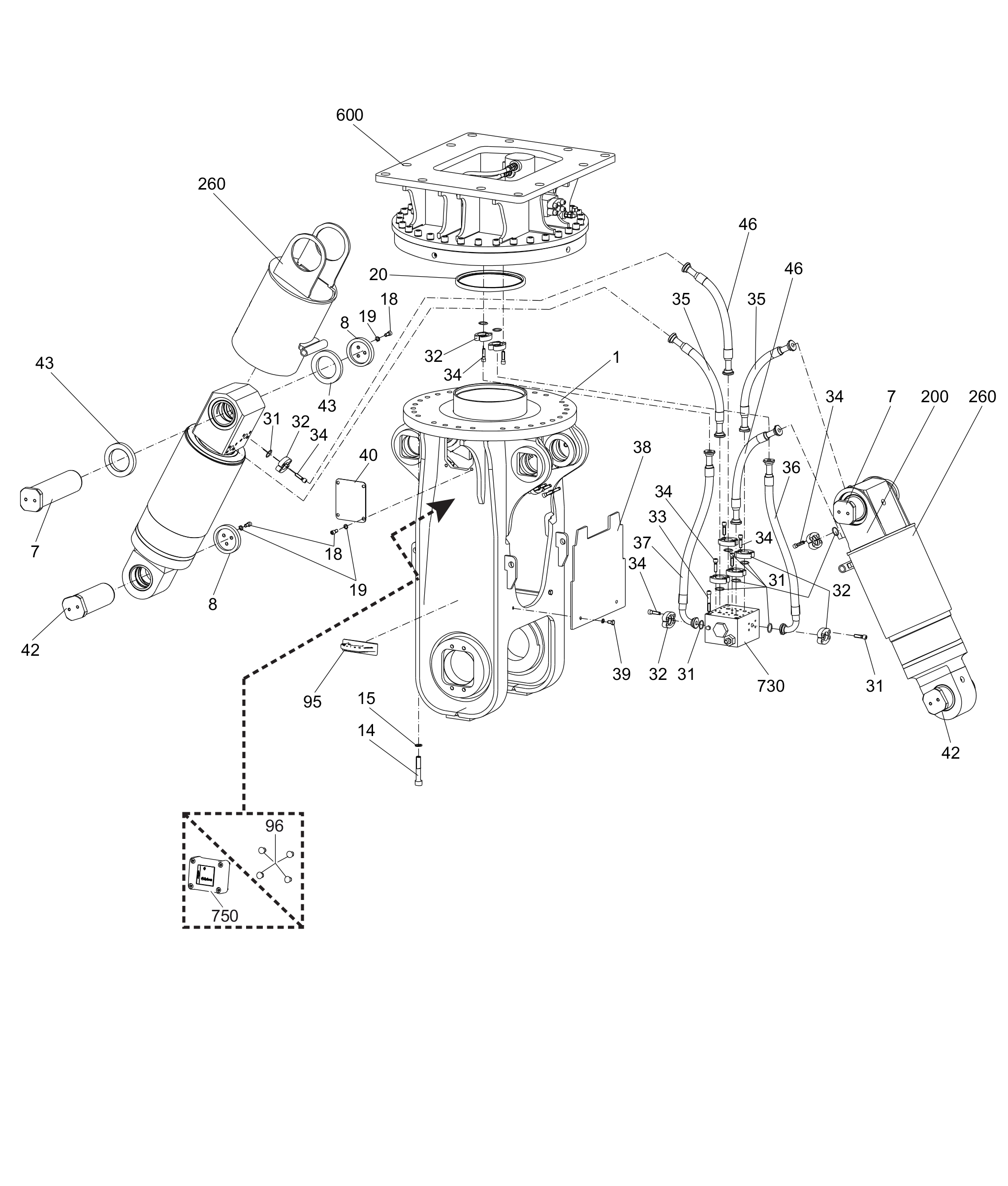

Hydraulic demolition cutter part 2
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363120027 | Housing | 1 | with item 95 | |||
| 3363120099 | Bolt | 2 | ||||
| 3363120308 | Cap | 4 | ||||
| 3360106101 | ALLEN SCREW | 24 | ||||
| 3361850748 | LOCK WASHER | 24 | ||||
| 3360103751 | ALLEN SCREW | 20 | ||||
| 3361850596 | PAIR OF LOCK WASHERS | 27 | ||||
| 3363070083 | SEAL | 1 | ||||
| 3360314370 | O-RING | 12 | ||||
| 3361853208 | FLANGE HALF | 24 | ||||
| 3360118443 | Allen screw | 3 | ||||
| 3360026513 | ALLEN SCREW | 48 | ||||
| 3363122992 | Hydraulic hose | 2 | ||||
| 3363087603 | Hydraulic hose | 1 | ||||
| 3363087604 | Hydraulic hose | 1 | ||||
| 3363122341 | Plate | 2 | ||||
| 3360433381 | HEXAGON HEAD BOLT | 4 | ||||
| 3362262371 | CAP | 2 | ||||
| 3363120098 | Bolt | 2 | ||||
| 3363117528 | Disk | 4 | ||||
| 3363122858 | Hydraulic hose | 2 | ||||
| 3363111995 | LIFTING EYE | 2 | professional welding process necessary | |||
| 3315439145 | PROTECTIVE PLUG HATCON | 4 | only for hydraulic demolition cutters without HATCON | |||
| 3363121154 | Hydraulic cylinder complete | 2 | see separate chapter | |||
| 3363122339 | Protective piston rod sheath complete | 2 | see separate chapter | |||
| 3363120351 | Upper part complete | 1 | see separate chapter | |||
| 3363103690 | Rapid movement valve | 1 | ||||
| 3315439180 | HATCON | 1 | only for hydraulic demolition cutters with HATCON / see separate chapter |
