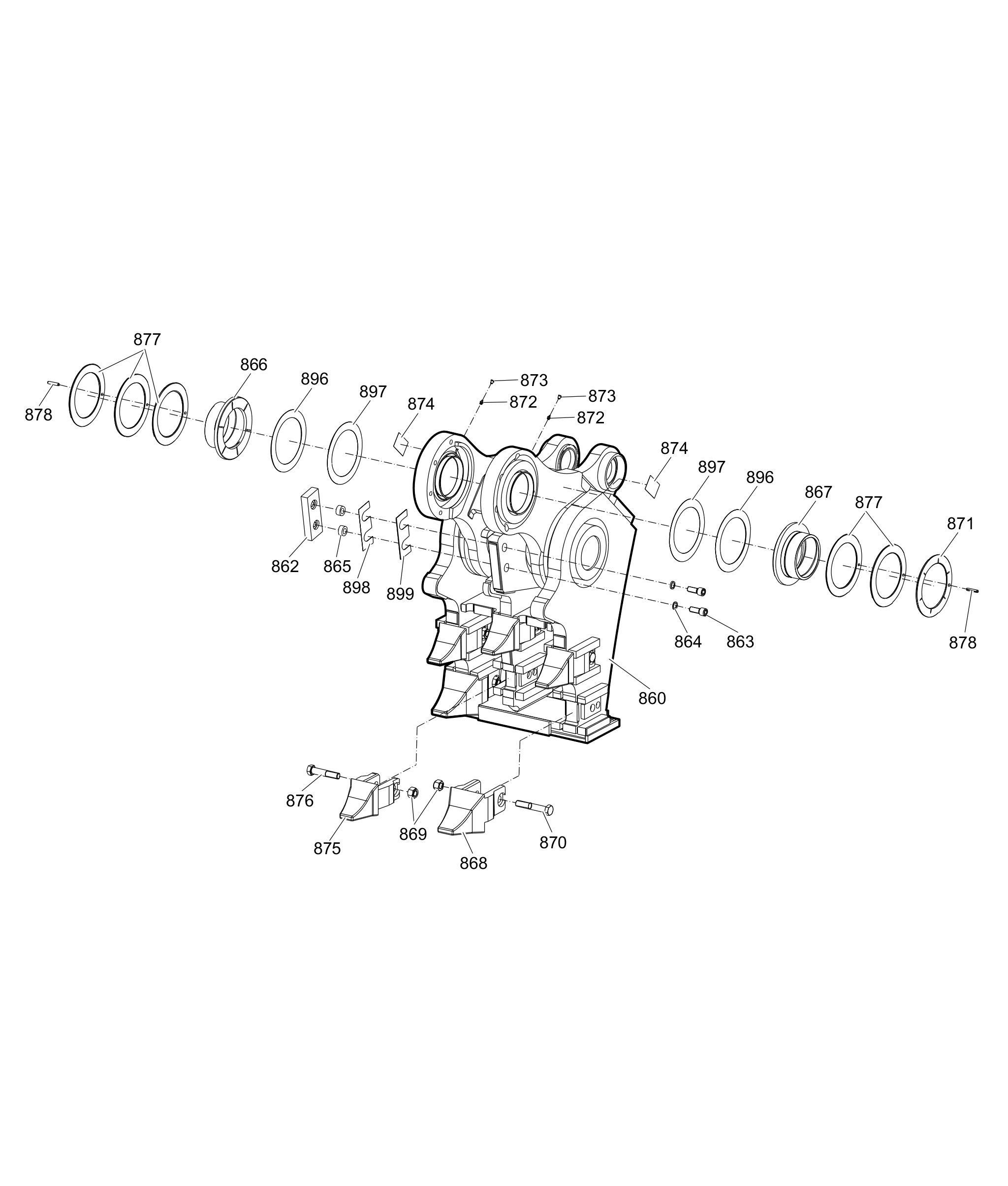

Cutter jaw (triple) P
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363124869 | Cutter jaw (triple) P | 1 | with item 862 - 878 | |||
| 3363086455 | CUTTER BLADE | 1 | ||||
| 3360106092 | ALLEN SCREW | 2 | ||||
| 3361850748 | LOCK WASHER | 2 | ||||
| 3363035107 | LOCK RING | 2 | ||||
| 3363092469 | Bearing bush | 1 | ||||
| 3363092471 | Bearing bush | 1 | ||||
| 3363098963 | TIP OF TOOTH | 2 | with item 869 - 870 | |||
| 3363098934 | HEXAGON NUT | 6 | ||||
| 3363083963 | HEXAGON HEAD SCREW | 2 | ||||
| 3363120301 | Spacer ring | 1 | ||||
| 3360209834 | GREASE NIPPLE | 2 | ||||
| 3363087600 | CAP | 2 | ||||
| 3362268751 | LABEL TIGHTENING TORQUE | 2 | German/English | |||
| 3363098968 | TIP OF TOOTH | 4 | with item 869 and 876 | |||
| 3363123492 | HEXAGON HEAD BOLT | 4 | ||||
| 3363120302 | Spacer ring | 5 | ||||
| 3363098104 | SPRING DOWEL SLEEVE | 2 | ||||
| 3363088397 | Spacer ring | 2 | ||||
| 3363099095 | Spacer ring | 2 | ||||
| 3363092403 | SHIM | 1 | 0.2 mm (0.01 in.) thick, as required | |||
| 3363091026 | SHIM | 1 | 1.0 mm (0.04 in.) thick, as required |
