Spare Parts

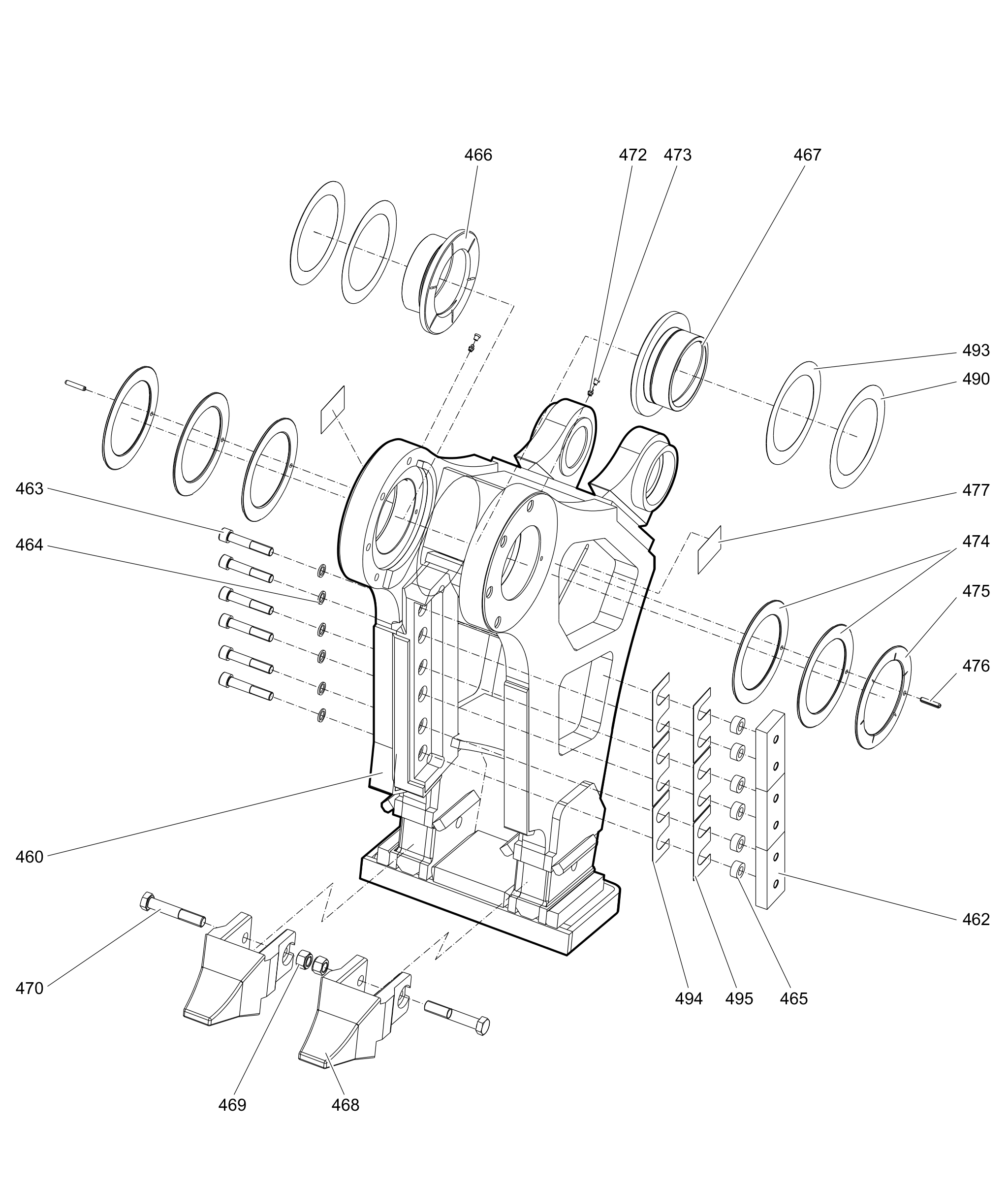

Cutter jaw (double) U

#		Part number	Name	QTY	Remarks	Information
		3363120321	Cutter jaw (double) U	1	with item 462 - 477
		3363086479	CUTTER BLADE	3
		3360106101	ALLEN SCREW	6
		3361850748	LOCK WASHER	6
		3363035107	LOCK RING	6
		3363092469	Bearing bush	1
		3363092471	Bearing bush	1
		3363098963	TIP OF TOOTH	2	with item 469 and 470
		3363098934	HEXAGON NUT	2
		3363083963	HEXAGON HEAD SCREW	2
		3360209834	GREASE NIPPLE	1
		3363087600	CAP	1
		3363120302	Spacer ring	4
		3363120301	Spacer ring	2
		3363098104	SPRING DOWEL SLEEVE	2
		3362268751	LABEL TIGHTENING TORQUE	2	German/English
		3363088397	Spacer ring	2	0.2 mm (0.01 in.) thick, as required
		3363099095	Spacer ring	2	0.5 mm (0.02 in.) thick, as required
		3363088149	SHIM	3	0.2 mm (0.01 in.) thick, as required
		3363087607	SHIM	3	1.0 mm (0:04 in.) thick, as required
