Spare Parts

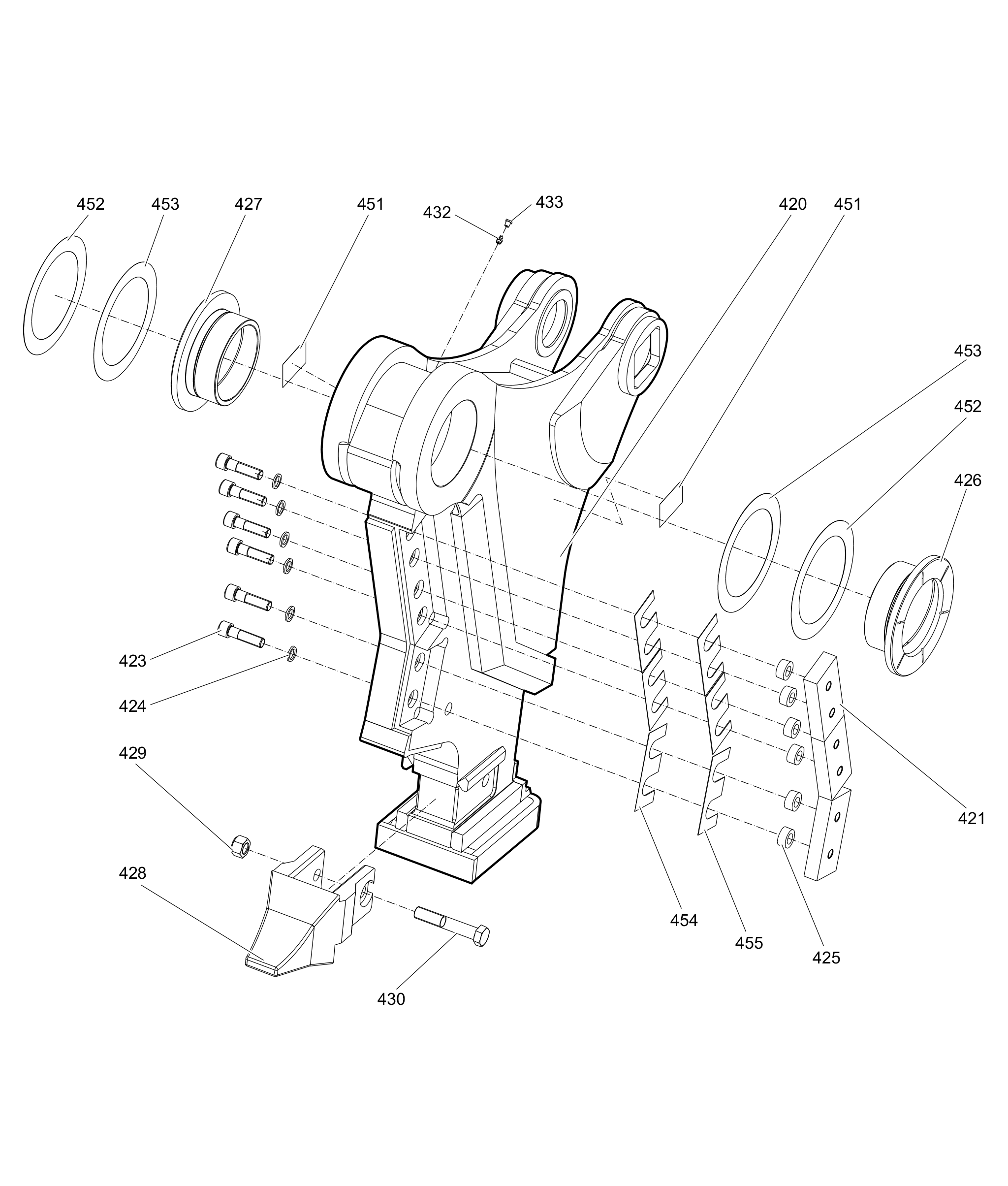

Cutter jaw (single) U

#		Part number	Name	QTY	Remarks	Information
		3363120317	Cutter jaw (single) U	1	with item 421 - 451
		3363086479	CUTTER BLADE	3
		3363070085	ALLEN SCREW	6
		3361850748	LOCK WASHER	6
		3363035107	LOCK RING	6
		3363092469	Bearing bush	1
		3363092471	Bearing bush	1
		3363098963	TIP OF TOOTH	1	with item 429 and 430
		3363098934	HEXAGON NUT	1
		3363083963	HEXAGON HEAD SCREW	1
		3360209834	GREASE NIPPLE	1
		3363087600	CAP	1
		3362268751	LABEL TIGHTENING TORQUE	2	German/English
		3363088397	Spacer ring	2	0.2 mm (0.01 in.) thick,as required
		3363099095	Spacer ring	2	0.5 mm (0.02 in.) thick, as required
		3363088149	SHIM	3	0.2 mm (0.01 in.) thick,as required
		3363087607	SHIM	3	1.0 mm (0.04 in.) thick, as required
