Mechanical
Spare Parts

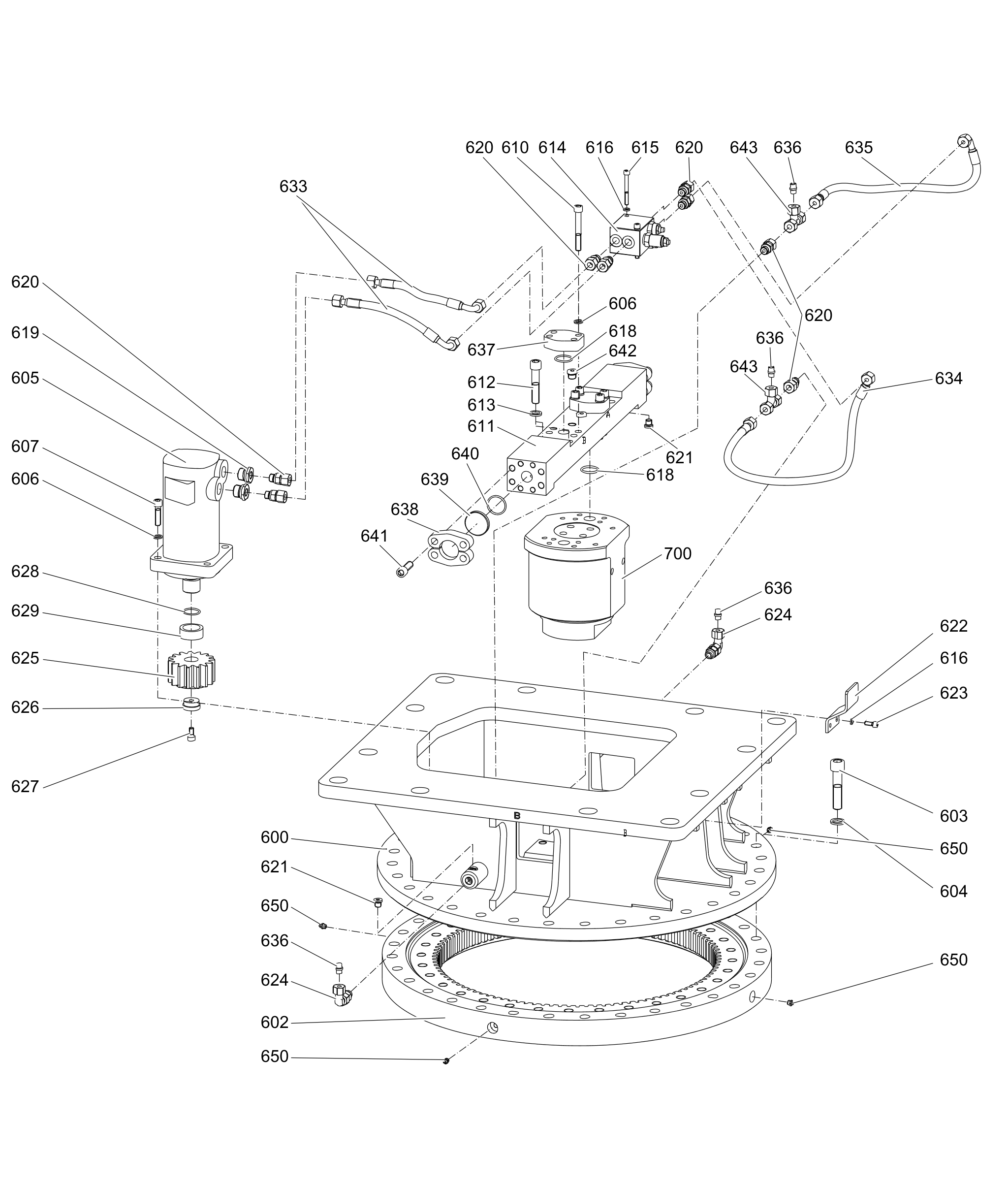

Upper part complete
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363120351 | Upper part complete | 1 | with item 602 - 700B | see separate chapter | |||
| 3363070082 | Four point bearing | 1 | ||||
| 3360106099 | ALLEN SCREW | 36 | ||||
| 3361850748 | LOCK WASHER | 36 | ||||
| 3363098967 | HYDRAULIC MOTOR | 1 | ||||
| 3361850596 | PAIR OF LOCK WASHERS | 12 | ||||
| 3360026513 | ALLEN SCREW | 4 | ||||
| 3363034429 | ALLEN SCREW | 8 | ||||
| 3363104173 | Connection plate | 1 | ||||
| 3360026648 | ALLEN SCREW | 4 | ||||
| 3361333703 | LOCK WASHER | 4 | ||||
| 3362266712 | VALVE BLOCK | 1 | ||||
| 3360103738 | ALLEN SCREW | 2 | ||||
| 3361850743 | PAIR OF LOCK WASHERS | 4 | ||||
| 3360314370 | O-RING | 4 | ||||
| 3362267435 | FITTING | 2 | ||||
| 3360478333 | FITTING | 8 | ||||
| 3360478439 | THREADED PLUG | 4 | ||||
| 3363092059 | Cover | 1 | ||||
| 3360103733 | ALLEN SCREW | 2 | ||||
| 3363091912 | FITTING | 2 | ||||
| 3362260807 | SPUR PINION | 1 | ||||
| 3363088327 | RING | 1 | ||||
| 3361031981 | ALLEN SCREW | 1 | ||||
| 3360313304 | O-RING | 1 | ||||
| 3362265869 | RING | 1 | ||||
| 3363083972 | HYDRAULIC HOSE | 2 | ||||
| 3363085884 | Hydraulic hose | 1 | ||||
| 3363083970 | Hydraulic hose | 1 | ||||
| 3360314593 | PLUG | 4 | ||||
| 3363034040 | BLIND FLANGE | 2 | ||||
| 3360992488 | FLANGE HALF | 4 | ||||
| 3363031348 | BLIND PLATE | 2 | ||||
| 3360314372 | O-RING | 2 | ||||
| 3363034274 | ALLEN SCREW | 8 | ||||
| 3360478440 | THREADED PLUG | 2 | ||||
| 3360314543 | FITTING | 2 | ||||
| 3360209834 | GREASE NIPPLE | 4 | ||||
| 3363033685 | ROTARY TRANSMISSION | 1 |
