Spare Parts

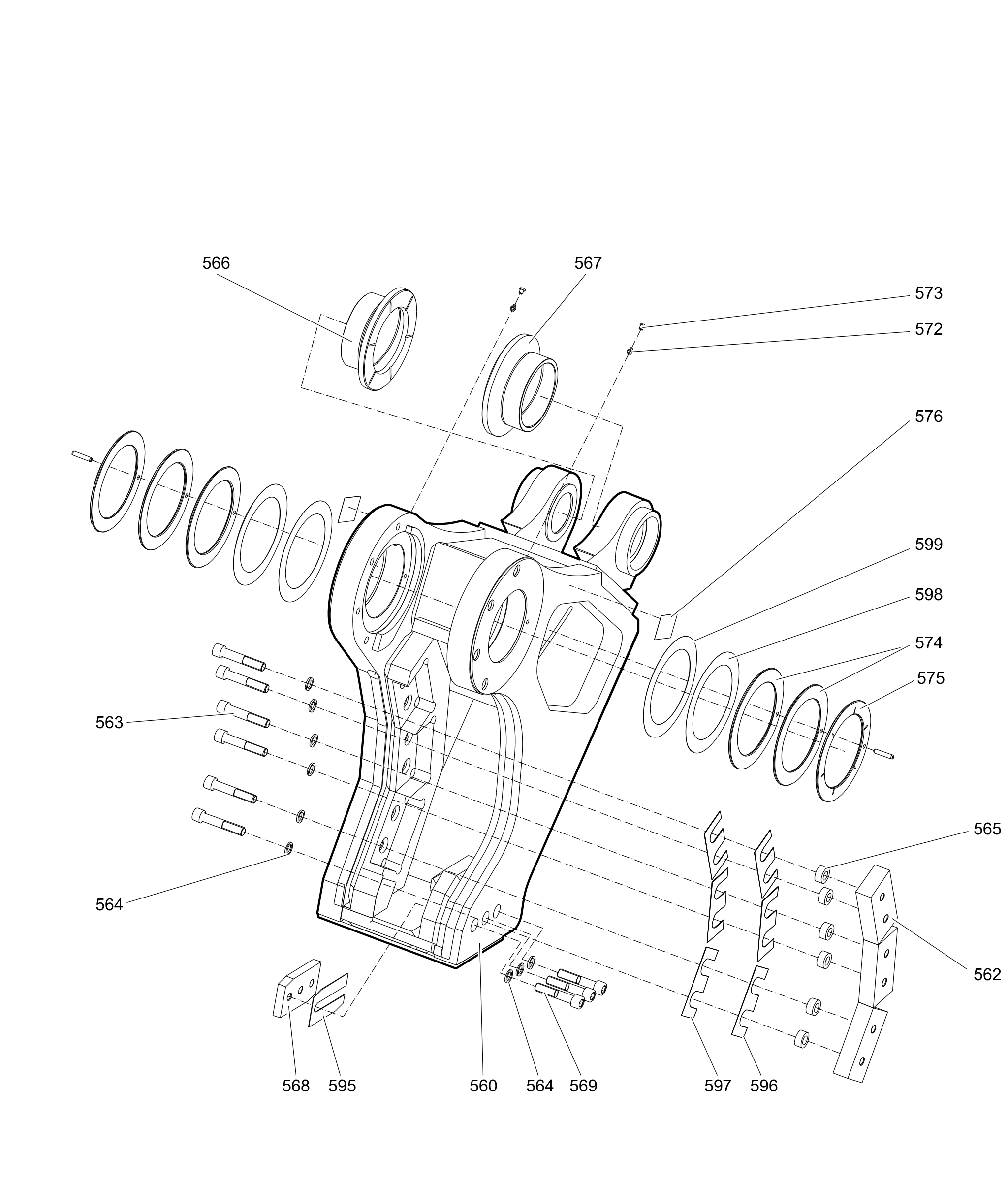

Cutter jaw (double) S

#		Part number	Name	QTY	Remarks	Information
		3363121245	Cutter jaw (double) S	1	with item 562 - 576
		3363086457	Cutter blade	3
		3360106101	ALLEN SCREW	6
		3361850748	LOCK WASHER	9
		3363035107	LOCK RING	6
		3363092469	Bearing bush	1
		3363092471	Bearing bush	1
		3363090241	SLIDING PLATE	1
		3360106100	ALLEN SCREW	3
		3360209834	GREASE NIPPLE	1
		3363087600	CAP	1
		3363120302	Spacer ring	4
		3363120301	Spacer ring	2
		3362268751	LABEL TIGHTENING TORQUE	2	German/English
		3363093749	SHIM	1	1.0 mm (0.04 in.) thick, as required
		3363088149	SHIM	3	0.2 mm (0.01 in.) thick, as required
		3363087607	SHIM	3	1.0 mm (0.04 in.) thick, as required
		3363088397	Spacer ring	2	0.2 mm (0.01 in.) thick, as required
		3363099095	Spacer ring	2	0.5 mm (0.02 in.) thick, as required
