Spare Parts

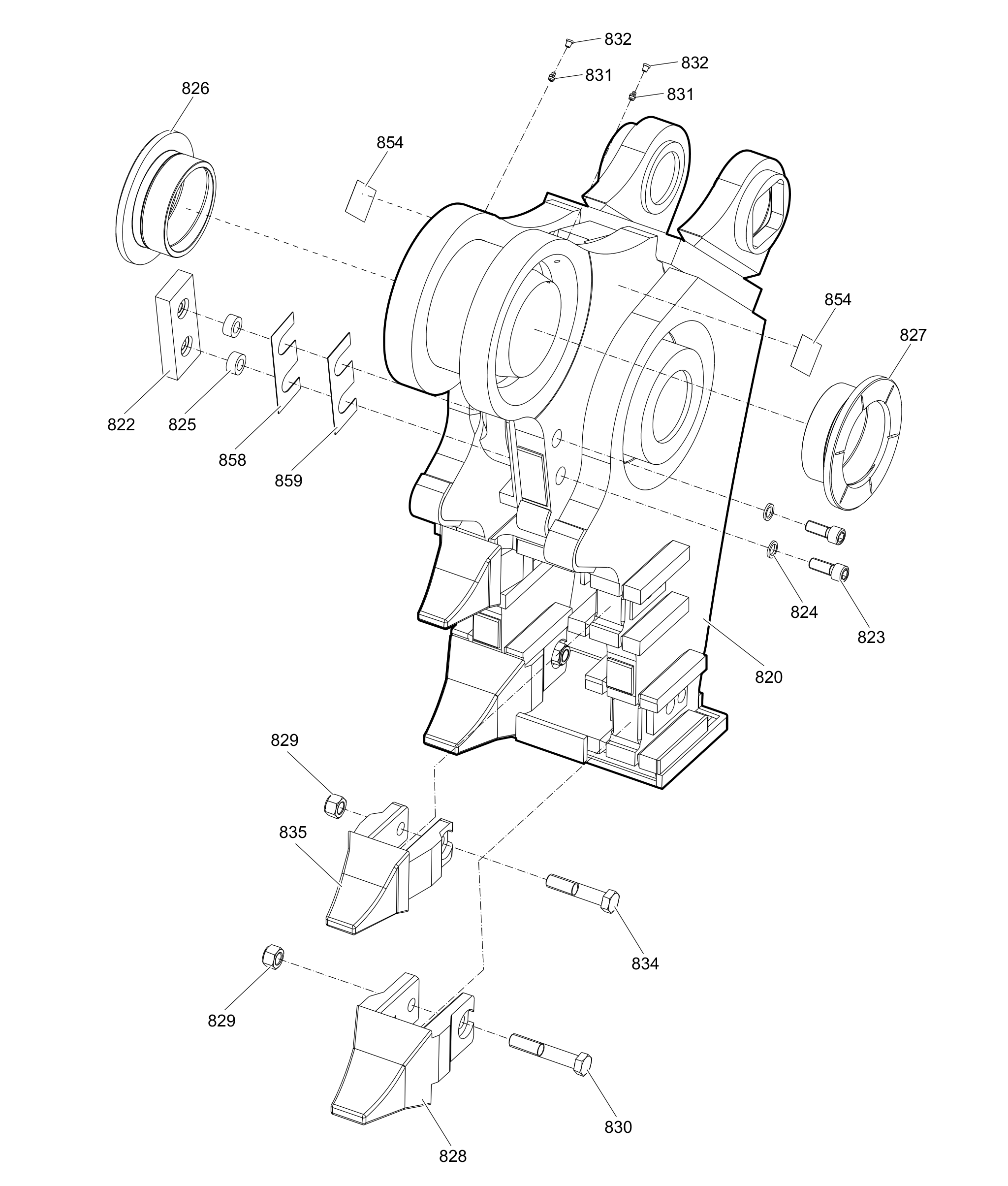

Cutter jaw (double) P

#		Part number	Name	QTY	Remarks	Information
		3363124871	Cutter jaw (double) P	1	with item 822 - 854
		3363086455	CUTTER BLADE	1
		3360106092	ALLEN SCREW	2
		3361850748	LOCK WASHER	2
		3363035107	LOCK RING	2
		3363092471	Bearing bush	1
		3363092469	Bearing bush	1
		3363098963	TIP OF TOOTH	2	with item 829 - 830
		3363098934	HEXAGON NUT	4
		3363083963	HEXAGON HEAD SCREW	2
		3360209834	GREASE NIPPLE	2
		3363087600	CAP	2
		3363123492	HEXAGON HEAD BOLT	2
		3363098968	TIP OF TOOTH	2	with item 829 and 834
		3362268751	LABEL TIGHTENING TORQUE	2	German/English
		3363092403	SHIM	1	0.2 mm (0.01 in.) thick, as required
		3363091026	SHIM	1	1.0 mm (0.04 in.) thick, as required
