Mechanical
Spare Parts

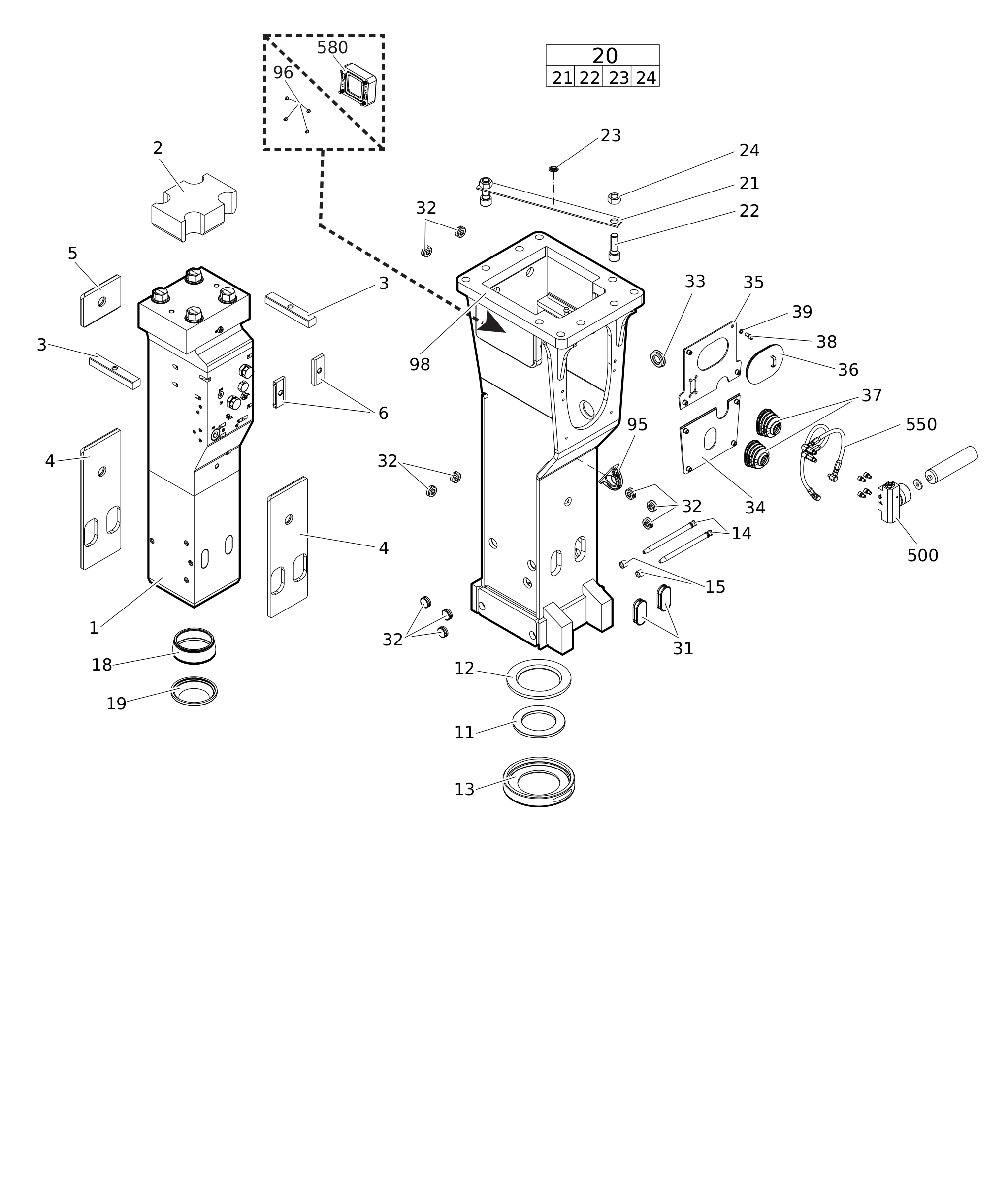

Hydraulic breaker MB 1650 DP
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363120381 | Percussion umit | 1 | see separate chapterNote: When ordering a percussion unit for DustProtector version it is imperative to order additionally the base for wiper (item 18) and the wiper (item 19). | |||
| 3363118181 | Elastic pad | 1 | ||||
| 3361847637 | SHOCK ABSORBER | 2 | ||||
| 3363118296 | GUIDE PLATE | 2 | ||||
| 3363115969 | GUIDE PLATE | 1 | ||||
| 3363118182 | Guide plate | 2 | ||||
| 3363070661 | Floating ring (tribolid) | 1 | steel see chapter Optional parts | |||
| 3363035775 | Counter ring | 1 | ||||
| 3363035777 | Guide ring | 1 | ||||
| 3363069769 | Bolt | 2 | ||||
| 3361854363 | LOCKING BUSH | 2 | ||||
| 3363088659 | Base for wiper | 1 | ||||
| 3363066069 | Wiper | 1 | ||||
| 3363083416 | TRANSPORT SAFETY DEVICE complete | 1 | ||||
| - | TRANSORT SAFETY DEVICE | 1 | ||||
| 3360026883 | ALLEN SCREW | 2 | ||||
| 3363091872 | LABEL TRANSPORT SAFETY DEVICE | 1 | ||||
| 3360103254 | NUT | 2 | ||||
| 3363086011 | PLUG | 2 | ||||
| 3363086015 | PLUG | 10 | ||||
| 3362267893 | PLUG | 1 | ||||
| 3363118184 | Plate | 1 | ||||
| 3363118308 | Plate | 1 | ||||
| 3363092697 | COVER | 1 | ||||
| 3363118186 | BELLOWS | 2 | ||||
| 3360103750 | ALLEN SCREW | 8 | ||||
| 3361850596 | PAIR OF LOCK WASHERS | 8 | ||||
| 3363111994 | LIFTING EYE | 1 | professional welding process necessary | |||
| 3315439145 | PROTECTIVE PLUG HATCON | 4 | only for hydraulic breakers without HATCON | |||
| 3363118366 | Breaker box | 1 | with item 95 and 96 | |||
| 3363067123 | AUTOMATIC LUBRICATION SYSTEM | 1 | HD version see chapter Optional parts | |||
| 3363118178 | Connecting kit for automatic lubrication system | 1 | see separate chapter | |||
| 3315439180 | HATCON | 1 | only for hydraulic breakers with HATCON / see separate chapter |
