Mechanical
Spare Parts

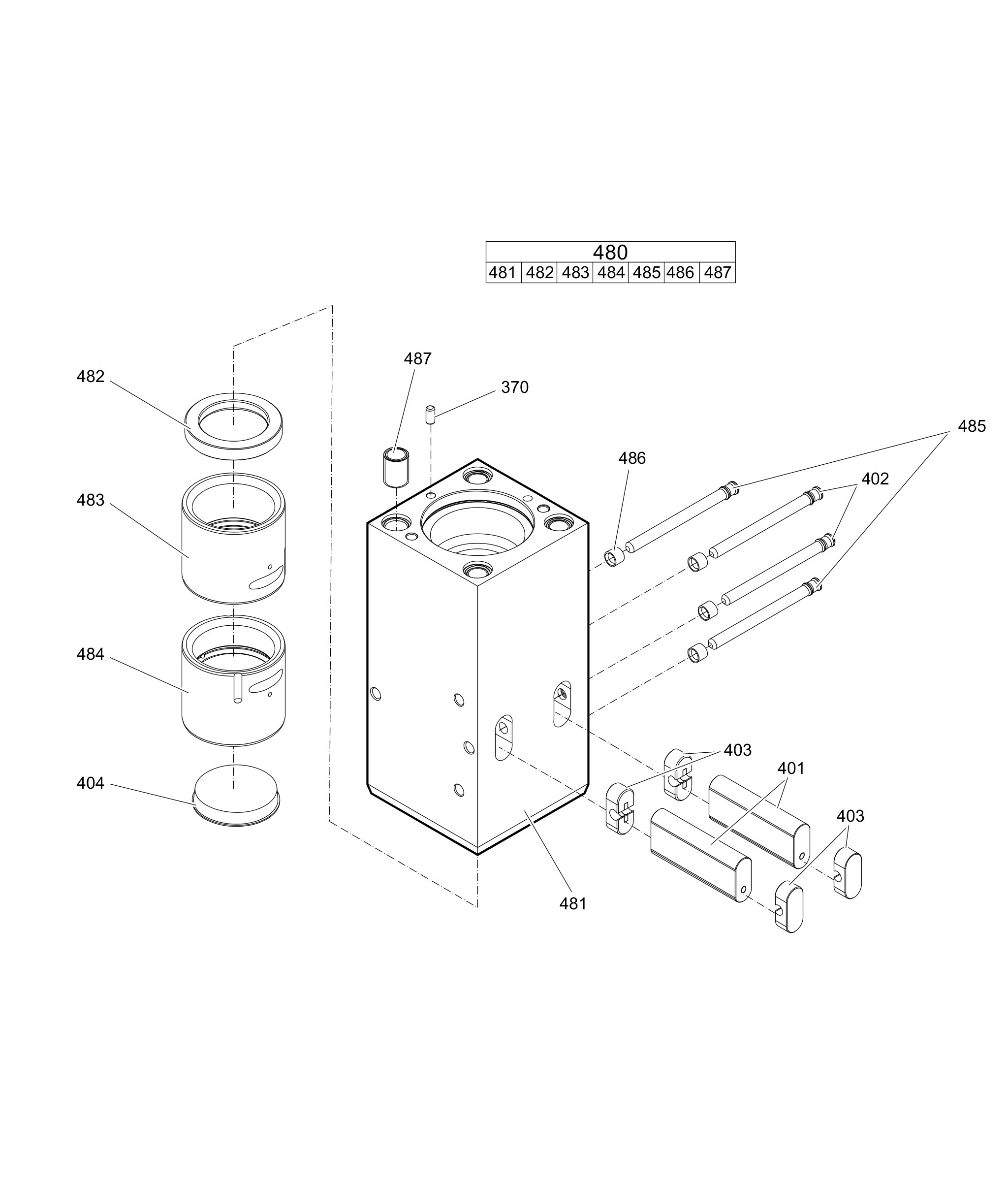

| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3360921179 | Lock pin | 1 | ||||
| 3363120375 | Retainer bar | 2 | ||||
| 3363120384 | Bolt | 2 | ||||
| 3362262925 | Plug | 4 | ||||
| 3363066028 | Protective cap | 1 | ||||
| 3363120415 | Lower breaker part with lower wear bush steel | 1 | Note: When ordering a lower breaker part for DustProtector version it is imperative to order additionally the base for wiper (item 18) and the wiper (item 19). | |||
| 3363120391 | Lower breaker part | 1 | ||||
| 3363069077 | Impact ring | 1 | ||||
| 3363069193 | Wear bush | 1 | ||||
| 3363088667 | Wear bush (steel) | 1 | ||||
| 3363120384 | Bolt | 2 | ||||
| 3361854363 | LOCKING BUSH | 4 | ||||
| 3363031774 | Threaded insert | 4 |
