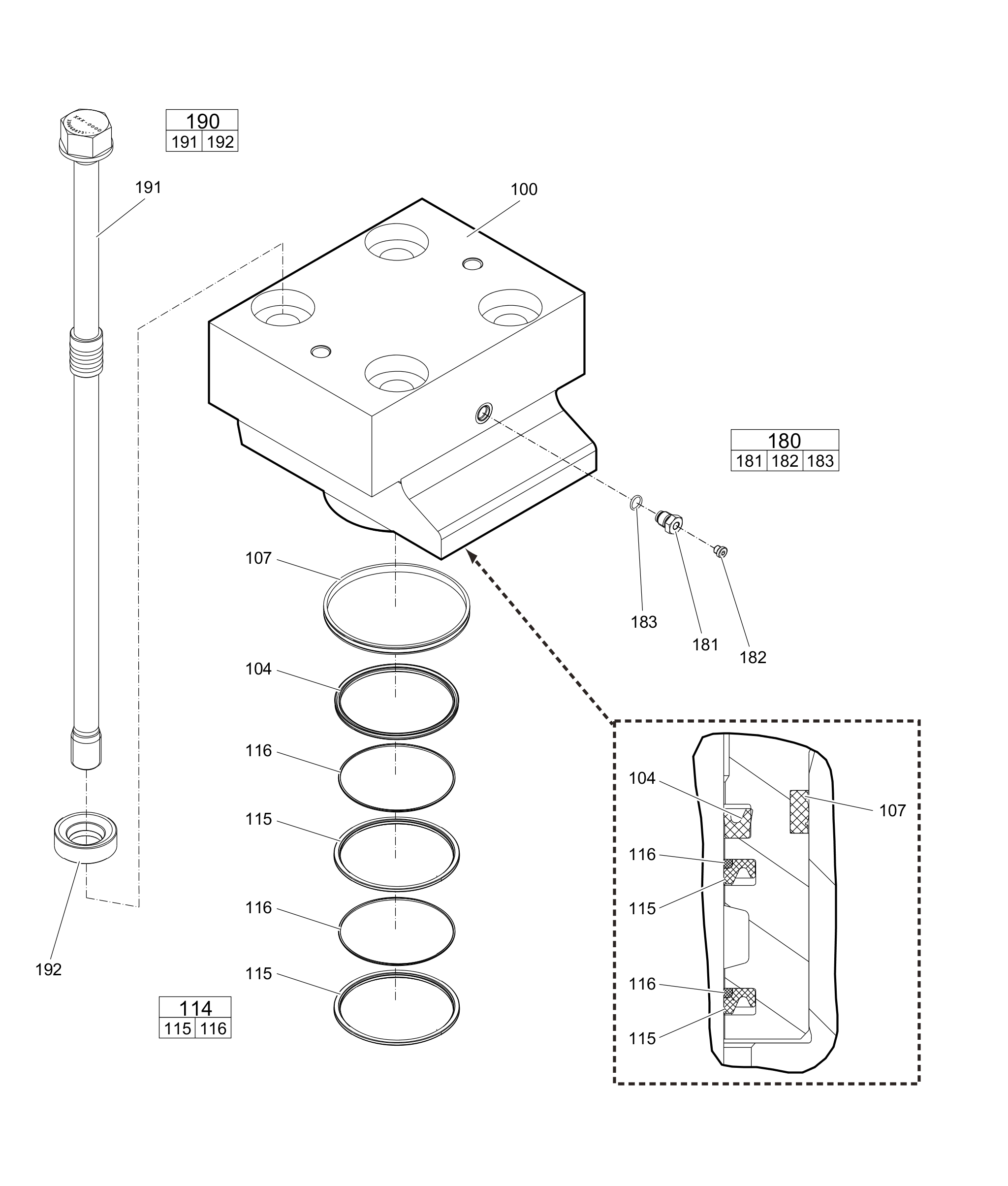

Percussion unit part 1: cylinder cover
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363120411 | Cylinder cover | 1 | ||||
| 3363120383 | Seal | 1 | ||||
| 3363120423 | Seal | 1 | ||||
| 3363120456 | Seal kit | 2 | ||||
| 3363120382 | Seal | 1 | ||||
| 3363120379 | Back-up ring | 1 | ||||
| 3363087286 | FILLING VALVE, complete | 1 | ||||
| 3362264253 | FILLING VALVE | 1 | ||||
| 3360478426 | THREADED PLUG | 1 | ||||
| 3360175125 | O-RING | 1 | ||||
| 3363120418 | Tensioning bolt complete | 4 | ||||
| 3363120397 | Tensioning bolt | 1 | ||||
| 3363097773 | Washer | 1 |
