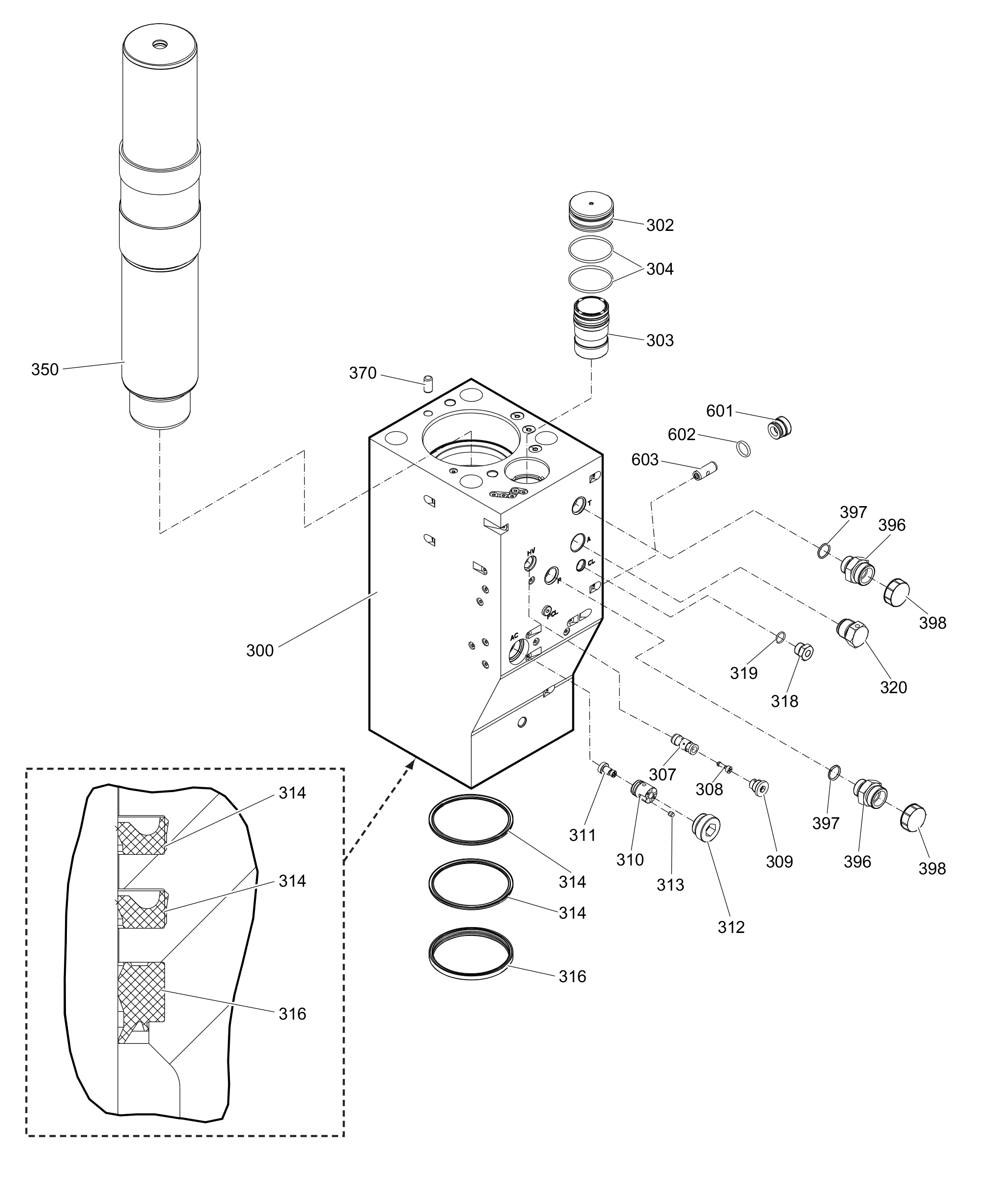

Percussion unit part 2: cylinder
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363120412 | Cylinder | 1 | ||||
| 3363120378 | Cover | 1 | ||||
| 3363120380 | Main control valve | 1 | ||||
| 3360314661 | O-RING | 2 | ||||
| 3363033059 | Valve housing | 1 | ||||
| 3363105305 | Valve piston | 1 | ||||
| 3363033749 | Threaded plug | 1 | ||||
| 3363067803 | Valve bushing | 1 | ||||
| 3363067805 | Valve piston | 1 | ||||
| 3363069501 | Threaded plug | 1 | ||||
| 3363066197 | Pin | 1 | ||||
| 3363122641 | Seal | 2 | ||||
| 3363120394 | Wiper | 1 | ||||
| 3361854657 | CONNECTING SCREW | 1 | ||||
| 3360478171 | O-RING | 1 | ||||
| 3361854511 | NON-RETURN VALVE | 1 | ||||
| 3363120408 | Percussion piston | 1 | ||||
| 3360921179 | Lock pin | 1 | ||||
| 3360995665 | Fitting | 2 | ||||
| 3360314551 | O-ring | 2 | ||||
| 3361353488 | Protective cap | 2 | ||||
| 3363082593 | Plug | 1 | ||||
| 3363083245 | O-RING | 1 | ||||
| 3363082505 | Valve | 1 | StartSelect |
