Mechanical

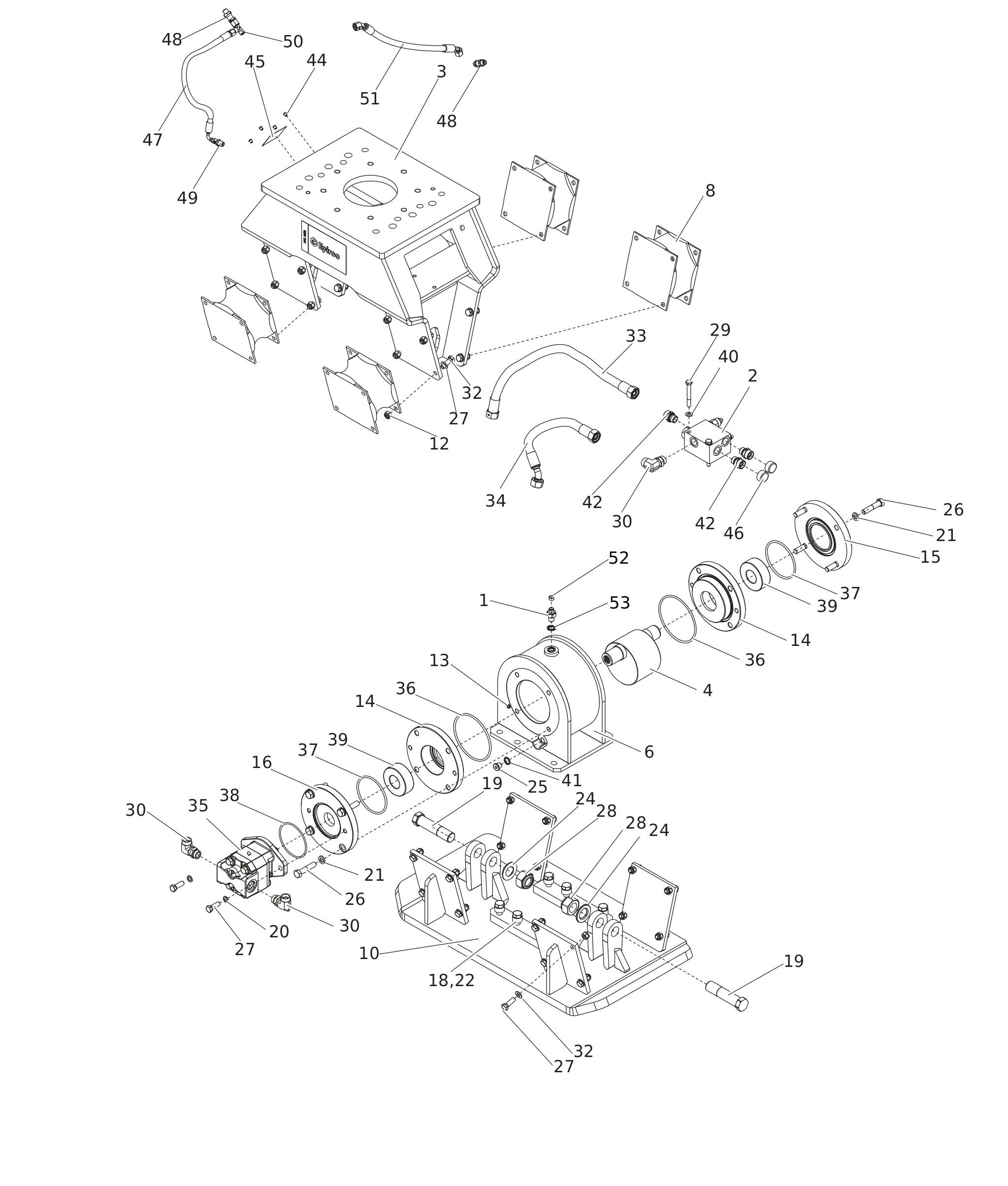

Spare Parts
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3316000036 | VENT VALVE | 1 | ||||
| 3316000073 | VALVE BLOCK, female thread 3/4" - 16 UNF | 1 | ||||
| 3316000108 | OUTER HOUSING | 1 | ||||
| 3376690004 | ROTOR | 1 | ||||
| 3316000160 | ROTOR HOUSING | 1 | ||||
| 3376100755 | RUBBER ISOLATOR | 4 | ||||
| 3376696403 | TAMPER PLATE | 1 | ||||
| 0291111200 | LOCK NUT | 32 | ||||
| 0686612800 | PLUG | 1 | ||||
| 3376696012 | BEARING RETAINER | 2 | ||||
| 3376696013 | BEARING COVER | 1 | ||||
| 3363123142 | BEARING COVER | 1 | ||||
| 3316000063 | SPRING WASHER | 6 | ||||
| 3376696143 | AXLE | 2 | ||||
| 3361850596 | PAIR OF LOCK WASHERS | 2 | ||||
| 0333217422 | SPRING WASHER | 8 | ||||
| 0147147803 | SCREW | 6 | ||||
| 0300027486 | WASHER M30 | 2 | ||||
| 0686371626 | PLUG | 1 | ||||
| 0147144503 | SCREW, HEX HEAD | 8 | ||||
| 0147140203 | SCREW, HEX HEAD | 34 | ||||
| 0291112000 | LOCK NUT | 2 | ||||
| 0147137303 | SCREW, HEX HEAD | 2 | ||||
| 3316000114 | ELBOW | 3 | ||||
| 0301235800 | FLAT WASHER | 32 | ||||
| 3316000136 | HYDRAULIC HOSE | 1 | ||||
| 3316000137 | HYDRAULIC HOSE | 1 | ||||
| 3316000082 | HYDRAULIC MOTOR | 1 | ||||
| 0663211340 | O-RING | 2 | ||||
| 0663212018 | O-RING | 2 | ||||
| 3360314375 | O-RING | 1 | ||||
| 0506010022 | BEARING | 2 | ||||
| 0301234400 | PLAIN WASHER | 2 | ||||
| 3377016375 | SEAL-RING - Bounded seal - Oil outlet 3/8 USS | 1 | ||||
| 0580001846 | PIPE COUPLING | 3 | ||||
| 3315439145 | PROTECTIVE PLUG HATCON | 4 | ||||
| 3315439101 | HATCON LABEL | 1 | ||||
| 3361353486 | COVER | 2 | ||||
| 3316000226 | HYDRAULIC HOSE | 1 | part of drainline kit HC 350 non rotating (see page service, repair and wear part kits) | |||
| 5750535329 | BULKHEAD UNION | 2 | part of drainline kit HC 350 non rotating (see page service, repair and wear part kits) | |||
| 3376696146 | ADAPTER | 1 | part of drainline kit HC 350 non rotating (see page service, repair and wear part kits) | |||
| 0580400520 | T-ADAPTER | 1 | part of drainline kit HC 350 non rotating (see page service, repair and wear part kits) | |||
| 3316000227 | HYDRAULIC HOSE | 1 | part of drainline kit HC 350 non rotating (see page service, repair and wear part kits) | |||
| 3315280800 | VALVE RUBBER | 1 | ||||
| 6060008101 | SEAL WASHER | 1 |
