Mechanical
Spare Parts

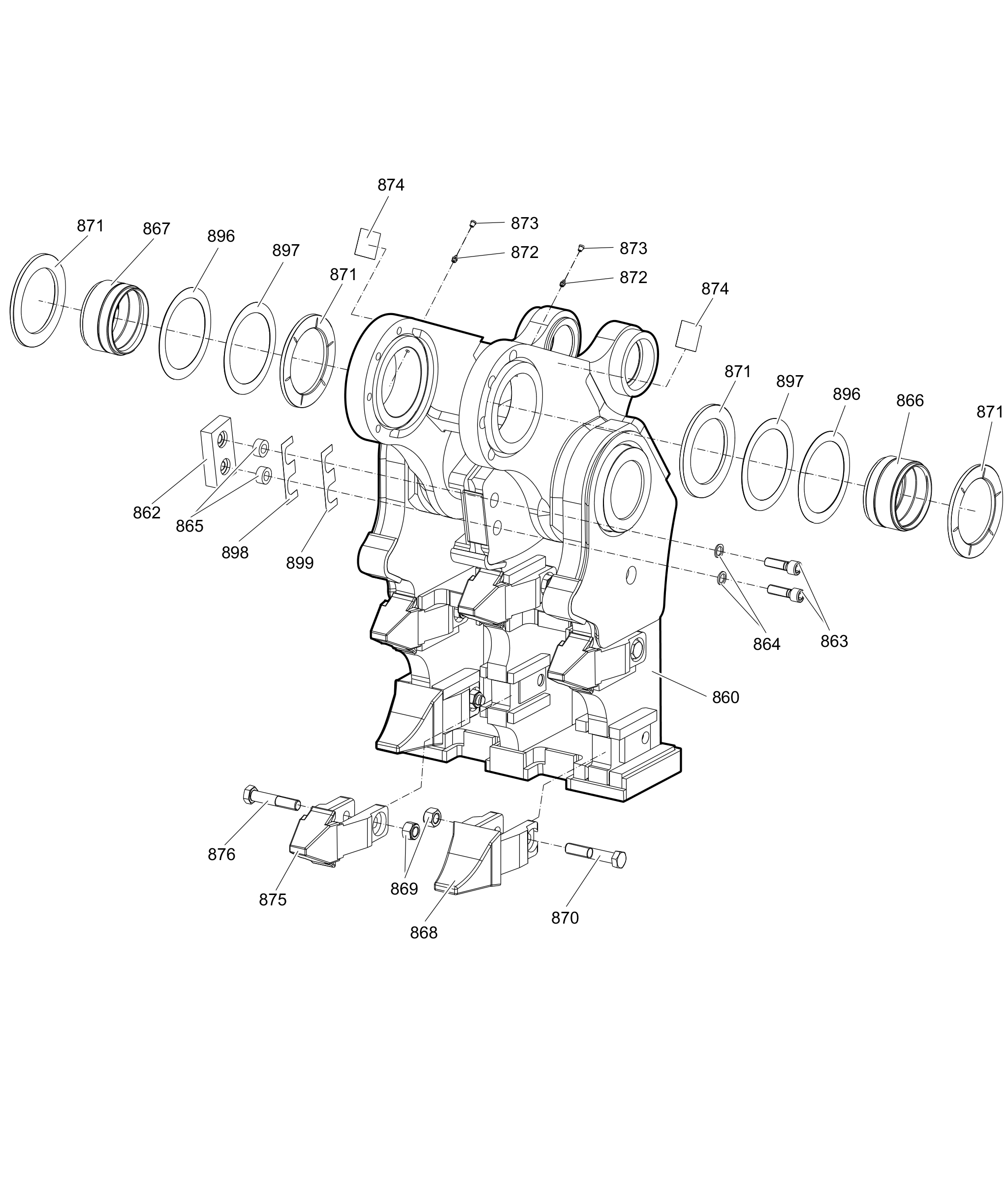

Cutter jaw (triple) P
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363122643 | Cutter jaw (triple) P | 1 | ||||
| 3363122359 | CUTTER BLADE | 1 | ||||
| 3362328481 | Allen screw | 2 | ||||
| 3361850748 | LOCK WASHER | 2 | ||||
| 3363035107 | LOCK RING | 2 | ||||
| 3363120349 | Bearing bush | 1 | ||||
| 3363120345 | Bearing bush | 1 | ||||
| 3363098968 | TIP OF TOOTH | 2 | ||||
| 3363098934 | HEXAGON NUT | 6 | ||||
| 3363123492 | HEXAGON HEAD BOLT | 2 | ||||
| 3363120350 | Wear ring | 4 | ||||
| 3360209834 | GREASE NIPPLE | 2 | ||||
| 3363087600 | CAP | 2 | ||||
| 3362268751 | LABEL TIGHTENING TORQUE | 2 | ||||
| 3363124269 | Tip of tooth | 4 | ||||
| 3363083962 | Hexagon head bolt | 4 | ||||
| 3363120533 | Spacer ring | 2 | ||||
| 3363120532 | Spacer ring | 2 | 1.0 mm (0.04 in.) thick, as required | |||
| 3363122330 | SHIM | 1 | ||||
| 3363122331 | SHIM | 1 | 1.0 mm (0.04 in.) thick, as required |
