Mechanical
Spare Parts

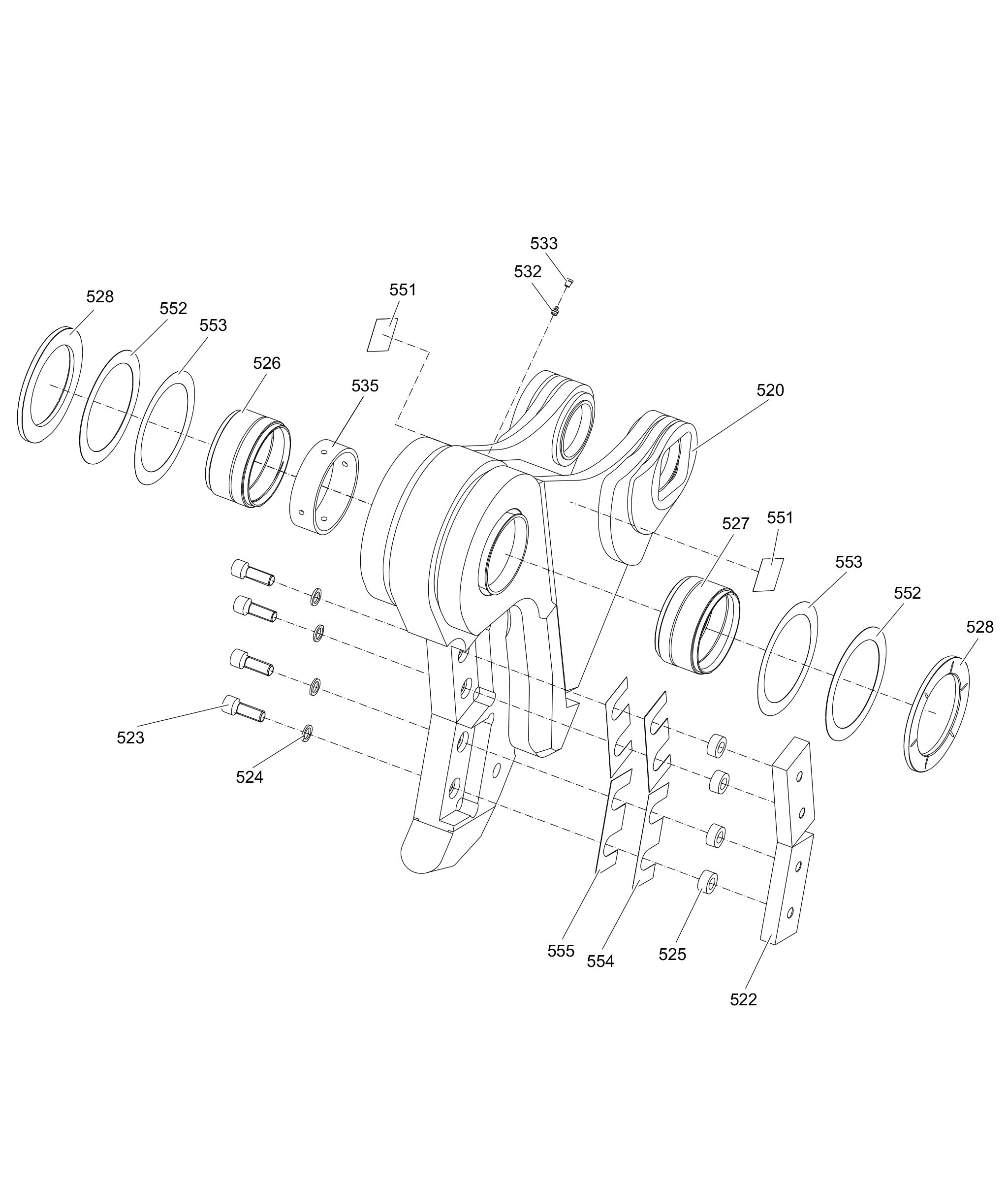

| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363121369 | Cutter jaw (single) S | 1 | with item 522 - 551B | German/EnglishC | 0.2 mm (0.01 in.) thick, as requiredD | 1.0 mm (0.04 in.) thick, as required | |||
| 3363086455 | CUTTER BLADE | 2 | ||||
| 3362328057 | ALLEN SCREW | 4 | ||||
| 3361850748 | LOCK WASHER | 4 | ||||
| 3363035107 | LOCK RING | 4 | ||||
| 3363120349 | Bearing bush | 1 | ||||
| 3363120345 | Bearing bush | 1 | ||||
| 3363120350 | Wear ring | 2 | ||||
| 3360209834 | GREASE NIPPLE | 1 | ||||
| 3363087600 | CAP | 1 | ||||
| 3363122383 | Spacer ring | 1 | ||||
| 3362268751 | LABEL TIGHTENING TORQUE | 2 | ||||
| 3363120533 | Spacer ring | 2 | ||||
| 3363120532 | Spacer ring | 2 | ||||
| 3363092403 | SHIM | 2 | ||||
| 3363091026 | SHIM | 2 |
