Spare Parts

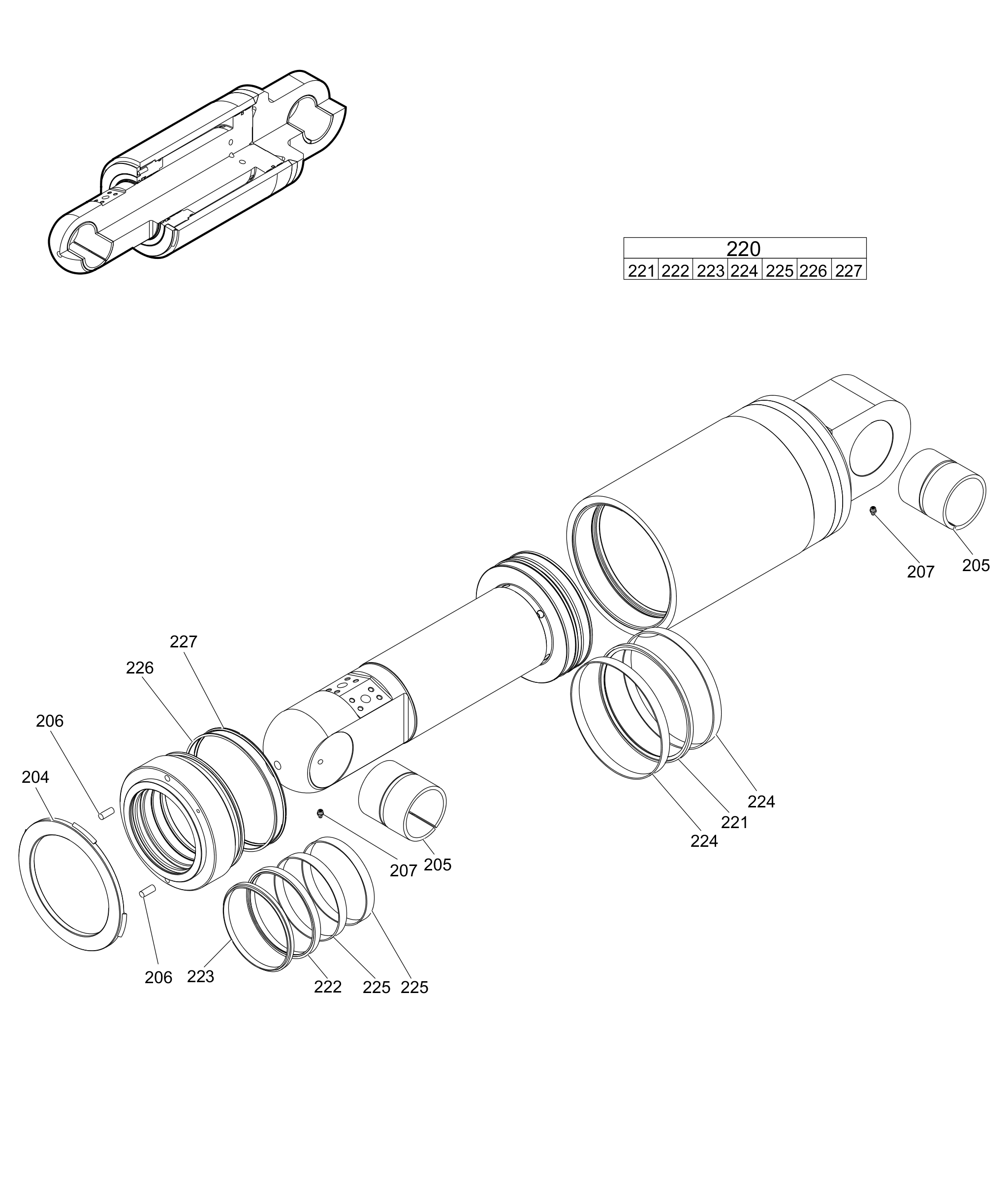

Hydraulic cylinder

#		Part number	Name	QTY	Remarks	Information
		3363120641	Hydraulic cylinder complete	1	with item 204 - 227
		3363121115	Ring	1
		3363121116	Bearing bush	2
		3363121117	Spring pin	1
		3360209834	GREASE NIPPLE	2
		3363121119	Seal kit (Hydraulic cylinder)	1
		3363121120	Seal	1
		3363121121	Seal	1
		3363121122	Wiper	1
		3363121123	Guide ring	2
		3363121124	Guide ring	2
		3363121125	Back-up ring	1
		-	O-ring	1
