Mechanical
Spare Parts

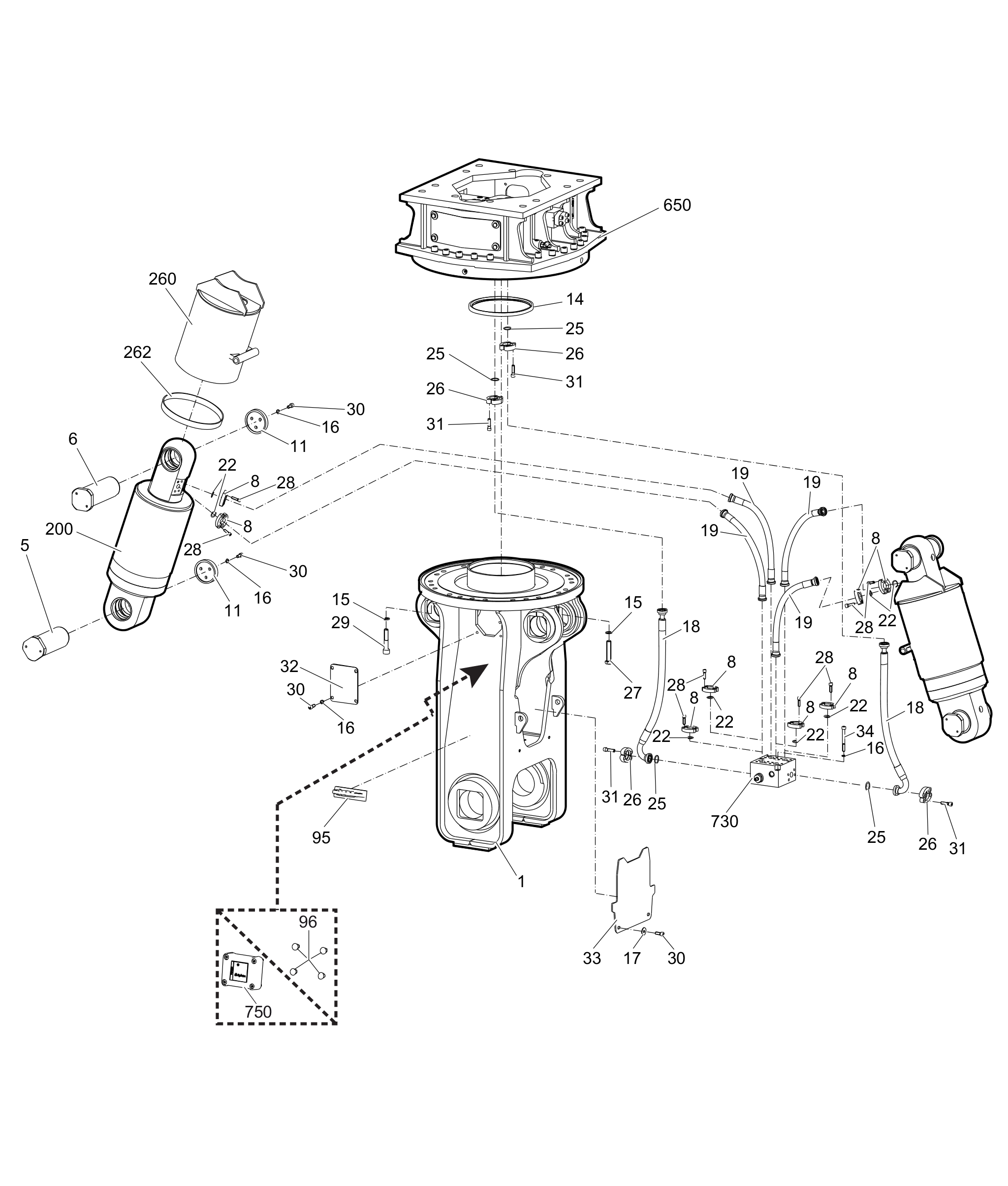

| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363120428 | Housing | 1 | with item 95 | |||
| 3363120438 | Bolt | 2 | ||||
| 3363120440 | Bolt | 2 | ||||
| 3360995664 | FLANGE HALF | 16 | ||||
| 3363120451 | CAP | 4 | ||||
| 3363070083 | SEAL | 1 | ||||
| 3361850748 | LOCK WASHER | 24 | ||||
| 3361850596 | PAIR OF LOCK WASHERS | 23 | ||||
| 3362328082 | WASHER | 4 | ||||
| 3363122795 | Hydraulic hose | 2 | ||||
| 3363122608 | Hydraulic hose | 4 | ||||
| 3360314549 | O-RING | 8 | ||||
| 3360314370 | O-RING | 4 | ||||
| 3361853208 | FLANGE HALF | 8 | ||||
| 3363120597 | Hexagon head screw | 4 | ||||
| 3360026393 | ALLEN SCREW | 32 | ||||
| 3360106100 | ALLEN SCREW | 20 | ||||
| 3360103751 | ALLEN SCREW | 24 | ||||
| 3360026513 | ALLEN SCREW | 16 | ||||
| 3362262371 | CAP | 2 | ||||
| 3363120635 | Plate | 2 | ||||
| 3362328078 | Allen screw | 3 | ||||
| 3363111995 | LIFTING EYE | 2 | professional welding process necessary | |||
| 3315439145 | PROTECTIVE PLUG HATCON | 4 | only for hydxraulic demolition cutters without HATCON | |||
| 3363120641 | Hydraulic cylinder complete | 2 | see separate chapter | |||
| 3363120450 | Protective piston rod sheath complete | 2 | with item 262 | |||
| 3363088873 | GUIDE STRIP | 2 | ||||
| 3363104175 | Upper part complete | 1 | see separate chapter | |||
| 3363103689 | RAPID MOVEMENT VALVE | 1 | ||||
| 3315439180 | HATCON | 1 | only for hydraulic demolition cutters with HATCON / see separate chapter |
