Spare Parts

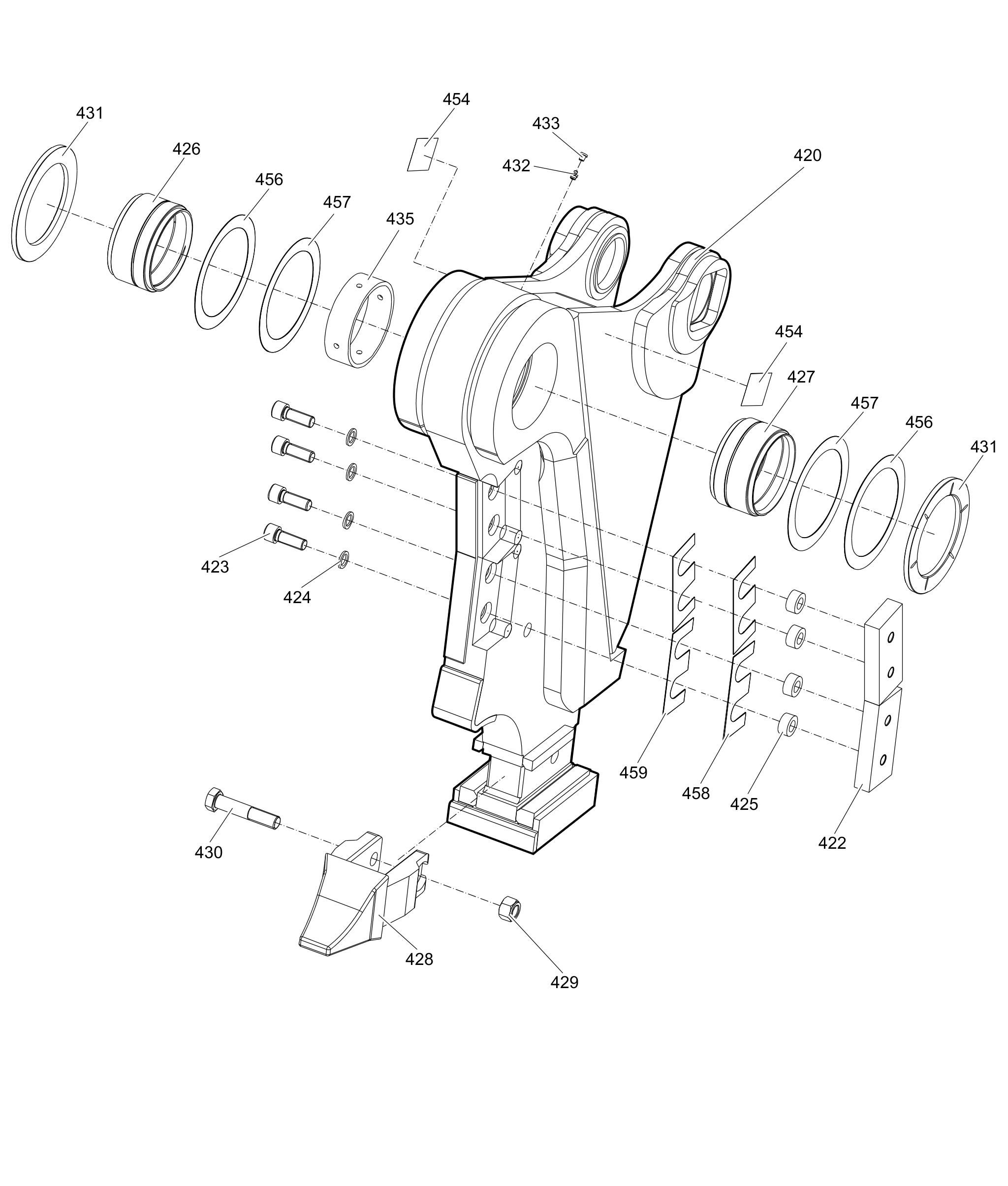

| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363120519 | Cutter jaw (single) U | 1 | with item 422 - 454 | |||
| 3363086479 | CUTTER BLADE | 2 | ||||
| 3362328057 | ALLEN SCREW | 4 | ||||
| 3361850748 | LOCK WASHER | 4 | ||||
| 3363035107 | LOCK RING | 4 | ||||
| 3363120349 | Bearing bush | 1 | observe mounting direction, lubrication groove inwards | |||
| 3363120345 | Bearing bush | 1 | observe mounting direction, lubrication groove inwards | |||
| 3363098968 | TIP OF TOOTH | 1 | with item 429 and 430 | |||
| 3363098934 | HEXAGON NUT | 1 | ||||
| 3363123492 | HEXAGON HEAD BOLT | 1 | ||||
| 3363120350 | Wear ring | 2 | ||||
| 3360209834 | GREASE NIPPLE | 1 | ||||
| 3363087600 | CAP | 1 | ||||
| 3363122383 | Spacer ring | 1 | ||||
| 3362268751 | LABEL TIGHTENING TORQUE | 1 | German/English | |||
| 3363120533 | Spacer ring | 2 | 0.2 mm (0.01 in.) thick, as required | |||
| 3363120532 | Spacer ring | 2 | 1.0 mm (0.04 in.) thick, as required | |||
| 3363088149 | SHIM | 2 | 0.2 mm (0.01 in.) thick, as required | |||
| 3363087607 | SHIM | 2 | 1.0 mm (0.04 in.) thick, as required |
