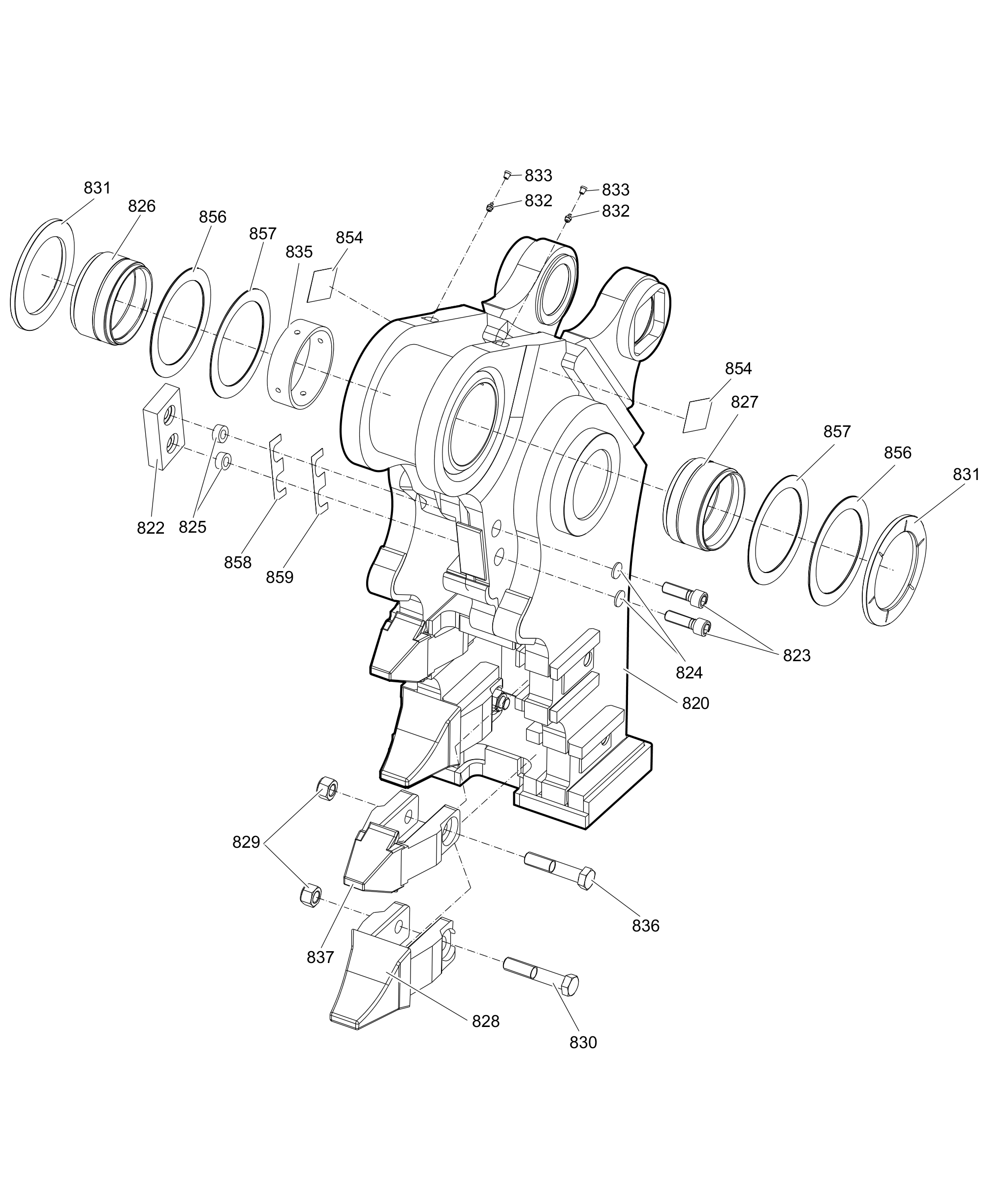

Cutter jaw (double) P

Part number	Name	QTY	Remarks
3363122644	Cutter jaw (double) P	1	with item 822 - 854
3363122359	CUTTER BLADE	1
3362328481	Allen screw	2
3361850748	LOCK WASHER	2
3363035107	LOCK RING	2
3363120349	Bearing bush	1	observe mounting direction, lubrication groove inwards
3363120345	Bearing bush	1	observe mounting direction, lubrication groove inwards
3363098968	TIP OF TOOTH	2	with item 829 - 830
3363098934	HEXAGON NUT	4
3363123492	HEXAGON HEAD BOLT	2
3363120350	Wear ring	2
3360209834	GREASE NIPPLE	2
3363087600	CAP	2
3363122383	Spacer ring	1
3363083962	Hexagon head bolt	2
3363124269	Tip of tooth	2	with item 829 and 836
3362268751	LABEL TIGHTENING TORQUE	2	German/English
3363120533	Spacer ring	2	0.2 mm (0.01 in.) thick, as required
3363120532	Spacer ring	2	1.0 mm (0.04 in.) thick, as required
3363122330	SHIM	1	0.2 mm (0.01 in.) thick, as required
3363122331	SHIM	1	1.0 mm (0.04 in.) thick, as required
