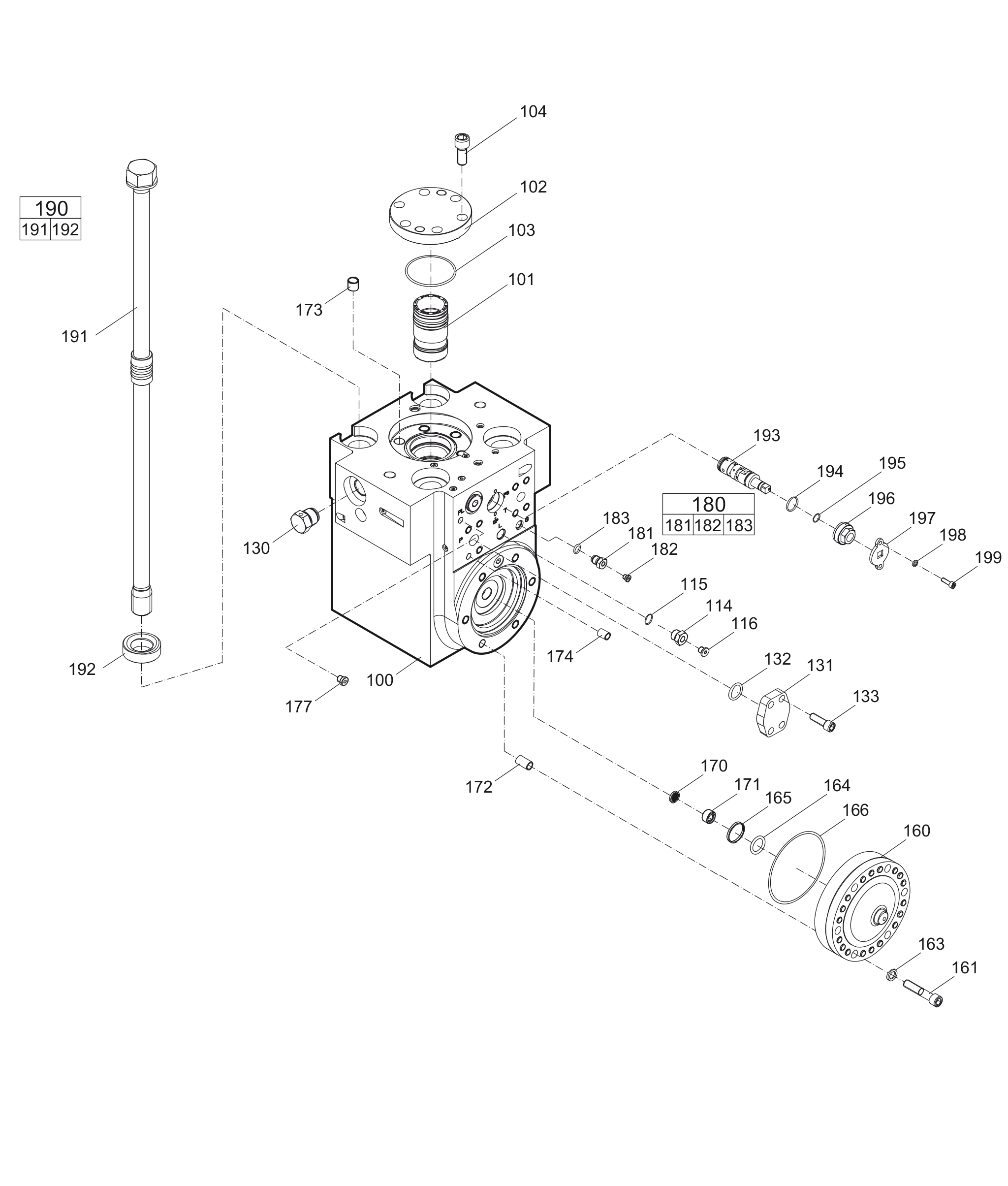

Spare Parts
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363112739 | Cylinder cover | 1 | with item 114 - 116 and 170 - 177 | |||
| 3363035439 | Main control valve | 1 | ||||
| 3361331555 | COVER | 1 | ||||
| 3360314375 | O-RING | 1 | ||||
| 3360103776 | ALLEN SCREW | 6 | ||||
| 3361854657 | CONNECTING SCREW | 1 | ||||
| 3360478171 | O-RING | 1 | ||||
| 3360478439 | THREADED PLUG | 1 | ||||
| 3361854511 | NON-RETURN VALVE | 1 | ||||
| 3363034041 | Blind flange | 2 | ||||
| 3360314372 | O-RING | 2 | ||||
| 3363034274 | ALLEN SCREW | 8 | ||||
| 3363069585 | HP-accumulator | 1 | ||||
| 3363070490 | ALLEN SCREW | 6 | ||||
| 3361333703 | LOCK WASHER | 6 | ||||
| 3361031912 | O-ring | 1 | ||||
| 3361850529 | Back-up ring | 1 | ||||
| 3361031990 | O-ring | 1 | ||||
| 3361844113 | STRAINER DISK | 1 | ||||
| 3361844115 | THREADED PLUG | 1 | ||||
| 3361031989 | Threaded insert | 6 | ||||
| 3361031529 | THREADED INSERT | 6 | ||||
| 3361031946 | Threaded insert | 8 | ||||
| 3363066963 | PLUG | 1 | ||||
| 3363087286 | FILLING VALVE, complete | 1 | ||||
| 3362264253 | FILLING VALVE | 1 | ||||
| 3360478426 | THREADED PLUG | 1 | ||||
| 3360175125 | O-RING | 1 | ||||
| 3363106905 | Tensioning bolt complete | 4 | ||||
| 3363109215 | Tensioning bolt | 1 | ||||
| 3363093649 | WASHER | 1 | ||||
| 3363113244 | Valve | 1 | Stroke control | |||
| 3363112659 | O-ring | 1 | ||||
| 3360314656 | O-ring | 1 | ||||
| 3363113246 | Threaded plug | 1 | ||||
| 3363119005 | Plate | 1 | ||||
| 3361850743 | PAIR OF LOCK WASHERS | 2 | ||||
| 3360103735 | Allen screw | 2 |
