Mechanical

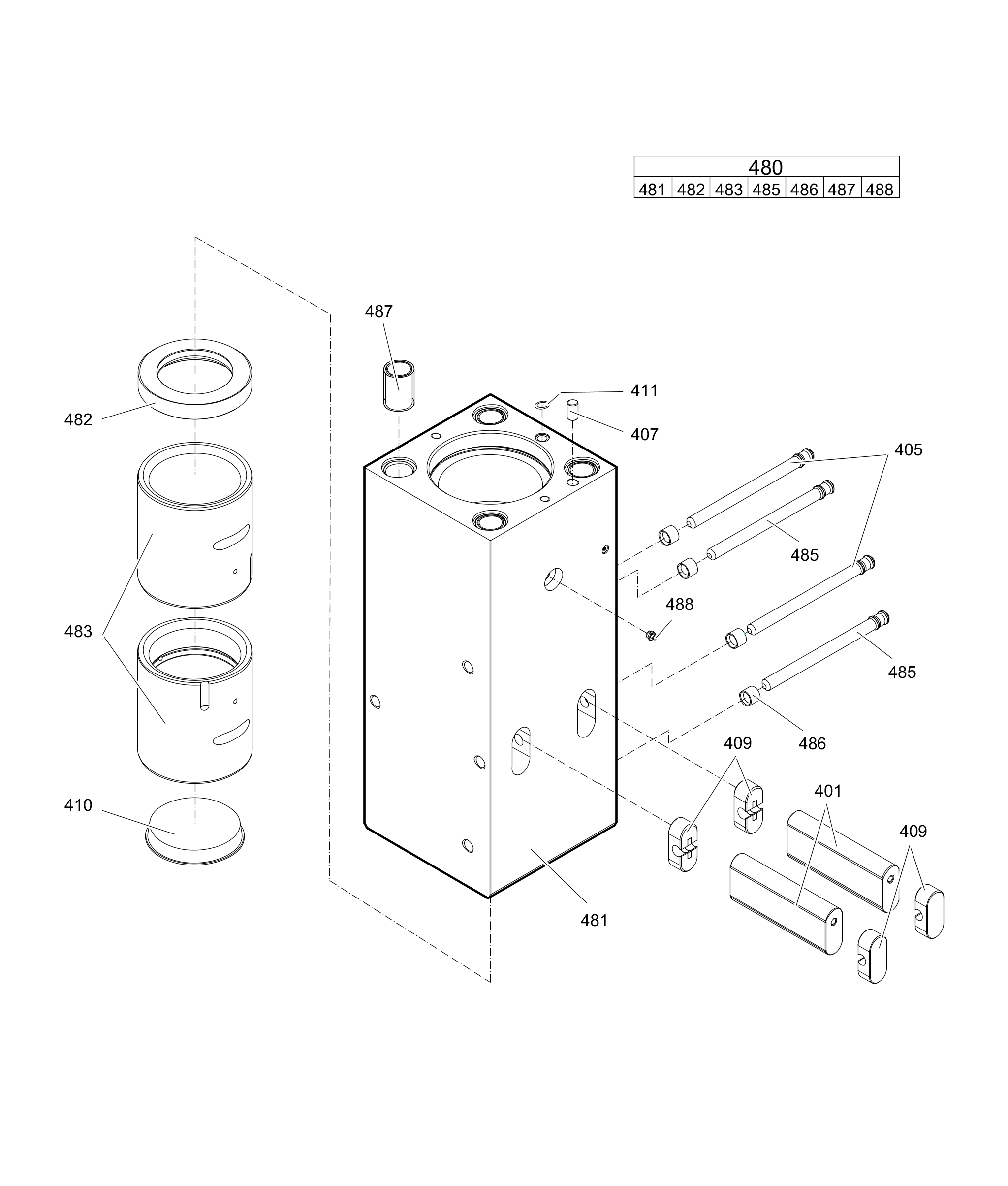

Spare Parts
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3360981927 | Retainer bar | 2 | ||||
| 3361854347 | Bolt | 2 | ||||
| 3362261705 | Lock pin | 1 | ||||
| 3362262925 | Plug | 4 | ||||
| 3360995340 | Protective cap | 1 | ||||
| 3360478097 | O-RING | 1 | ||||
| 3363106627 | Lower breaker part complete | 1 | ||||
| - | Lower breaker part | 1 | ||||
| 3363069079 | Impact ring | 1 | ||||
| 3363105553 | Wear bush | 2 | ||||
| 3361854347 | Bolt | 2 | ||||
| 3361854363 | LOCKING BUSH | 4 | ||||
| 3363085379 | THREADED INSERT | 4 | ||||
| 3360433774 | GREASE NIPPLE | 1 |
