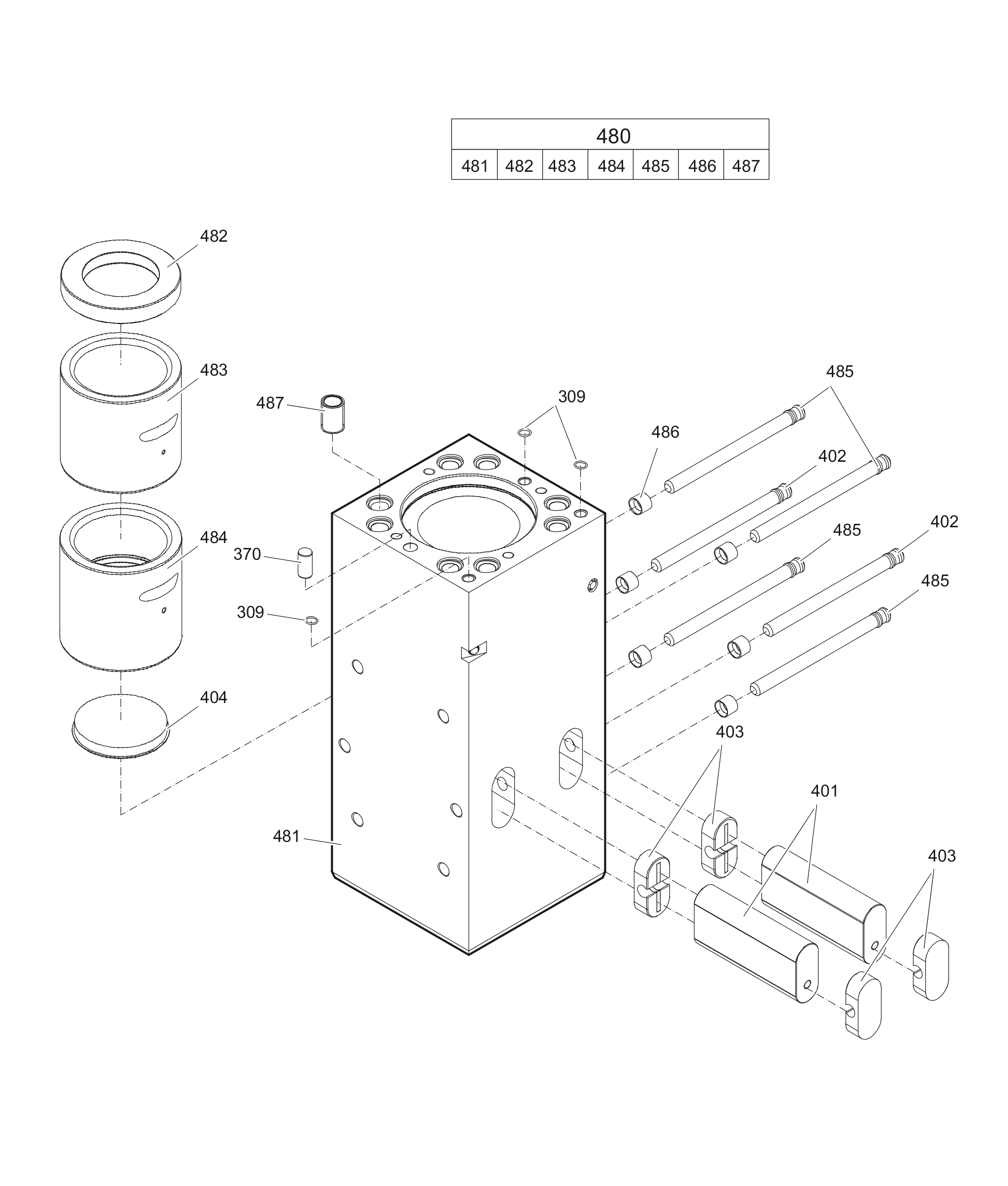

Percussion unit part 3: lower breaker part (steel)
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3360314453 | O-RING | 3 | ||||
| 3360106818 | LOCK PIN | 1 | ||||
| 3363088623 | RETAINER BAR | 2 | ||||
| 3363088621 | BOLT | 2 | ||||
| 3362260435 | PLUG | 4 | ||||
| 3363085697 | PROTECTIVE CAP | 1 | ||||
| 3363089501 | LOWER BREAKER PART, complete with lower wear bush steel | 1 | Note: When ordering a lower breaker part for DustProtector version it is imperative to order additionally the base for wiper (item 18) and the wiper (item 19). | |||
| - | LOWER BREAKER PART | 1 | ||||
| 3363088615 | IMPACT RING | 1 | ||||
| 3363088617 | WEAR BUSH | 1 | ||||
| 3363088647 | WEAR BUSH (steel) | 1 | ||||
| 3363088621 | BOLT | 4 | ||||
| 3362260433 | LOCKING BUSH | 6 | ||||
| 3363085379 | THREADED INSERT | 8 |
