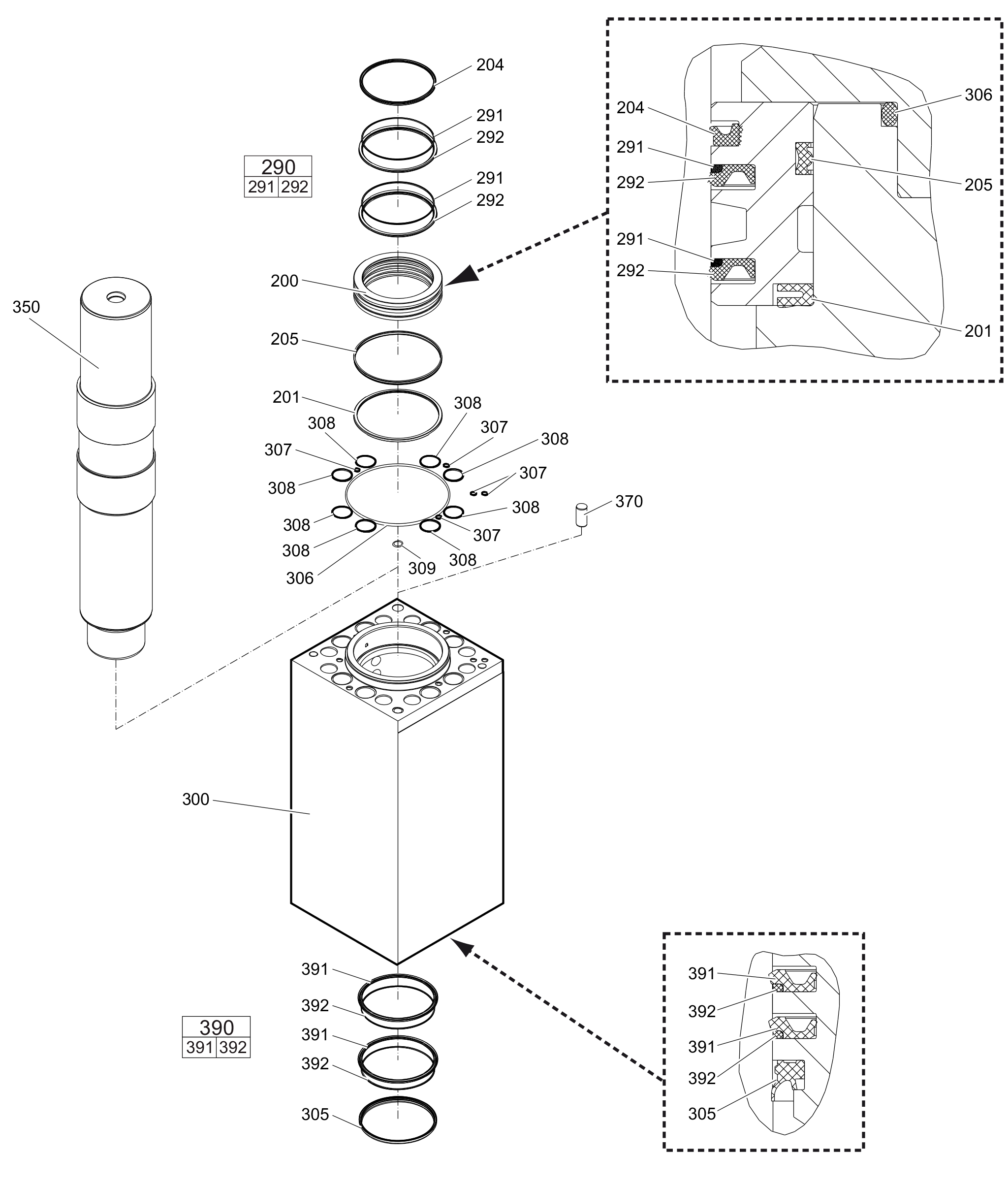

Percussion unit part 2: cylinder
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363088613 | SEAL BUSH | 1 | ||||
| 3363097797 | RING | 1 | ||||
| 3363103418 | SEAL | 1 | ||||
| 3363098137 | SEAL | 1 | ||||
| 3363087592 | SEAL KIT | 2 | ||||
| - | BACK-UP RING | 1 | ||||
| - | SEAL | 1 | ||||
| 3363121095 | CYLINDER | 1 | ||||
| 3363087711 | WIPER | 1 | ||||
| 3361031988 | O-RING | 1 | ||||
| 3362267583 | SEAL | 7 | ||||
| 3362267590 | SEAL | 8 | ||||
| 3360314453 | O-RING | 1 | ||||
| 3363087573 | PERCUSSION PISTON | 1 | ||||
| 3360106818 | LOCK PIN | 1 | ||||
| 3363087593 | SEAL KIT | 2 | ||||
| - | SEAL | 1 | ||||
| - | BACK-UP RING | 1 |
