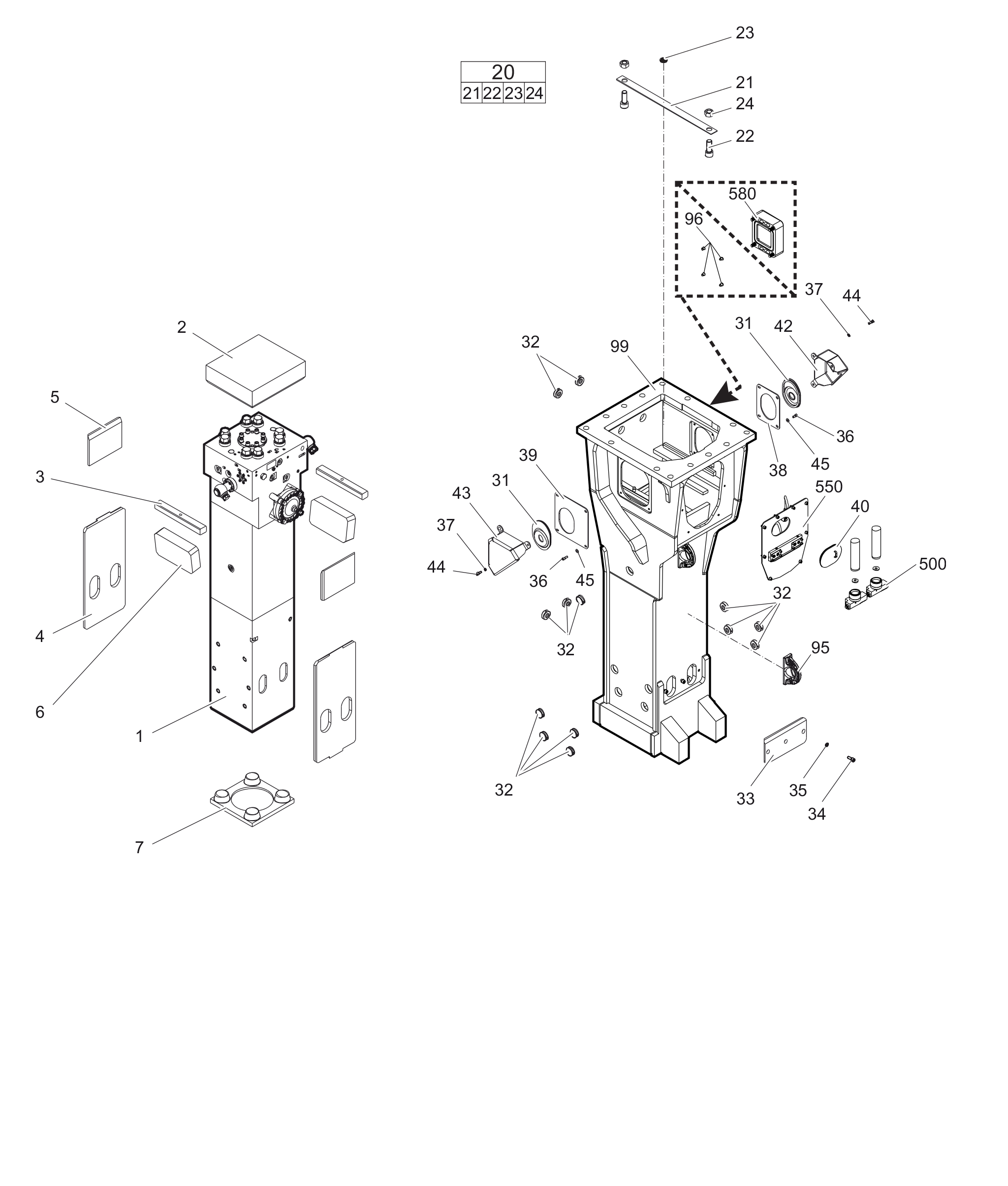

Hydraulic breaker HB 5800
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| - | PERCUSSION UNIT | 1 | see separate chapterB | professional welding process necessary | |||
| 3363086037 | ELASTIC PAD | 1 | ||||
| 3363086039 | SHOCK ABSORBER | 2 | ||||
| 3363086041 | GUIDE PLATE | 2 | ||||
| 3362265215 | GUIDE PLATE | 2 | ||||
| 3362262667 | GUIDE PLATE | 2 | ||||
| 3363093385 | PLATE | 1 | ||||
| 3363087584 | TRANSPORT SAFETY DEVICE, complete | 1 | ||||
| - | TRANSPORT SAFETY DEVICE | 1 | ||||
| 3360114151 | ALLEN SCREW | 2 | ||||
| 3363091872 | LABEL TRANSPORT SAFETY DEVICE | 1 | ||||
| 3360103255 | NUT | 2 | ||||
| 3363031181 | COVER | 2 | ||||
| 3363086017 | PLUG | 13 | ||||
| 3363098835 | PLATE | 1 | ||||
| 3360103768 | ALLEN SCREW | 3 | ||||
| 3361333703 | LOCK WASHER | 3 | ||||
| 3360103750 | ALLEN SCREW | 2 | ||||
| 3361850596 | PAIR OF LOCK WASHERS | 6 | ||||
| 3363098838 | PLATE | 1 | ||||
| 3363110417 | PLATE | 1 | ||||
| 3363092697 | COVER | 1 | ||||
| 3363111462 | SWIVEL JOINT COVER | 1 | ||||
| 3363111696 | SWIVEL JOINT COVER | 1 | ||||
| 3360103751 | ALLEN SCREW | 6 | ||||
| 3363111296 | PAIR OF LOCK WASHERS | 2 | ||||
| 3363111996 | LIFTING EYE | 2 | ||||
| 3315439145 | PROTECTIVE PLUG HATCON | 4 | only for hydraulic breakers without HATCON | |||
| 3363119775 | BREAKER BOX | 1 | with item 95 and 96 | |||
| 3363067123 | AUTOMATIC LUBRICATION SYSTEM | 2 | ||||
| 3363119768 | CONNECTING KIT for automatic lubrication system | 1 | see separate chapterB | professional welding process necessary | |||
| 3315439180 | HATCON | 1 | only for hydraulic breakers with HATCON / see separate chapter |
