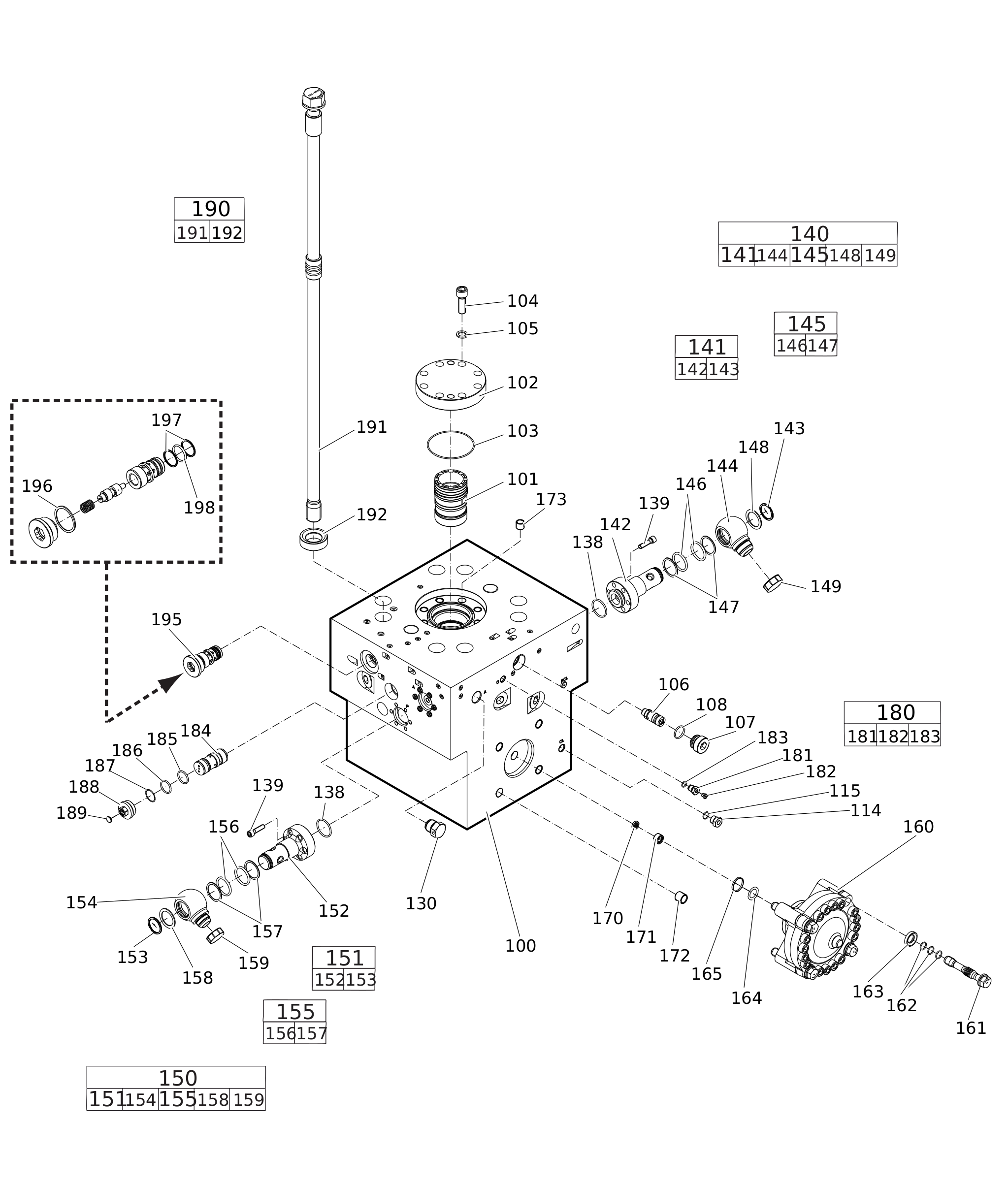

Percussion unit part 1: cylinder cover
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363121075 | Cylinder cover | 1 | ||||
| 3363088633 | Main control valve | 1 | ||||
| 3363086515 | COVER | 1 | ||||
| 3360314376 | O-RING | 1 | ||||
| 3360026784 | SCREW | 8 | ||||
| 3361850748 | PAIR OF LOCK WASHERS | 8 | ||||
| 3363035453 | VALVE | 1 | ||||
| 3363035425 | THREADED PLUG | 1 | ||||
| 3360314370 | O-RING | 1 | ||||
| 3361854657 | CONNECTING SCREW | 1 | ||||
| 3360478171 | O-RING | 1 | ||||
| 3361854511 | NON-RETURN VALVE | 1 | ||||
| 3360314373 | O-RING | 2 | ||||
| 3360026513 | ALLEN SCREW | 12 | ||||
| 3363116889 | SWIVEL JOINT complete | 1 | ||||
| 3363116887 | ADAPTER complete | 1 | ||||
| 3363116887 | ADAPTER complete | 1 | ||||
| - | ADAPTER | 1 | ||||
| - | ADAPTER | 1 | ||||
| 3363116062 | SNAPRING | 1 | ||||
| 3363116062 | SNAPRING | 1 | ||||
| 3363086569 | ADAPTER | 1 | ||||
| 3361850422 | SEAL KIT | 1 | ||||
| 3361850422 | SEAL KIT | 1 | ||||
| - | O-RING | 2 | ||||
| - | O-RING | 2 | ||||
| - | BACK-UP RING | 2 | ||||
| - | BACK-UP RING | 2 | ||||
| 3361356645 | DISK | 1 | ||||
| 3361356645 | DISK | 1 | ||||
| 3363083749 | CAP | 1 | ||||
| 3363116888 | SWIVEL JOINT complete | 1 | ||||
| 3361356643 | ADAPTER | 1 | ||||
| 3361353489 | CAP | 1 | ||||
| 3363094981 | HP-ACCUMULATOR | 1 | ||||
| 3363113101 | FASTENING SCREW | 4 | ||||
| 3363114730 | SERVICE KIT O-RINGS | 1 | ||||
| 3363100049 | WASHER | 4 | ||||
| 3360314364 | O-RING | 1 | ||||
| 3360328046 | BACK-UP RING | 1 | ||||
| 3361844113 | STRAINER DISK | 1 | ||||
| 3361844115 | THREADED PLUG | 1 | ||||
| 3361031546 | THREADED INSERT | 4 | ||||
| 3361031529 | THREADED INSERT | 8 | ||||
| 3363087286 | FILLING VALVE, complete | 1 | ||||
| 3362264253 | FILLING VALVE | 1 | ||||
| 3360478426 | THREADED PLUG | 1 | ||||
| 3360175125 | O-RING | 1 | ||||
| 3363126207 | SAFETY VALVE | 1 | ||||
| 3363123253 | SEAL | 1 | ||||
| 3360314790 | O-RING | 1 | ||||
| 3363126739 | BACK-UP RING | 1 | ||||
| 3363126740 | THREADED PLUG | 1 | ||||
| 3363087087 | CAP | 1 | ||||
| 3363087568 | Tensioning bolt complete | 8 | ||||
| 3363088611 | TENSIONING BOLT | 1 | ||||
| 3363093649 | WASHER | 1 | ||||
| 3363120683 | VALVE | 1 | ||||
| 3363121175 | SEAL | 1 | ||||
| 3363121176 | BACK-UP RING | 2 | ||||
| 3360314453 | O-RING | 1 |
