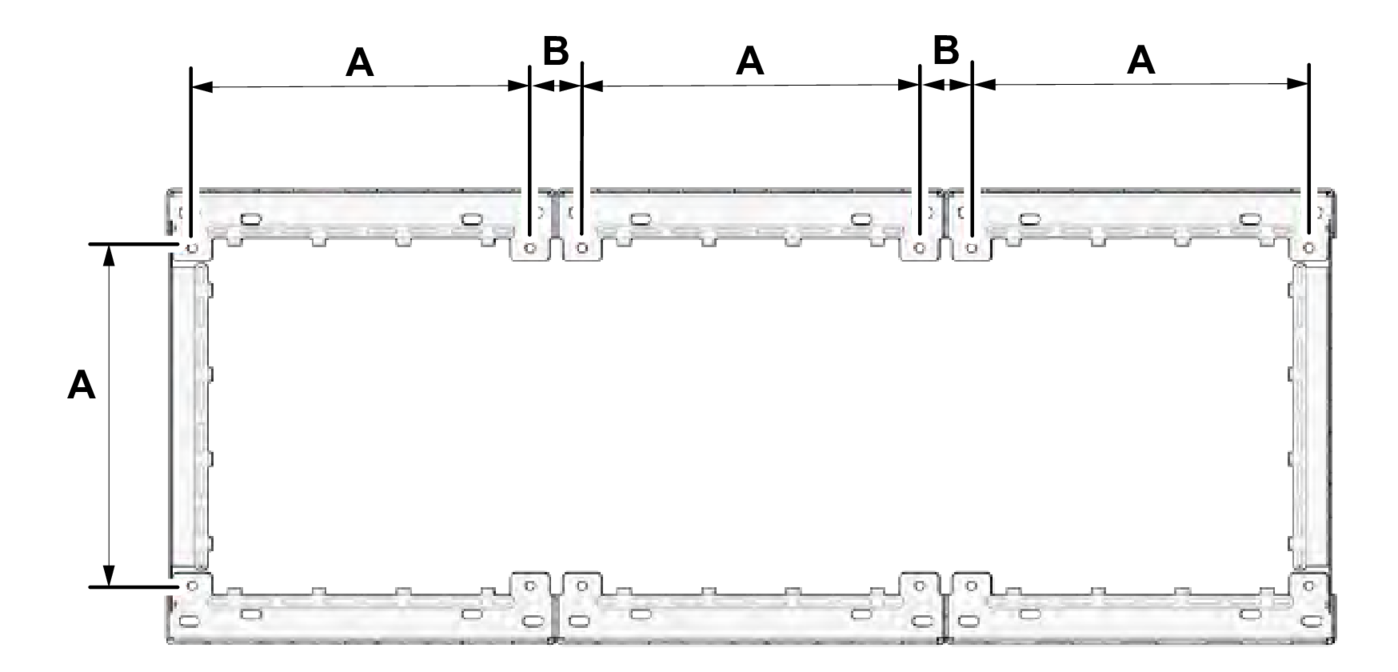

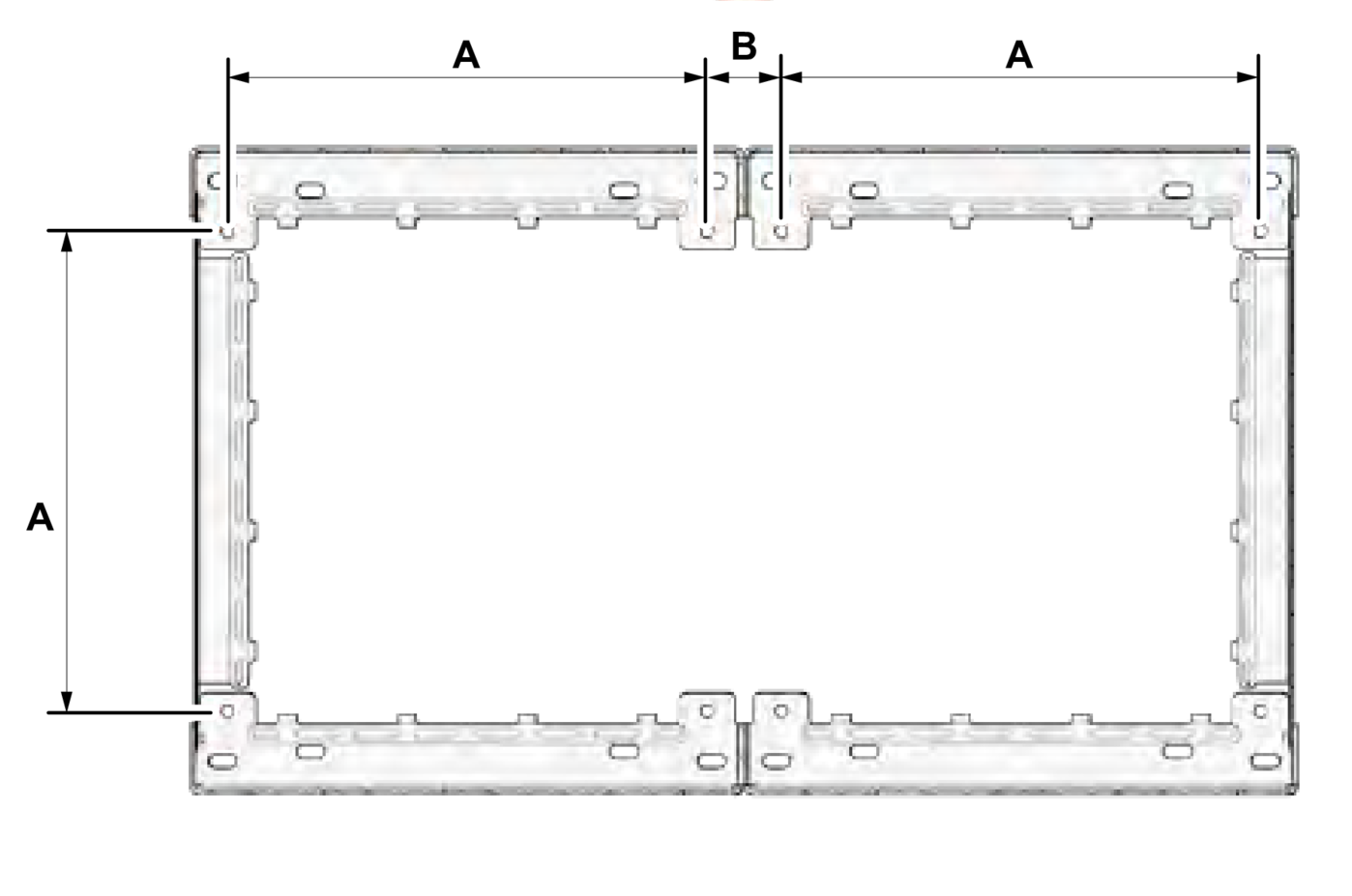

A

520

B

80

A

520

B

80

AC power connection, without transformer (multi voltage option)

380–480 VAC +6%/-10%

380–480 VAC +6%/-10%

380–480 VAC +6%/-10%

400 V, 480 V, 630 V, and 1000 V

Nominal input power and current

182 kVA - 263 A at 400 VAC input

2 X 182 kVA – 2 X 263 A at 400 VAC input

3 X 182 kVA – 3 X 263 A at 400 VAC input

268 A, 224 A, 187 A, and 113 A

Input frequency

50–60 Hz

50–60 Hz

50–60 Hz

50–60 Hz

Power factor at full load

0.92

0.92

0.92

0.92

Efficiency

94% at nominal output power

94% at nominal output power

94% at nominal output power

94% at nominal output power and 2% transformer losses

Maximum output power

160 kW

2 X 160 kW

3 X 160 kW

160 kW

Maximum output current at 800 V

240 A

2 X 240 A

3 X 240 A

240 A

Output voltage range with 800 V module

200–800 V

Charger cabinet

650 X 2195 X 841 mm (25.6 X 86.4 X 33.1 in.)

Charger post

Height of post

240 X 295 X 1510 mm (9.4 X 11.6 X 59.4 in.)

Cable hanging

2300 mm (7.5 in.)

Charging cable length

7 m (22.9 ft)

Charger 200 cabinet (one), approximate

400 kg (0.4 ton)

Charge post

60–100 kg (0.07 - 0.11 ton)

Charger 320

800 kg (0.8 ton)

Charger 160MV

1050 kg (1.05 ton)

Charging connection type

Type 1 - CCS1

Type 1 - CCS2

Operating temperature

-40 to 50  °C (-40 °F to 122 °F)

Maximum humidity

< 95% relative humidity

Cooling

Naturally cooled

User interface

On / Off switch, two function buttons, 7-in. touch screen

Network connection type

Wireless 4G mobile data connection

Communication

LTE, WiFi

General Electrical Specifications

Voltage

800 VDC

Standby power

25 W

Charging power @800VDC

400 kW

Recommended cooling liquid

Glysofor N, volume ca. 2.5 l (factory pre-filled)

Charging cable length

5 m

Nominal charging cable current

500 A (at ambient +25  °C)

Equipment stop button

Yes

Environmental Specifications

Operating temperature

−30 °C to +50 °C

Derating

Charging cable pin temperature limits charging current.

Operational noise level

< 60 dB at 1-m distance

Storage temperature

−40 °C to +60 °C

Ambient air humidity

< 95% relative humidity

Enclosure rating

IP54, IK10

Connections and Protocols

WiFi

802.11 b/g/n (2.4/5 GHz)

Cellular/GPS

LTE-FDD, LTE-TDD, WCDMA, GSM

Ethernet

RJ45, IEEE 802.3/802.3 u

OCPP

1.6j: connectivity between the charger and a third-party Charging Station Management System

2.0.1: REST APIs and Webhooks with the Epiroc Cloud Service

Connectivity

Epiroc ChargEye solution

CCS2

DIN 70121:2012, ISO 15118:2013, ISO 15118:2010

Mechanical dimensions

Size (W x H x D)

570 x 1738 x 475 mm

Weight

Ca. 150 kg

Electrical Protections

Earth leakage current monitoring

Machine connector pin temperature monitoring

Liquid level monitoring

General Electrical Specifications

Voltage

Max. 1000 VDC

Standby power

15 W

DC charging connector options

CCS2 IEC 62196-3

Environmental Specifications

Operating temperature

−30 °C to +50 °C

Derating

Charging cable pin temperature limits charging current.

Storage temperature

−40 °C to +60 °C

Ambient air humidity

< 95% relative humidity

Enclosure rating

IP54, IK10

Connections and Protocols

Ethernet

RJ45, IEEE 802.3/802.3 u

OCPP

1.6j: connectivity between the charger and a third-party Charging Station Management System

2.0.1: REST APIs and Webhooks with the Epiroc Cloud Service

Connectivity

Epiroc ChargEye solution

CCS2

DIN 70121:2012, ISO 15118:2013, ISO 15118:2010

Authentication methods

Customer backend via OCPP

AutoCharge

ISO 15118-2 Plug and Charge

Electrical connections (between Control Unit and Power Unit)

DC power cable per machine connector

• 200 A: terminals 2 x 95 mm² per pole

• 300 A: terminals 2 x 150 mm² per pole

Control cable 24 VDC

Control bus cable

Electrical Protections

Machine connector pin temperature monitoring

Mechanical dimensions

Size (W x H x D)

400 x 400 x 200 mm
