Spare Parts
Optional parts

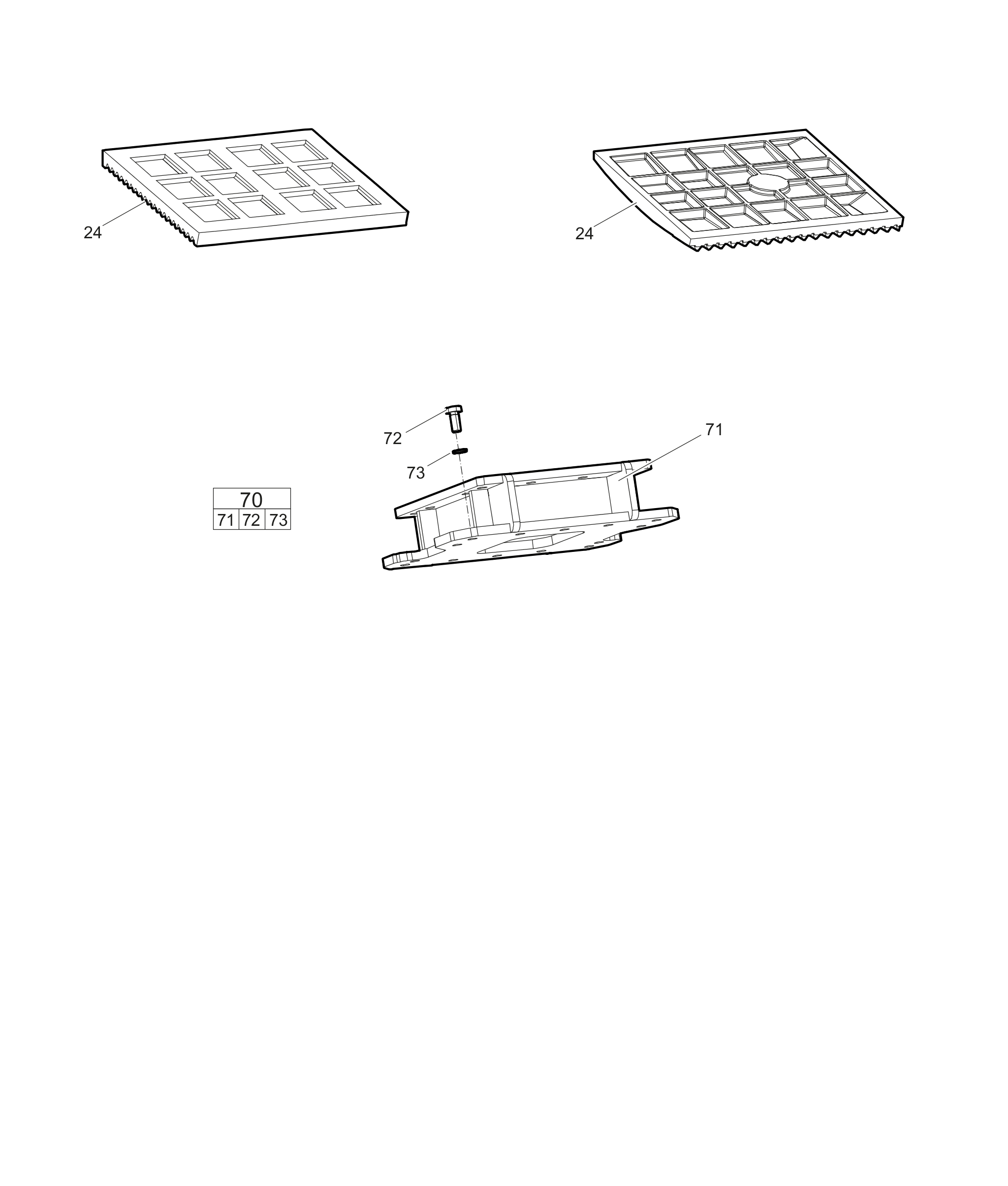

Illustration
#
Part number
Name
QTY
Remarks
Information
24
3363118485
Jaw
1
cross
24
3363118452
Jaw
1
parallel
70(71-73)
3363118484
INTERMED PLATE
1
71
3363118040
INTERMED PLATE
1
72
3363089342
HEX HEAD BOLT
14
73
3361850747
PAIR OF LOCK WASHERS
14
