Spare Parts

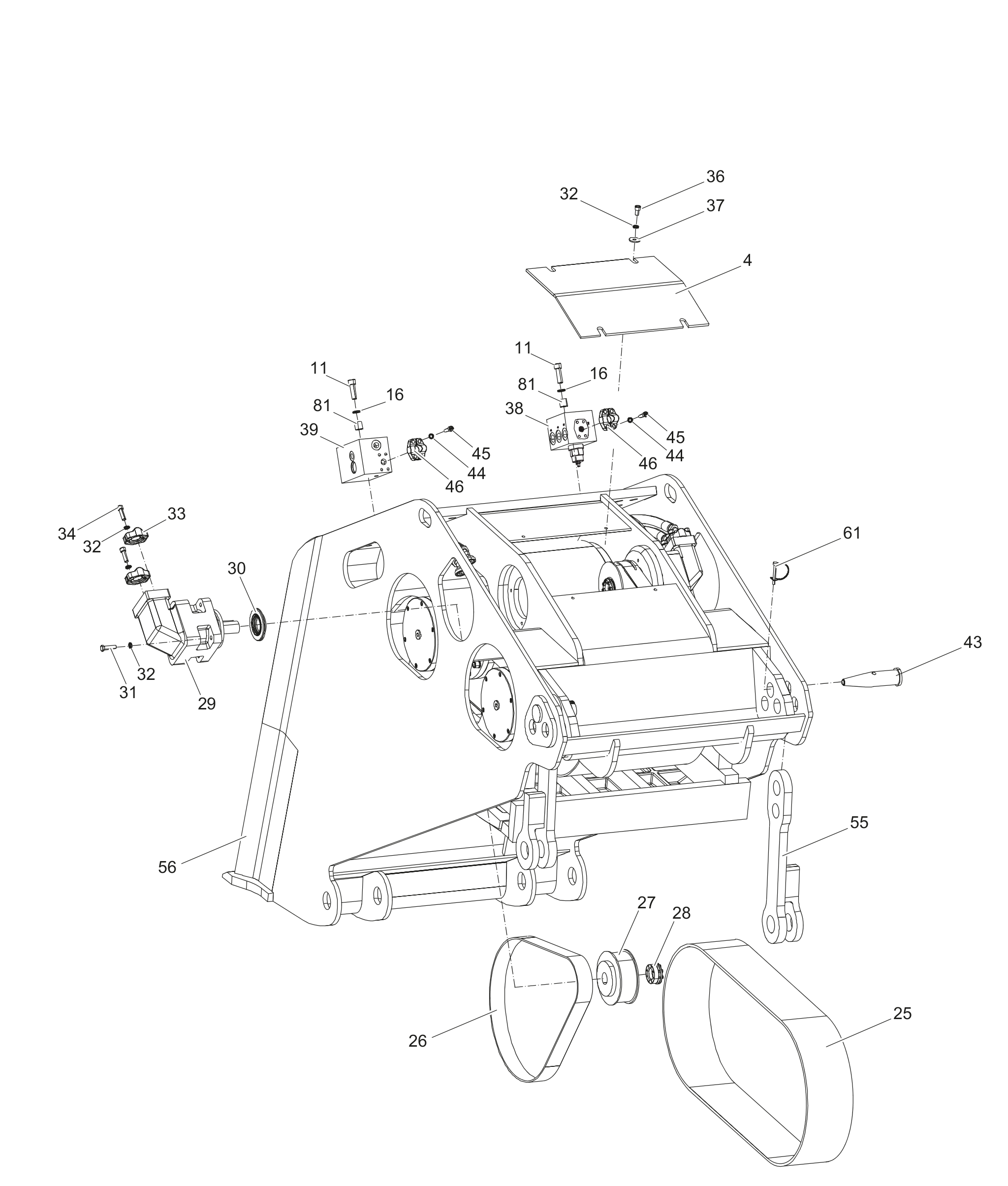

Bucket without intermediate plate
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363118445 | Gear cover | 1 | ||||
| 3363118386 | Allen screw | 8 | ||||
| 3361333703 | LOCK WASHER | 8 | ||||
| 3363118455 | Main timing belt | 1 | ||||
| 3363118401 | Secondary timing belt | 2 | ||||
| 3363118456 | Gear | 2 | ||||
| 3363118457 | Conical attachment | 2 | ||||
| 3363118458 | Hydraulic motor | 2 | ||||
| 3363118459 | Seal kit (Hydraulic motor) | 2 | ||||
| 3362328039 | ALLEN SCREW | 8 | ||||
| 3361850596 | PAIR OF LOCK WASHERS | 28 | ||||
| 3361853208 | FLANGE HALF | 8 | ||||
| 3363118433 | Allen screw | 16 | ||||
| 3363118434 | Allen screw | 4 | ||||
| 3363118461 | Washer | 4 | ||||
| 3363125237 | Flow valve | 1 | Working valve block | |||
| 3363118409 | Valve block | 1 | Return valve block | |||
| 3363118464 | Pin | 2 | ||||
| 3361850745 | PAIR OF LOCK WASHERS | 8 | ||||
| 3363118470 | Allen screw | 8 | ||||
| 3360995664 | FLANGE HALF | 4 | ||||
| 3363118467 | Tensioner fork | 2 | ||||
| 3363118468 | Housing | 1 | ||||
| 3363118420 | Locking pin | 2 | ||||
| 3363118472 | Spacer | 8 |
