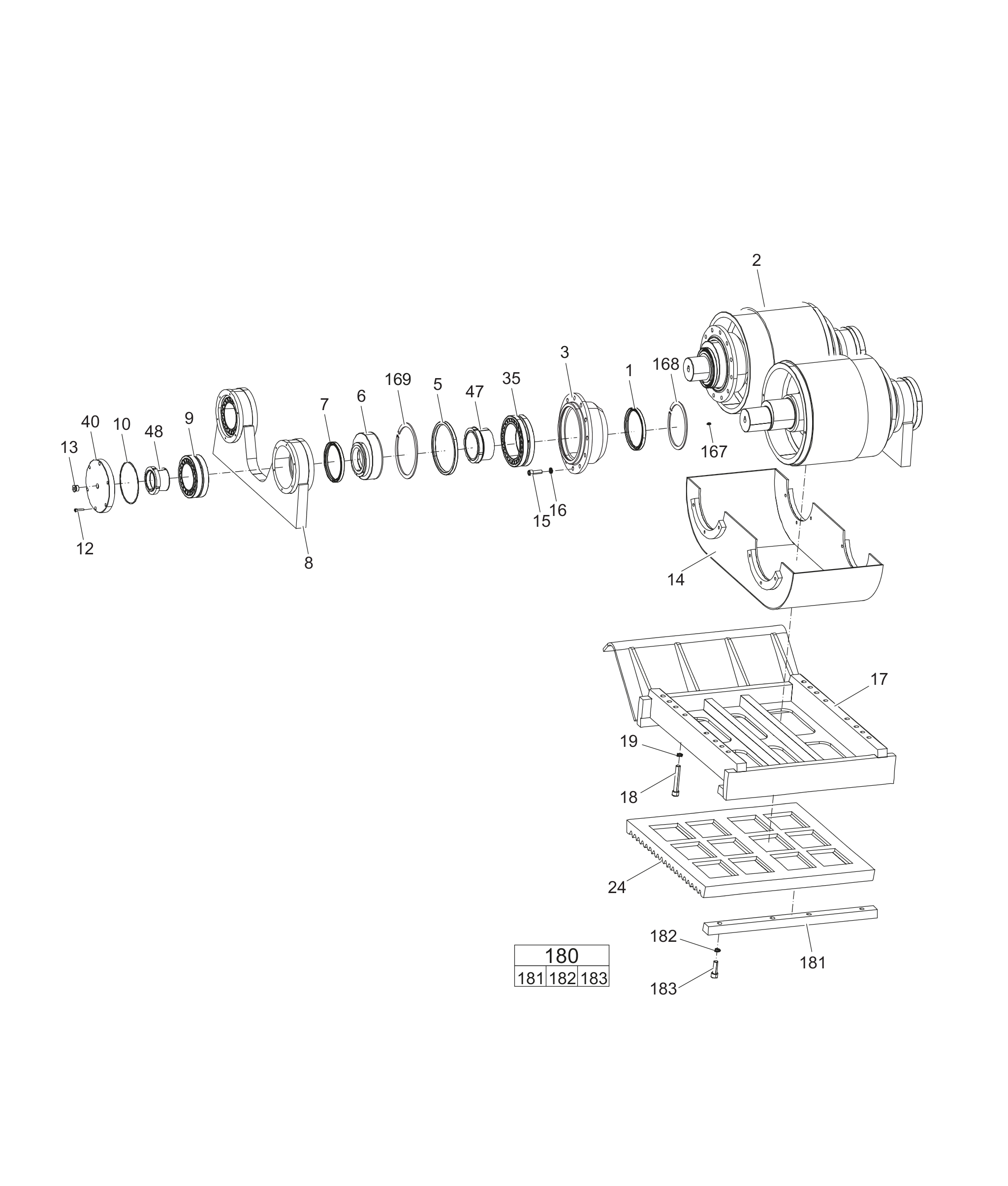

Mobile support cross, new version
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363118441 | Seal | 4 | ||||
| 3363118438 | Drive shaft | 2 | ||||
| 3363126262 | Flange | 4 | ||||
| 3363118442 | Seal | 4 | ||||
| 3363118446 | Seal support | 4 | ||||
| 3363118443 | Seal | 4 | ||||
| 3363118447 | Bridge part | 2 | ||||
| 3363118448 | Bearing | 4 | ||||
| 3363118449 | Seal | 4 | ||||
| 0211132700 | CAP SCREW | 24 | ||||
| 3363118394 | Allen plug | 4 | ||||
| 3363118450 | Transmission housing | 1 | ||||
| 3363118444 | Allen screw | 40 | ||||
| 3361333703 | LOCK WASHER | 40 | ||||
| 3363118451 | Mobile support | 1 | ||||
| 3363118440 | Allen screw | 16 | ||||
| 3361850748 | LOCK WASHER | 16 | ||||
| 3363118485 | Jaw | 1 | cross | |||
| 3363118460 | Bearing | 4 | ||||
| 3363118462 | Cover | 4 | ||||
| 3363118465 | Sleeve | 4 | ||||
| 3363118466 | Sleeve | 4 | ||||
| 3363126834 | Grease nipple | 4 | ||||
| 3363126258 | Circlip | 4 | ||||
| 3363126263 | Circlip | 4 | ||||
| 3363118381 | Wedge complete | 1 | ||||
| 3363118453 | Wedge | 1 | ||||
| 3361850748 | LOCK WASHER | 4 | ||||
| 3363094902 | ALLEN SCREW | 4 |
