Mechanical

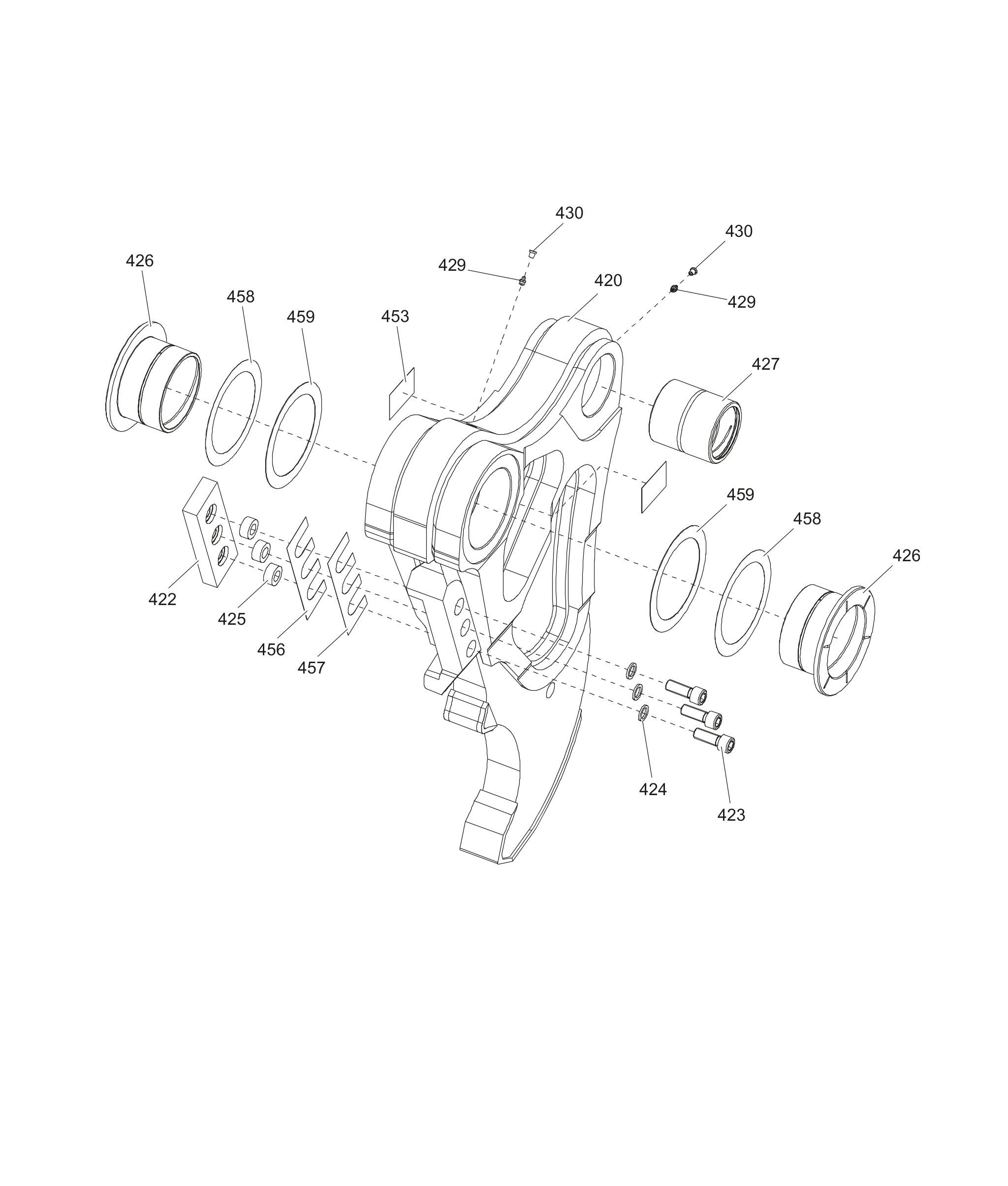

Spare Parts
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363118189 | Cutter jaw | 2 | with parts 422 - 453 | |||
| 3363118317 | CUTTER BLADE | 2 | ||||
| 3362328057 | ALLEN SCREW | 6 | ||||
| 3361850748 | PAIR OF LOCK WASHERS | 6 | ||||
| 3363035107 | LOCK RING | 6 | ||||
| 3363117542 | Bearing bush | 4 | ||||
| 3363117544 | Bearing bush | 2 | ||||
| 3360209834 | GREASE NIPPLE | 4 | ||||
| 3363087600 | CAP | 4 | ||||
| 3362268751 | LABEL TIGHTENING TORQUE | 4 | German/English | |||
| 3363118318 | SHIM | 4 | 0.2 mm (0.01 in.) thick, as required | |||
| 3363118319 | SHIM | 4 | 1.0 mm (0.04 in.) thick, as required | |||
| 3363093249 | Spacer ring | 4 | 0.2 mm (0.01 in.) thick, as required | |||
| 3363093247 | Spacer ring | 4 | 1.0 mm (0.04 in.) thick, as required |
