Mechanical
Spare Parts

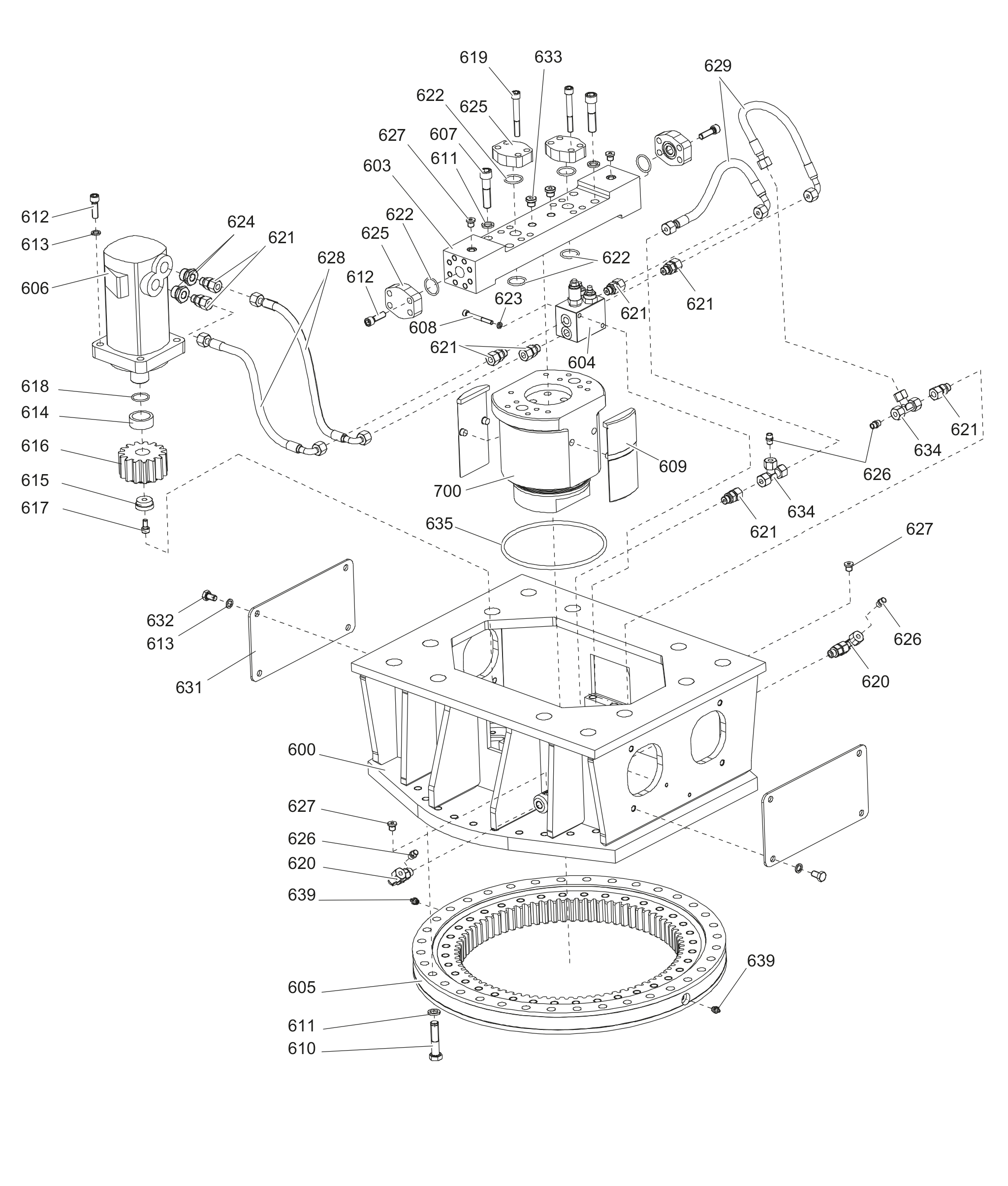

| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363117521 | UPPER PART complete | 1 | with item 603 - 700 | |||
| 3363092099 | CONNECTION PLATE | 1 | ||||
| 3362266712 | VALVE BLOCK | 1 | ||||
| 3363117403 | FOUR POINT BEARING | 1 | ||||
| 3363098967 | HYDRAULIC MOTOR | 1 | ||||
| 3360026646 | ALLEN SCREW | 4 | ||||
| 3360103738 | ALLEN SCREW | 2 | ||||
| 3363117539 | SEAL PLATE | 2 | ||||
| 3363121730 | HEXAGON HEAD BOLT | 36 | ||||
| 3361333703 | PAIR OF LOCK WASHERS | 40 | ||||
| 3360026512 | ALLEN SCREW | 12 | ||||
| 3361850596 | PAIR OF LOCK WASHERS | 12 | ||||
| 3362265869 | RING | 1 | ||||
| 3363088327 | RING | 1 | ||||
| 3362260807 | SPUR PINION | 1 | ||||
| 3361031981 | ALLEN SCREW | 1 | ||||
| 3360313304 | O-RING | 1 | ||||
| 3363034429 | ALLEN SCREW | 8 | ||||
| 3363091912 | FITTING | 2 | ||||
| 3360478333 | FITTING | 8 | ||||
| 3360314370 | O-RING | 6 | ||||
| 3361850743 | PAIR OF LOCK WASHERS | 2 | ||||
| 3362267435 | FITTING | 2 | ||||
| 3363034040 | BLIND FLANGE | 4 | with one time item 622 and four times item 612 | |||
| 3360314593 | PLUG | 4 | ||||
| 3360478439 | THREADED PLUG | 4 | ||||
| 3363085885 | HYDRAULIC HOSE | 2 | ||||
| 3363083972 | HYDRAULIC HOSE | 2 | ||||
| 3363127192 | COVER | 2 | ||||
| 3360433381 | HEXAGON HEAD BOLT | 8 | ||||
| 3360478440 | THREADED PLUG | 2 | ||||
| 3360314543 | FITTING | 2 | ||||
| 3360478079 | O-RING | 1 | ||||
| 3360433774 | GREASE NIPPLE | 2 | ||||
| 3363033685 | ROTARY TRANSMISSION | 1 | see separate chapter |
