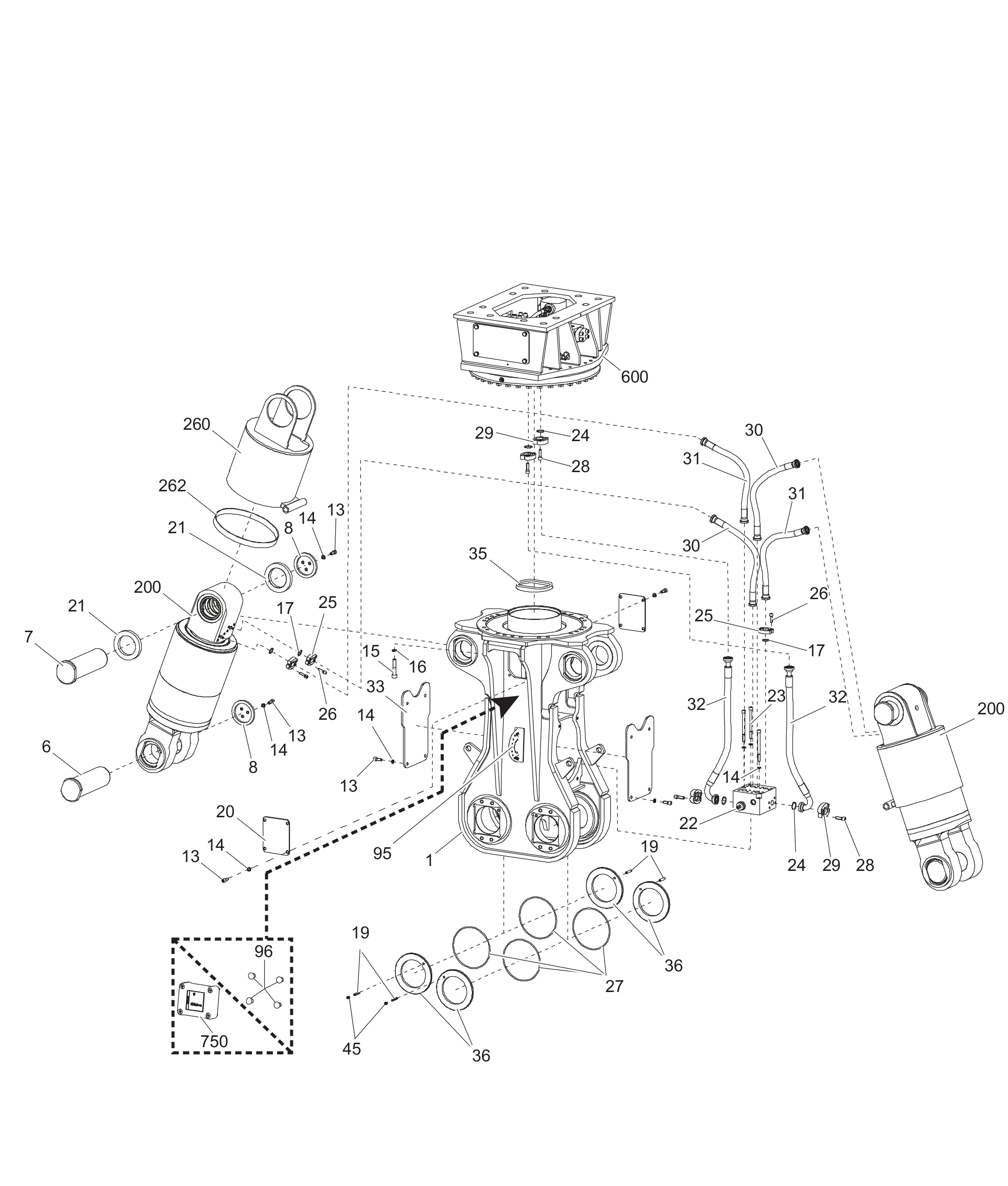

Hydraulic concrete buster
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363117428 | Housing | 1 | with item 95 | |||
| 3363117523 | Bolt | 2 | ||||
| 3363117524 | Bolt | 2 | ||||
| 3363113743 | Cap | 4 | ||||
| 3360103751 | ALLEN SCREW | 31 | ||||
| 3361850596 | PAIR OF LOCK WASHERS | 31 | ||||
| 3363070490 | ALLEN SCREW | 24 | ||||
| 3361333703 | LOCK WASHER | 24 | ||||
| 3360314549 | O-RING | 8 | ||||
| 3363098104 | SPRING DOWEL SLEEVE | 2 | ||||
| 3362262371 | CAP | 2 | ||||
| 3363117528 | Disk | 4 | ||||
| 3363103689 | RAPID MOVEMENT VALVE | 1 | ||||
| 3360118445 | ALLEN SCREW | 3 | ||||
| 3360314370 | O-RING | 4 | ||||
| 3360995664 | FLANGE HALF | 16 | ||||
| 3360026393 | ALLEN SCREW | 32 | ||||
| - | O-ring | 4 | ||||
| 3360026512 | ALLEN SCREW | 16 | ||||
| 3361853208 | FLANGE HALF | 4 | ||||
| 3363118196 | Hydraulic hose | 2 | ||||
| 3363118197 | Hydraulic hose | 2 | ||||
| 3363118198 | Hydraulic hose | 2 | ||||
| 3363117541 | Plate | 2 | ||||
| 3363117540 | ROTARY SHAFT SEAL | 1 | ||||
| 3363117529 | Ring | 4 | ||||
| 3363118258 | PIN | 2 | ||||
| 3363111995 | LIFTING EYE | 2 | professional welding process necessary | |||
| 3315439145 | PROTECTIVE PLUG HATCON | 4 | only for hydraulic concrete busters without HATCON | |||
| 3363118488 | Hydraulic cylinder complete | 2 | see separate chapter | |||
| 3363117557 | Protective piston rod sheath complete | 2 | with item 262 | |||
| 3363088873 | GUIDE STRIP | 2 | ||||
| 3363117521 | UPPER PART complete | 1 | see separate chapter | |||
| 3315439180 | HATCON | 1 | only for hydraulic concrete busters with HATCON / see separate chapter |
