Mechanical
Spare Parts

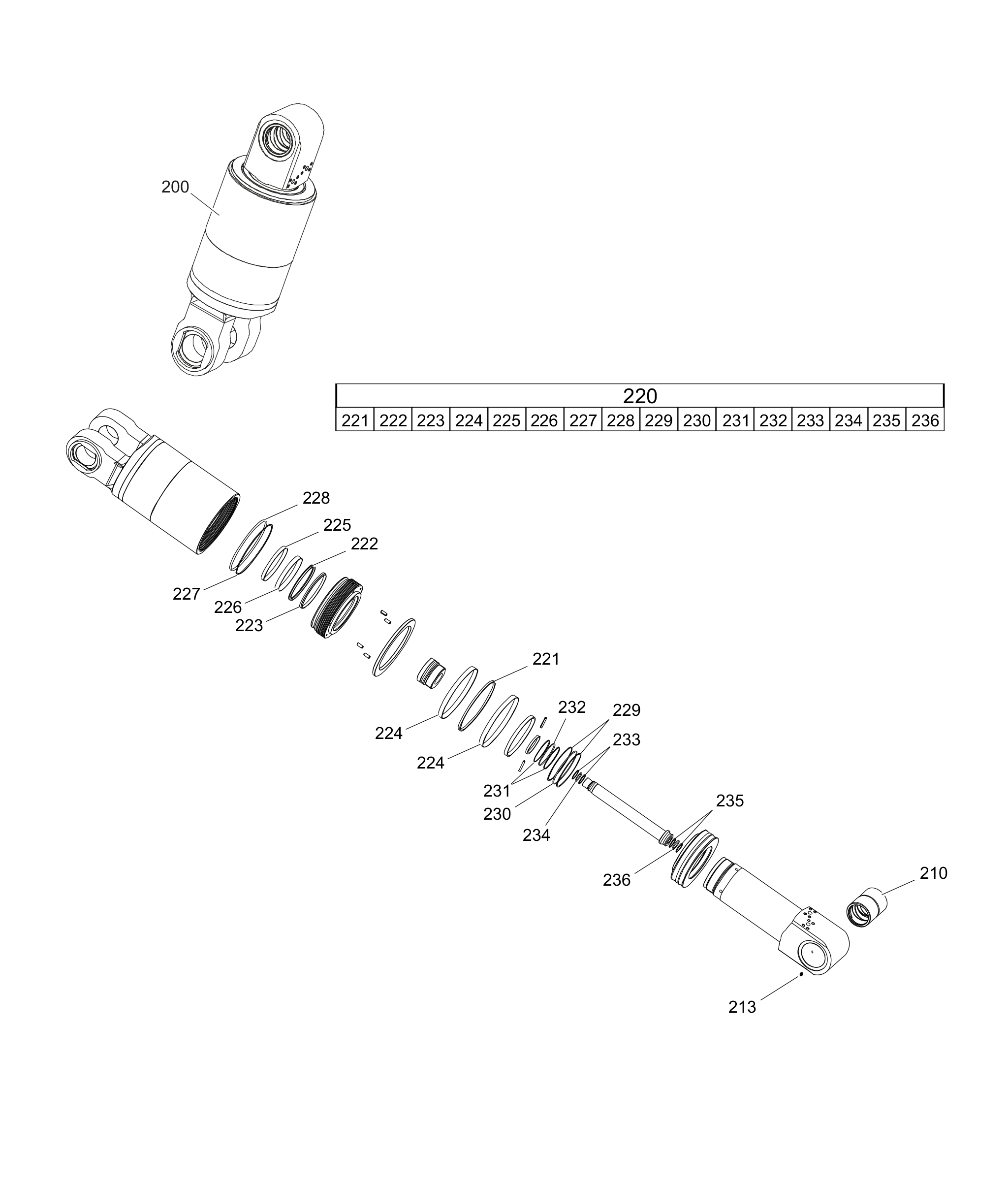

Hydraulic cylinder
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363118488 | Hydraulic cylinder complete | 1 | ||||
| 3363117951 | Bearing bush | 2 | ||||
| 3360209834 | GREASE NIPPLE | 2 | ||||
| 3363119288 | Seal kit for hydraulic cylinder | 1 | ||||
| 3363119298 | SEAL | 2 | ||||
| 3363119289 | SEAL | 2 | ||||
| 3363119291 | WIPER | 2 | ||||
| 3363119290 | GUIDE RING | 4 | ||||
| 3363119292 | GUIDE RING | 2 | ||||
| 3363119293 | GUIDE RING | 2 | ||||
| 3363119294 | BACK-UP RING | 2 | ||||
| 3363119295 | O-RING | 2 | ||||
| 3363119296 | BACK-UP RING | 4 | ||||
| 3363119297 | O-RING | 2 | ||||
| 3363119299 | Back-up ring | 4 | ||||
| 3363119300 | O-ring | 2 | ||||
| 3363119301 | Back-up ring | 4 | ||||
| 3360314455 | O-RING | 2 | ||||
| 3363119302 | Back-up ring | 4 | ||||
| 3363119303 | O-RING | 2 |
