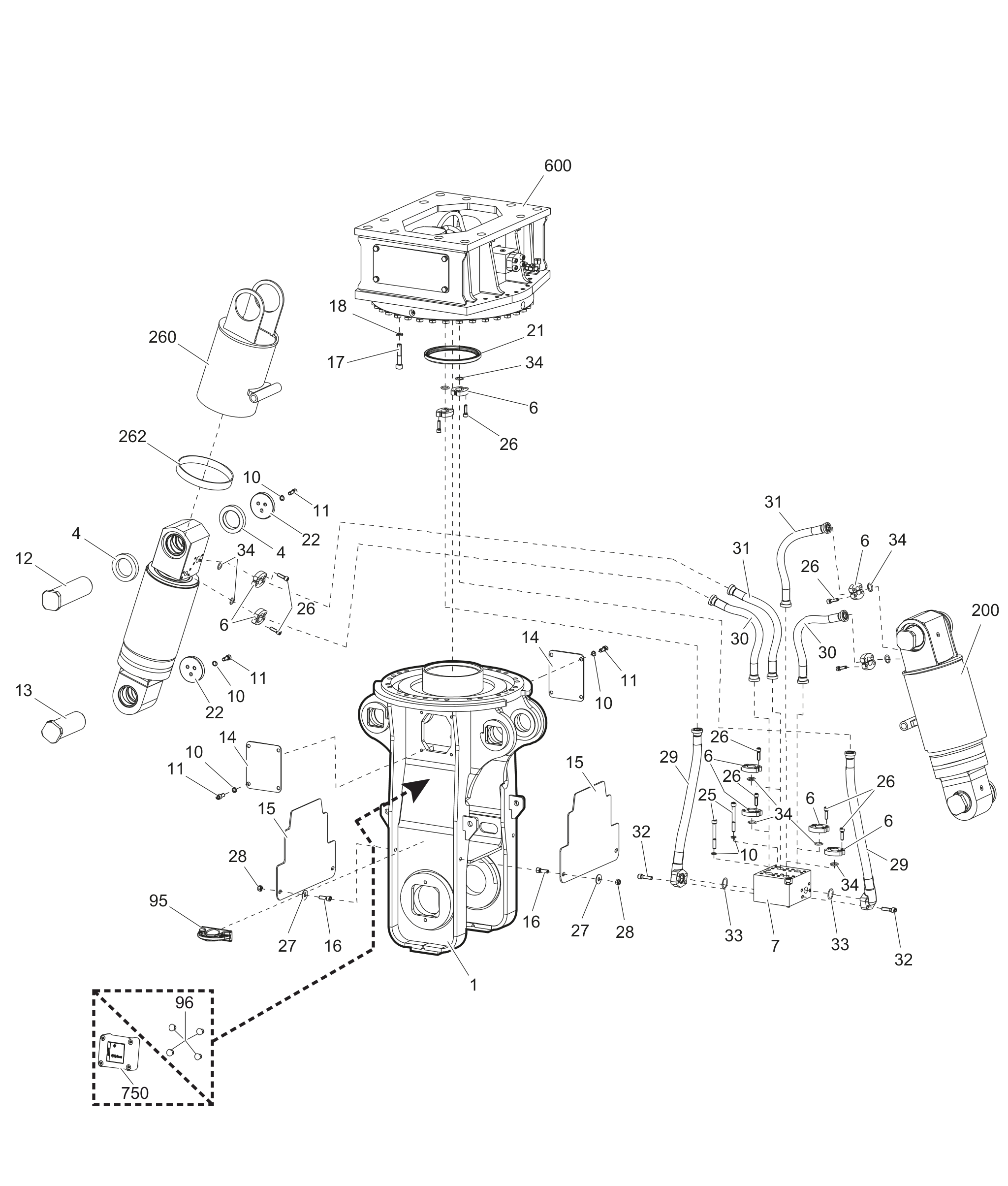

| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363122672 | HOUSING | 1 | with item 95 | |||
| 3363122749 | SPACER RING | 4 | ||||
| 3360995664 | FLANGE HALF | 20 | ||||
| 3363103689 | RAPID MOVEMENT VALVE | 1 | ||||
| 3361850596 | PAIR OF LOCK WASHERS | 23 | ||||
| 3360103751 | ALLEN SCREW | 20 | ||||
| 3363122682 | BOLT | 2 | ||||
| 3363122681 | BOLT | 2 | ||||
| 3362262371 | CAP | 2 | ||||
| 3363122869 | CAP | 2 | ||||
| 3360026511 | ALLEN SCREW | 4 | ||||
| 3363070490 | ALLEN SCREW | 28 | ||||
| 3361333703 | PAIR OF LOCK WASHERS | 28 | ||||
| 3363091934 | ROTARY SHAFT SEAL | 1 | ||||
| 3363122862 | CAP | 4 | ||||
| 3360118445 | ALLEN SCREW | 3 | ||||
| 3360026393 | ALLEN SCREW | 40 | ||||
| 3362328082 | WASHER | 4 | ||||
| 3363115633 | HEXAGON NUT | 4 | ||||
| 3363126480 | HYDRAULIC HOSE | 2 | ||||
| 3363122899 | HYDRAULIC HOSE | 2 | ||||
| 3363122900 | HYDRAULIC HOSE | 2 | ||||
| 3360026513 | ALLEN SCREW | 8 | ||||
| 3360314370 | O-RING | 2 | ||||
| 3360314549 | O-RING | 10 | ||||
| 3363111994 | LIFTING EYE | 2 | professional welding process necessary | |||
| 3315439145 | PROTECTIVE PLUG HATCON | 1 | only for hydraulic demolition cutters without HATCON | |||
| 3363122894 | HYDRAULIC CYLINDER complete | 2 | see separate chapter | |||
| 3363122876 | PROTECTIVE PISTON ROD SHEATH complete | 2 | with item 262 | |||
| 3363122739 | GUIDE STRIP | 2 | ||||
| 3363122728 | UPPER PART complete | 1 | see separate chapter | |||
| 3315439180 | HATCON | 1 | only for hydraulic demolition cutters with HATCON / see separate chapter |
