Spare Parts

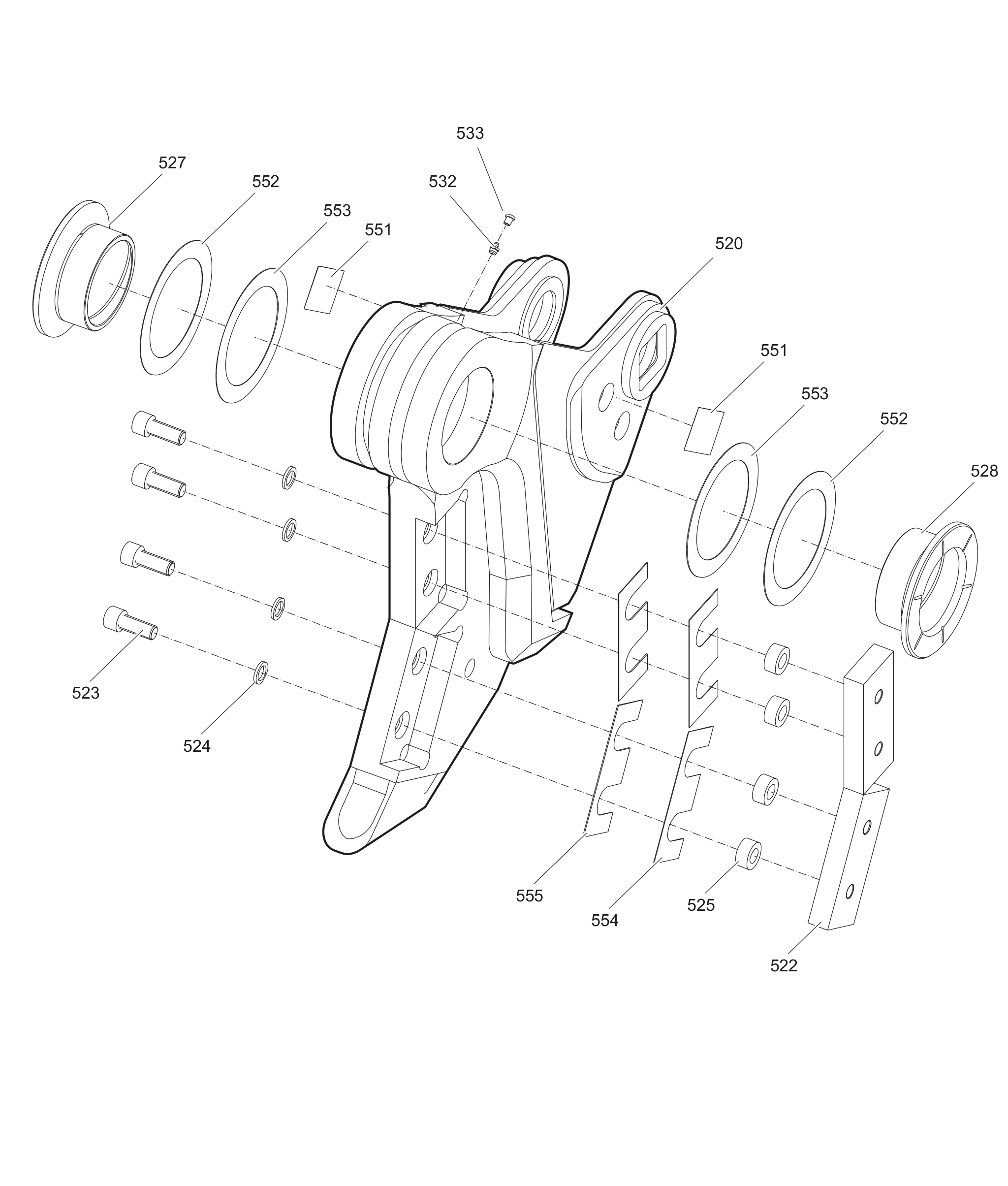

Cutter jaw (single) S

#		Part number	Name	QTY	Remarks	Information
		3363122944	Cutter jaw (single) S	1	with item 522 - 551B \| German/EnglishC \| 0.2 mm (0.01 in.) thick, as requiredD \| 1.0 mm (0.04 in.) thick, as required
		3363086455	CUTTER BLADE	2
		3360026782	ALLEN SCREW	4
		3361850748	LOCK WASHER	4
		3363035107	LOCK RING	4
		3363092139	Bearing bush	1
		3363092137	Bearing bush	1
		3360209834	GREASE NIPPLE	1
		3363087600	CAP	1
		3362268751	LABEL TIGHTENING TORQUE	2
		3363091056	Spacer ring	2
		3363092141	Spacer ring	2
		3363092403	SHIM	2
		3363091026	SHIM	2
