Mechanical

Base plate (27) BC 2500, BP 1650, BP 2050, BP 2100, BS 1600, CB 2500, CC 1600, CC 1700, CC 2300, DC 1200, DP 2000, HM 1500, HM 2000, MG 1000, MG 1500, MG 1800
Base plate (14) BC 2500, BP 1650, BP 2050, BP 2100, BS 1600, CB 2500, CC 1600, CC 1700, CC 2300, DC 1200, DP 2000, HM 1500, HM 2000, MG 1000, MG 1500, MG 1800
CC 1600 U, CC 1600 S, CC 1600 P s/n DEQ229409 -
CC 1600 U_S_P DEQ199174-DEQ229408 PDF
CC 1600 U_S_P DEQ229409-DEQ250072_DGR240001- PDF

Spare Parts

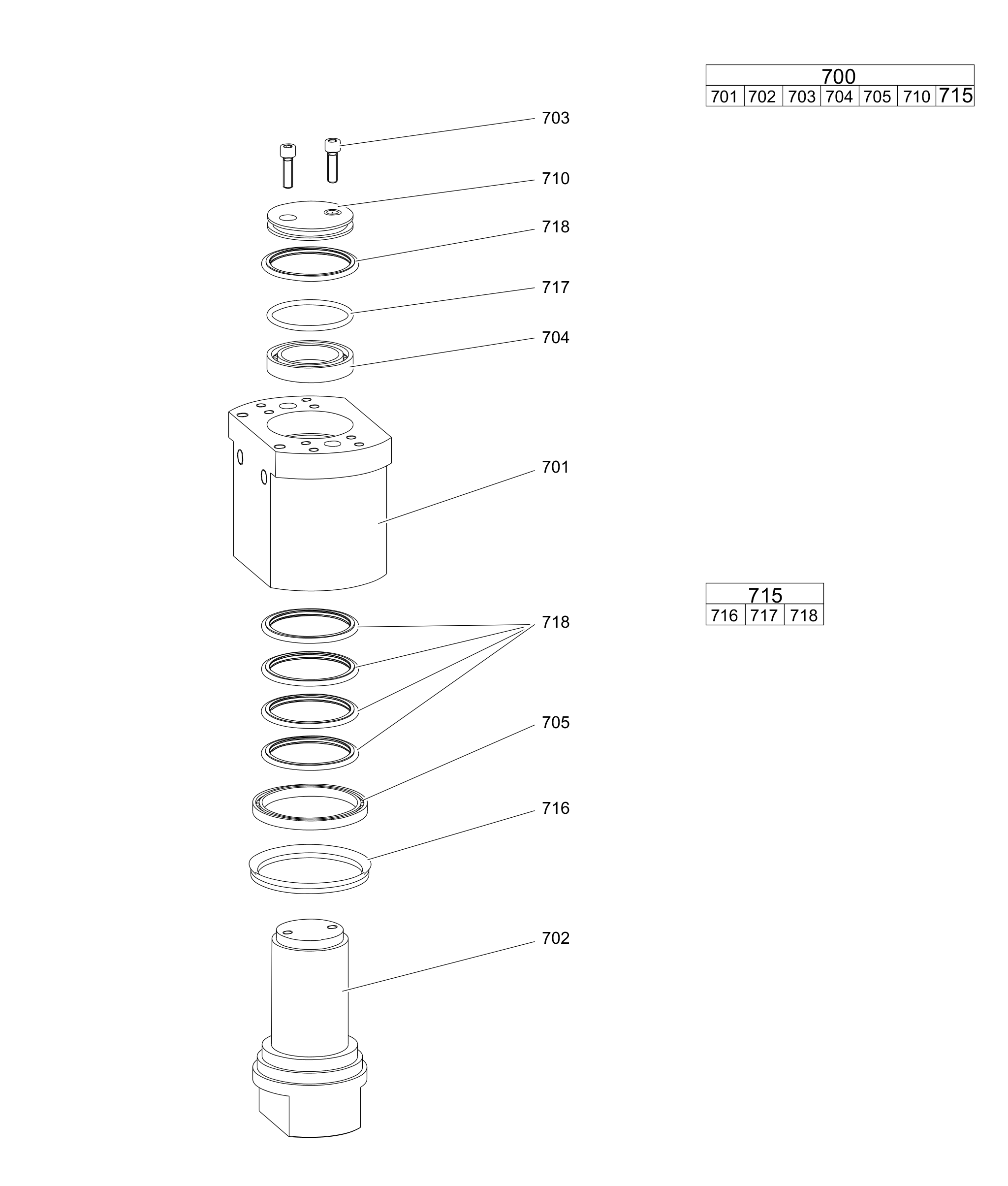

Rotary transmission

#		Part number	Name	QTY	Remarks	Information
		3363125714	ROTARY TRANSMISSION	1
		3363034413	STATOR	1
		3363125939	ROTOR	1
		3363034422	ALLEN SCREW	2
		3363034416	BALL BEARING	1
		3363034417	BALL BEARING	1
		3363034415	CAP	1
		3363083065	SEAL KIT (Rotary transmission)	1
		3363034418	V-RING	1
		3363034419	O-RING	1
		3363034420	SLIDE RING	5
