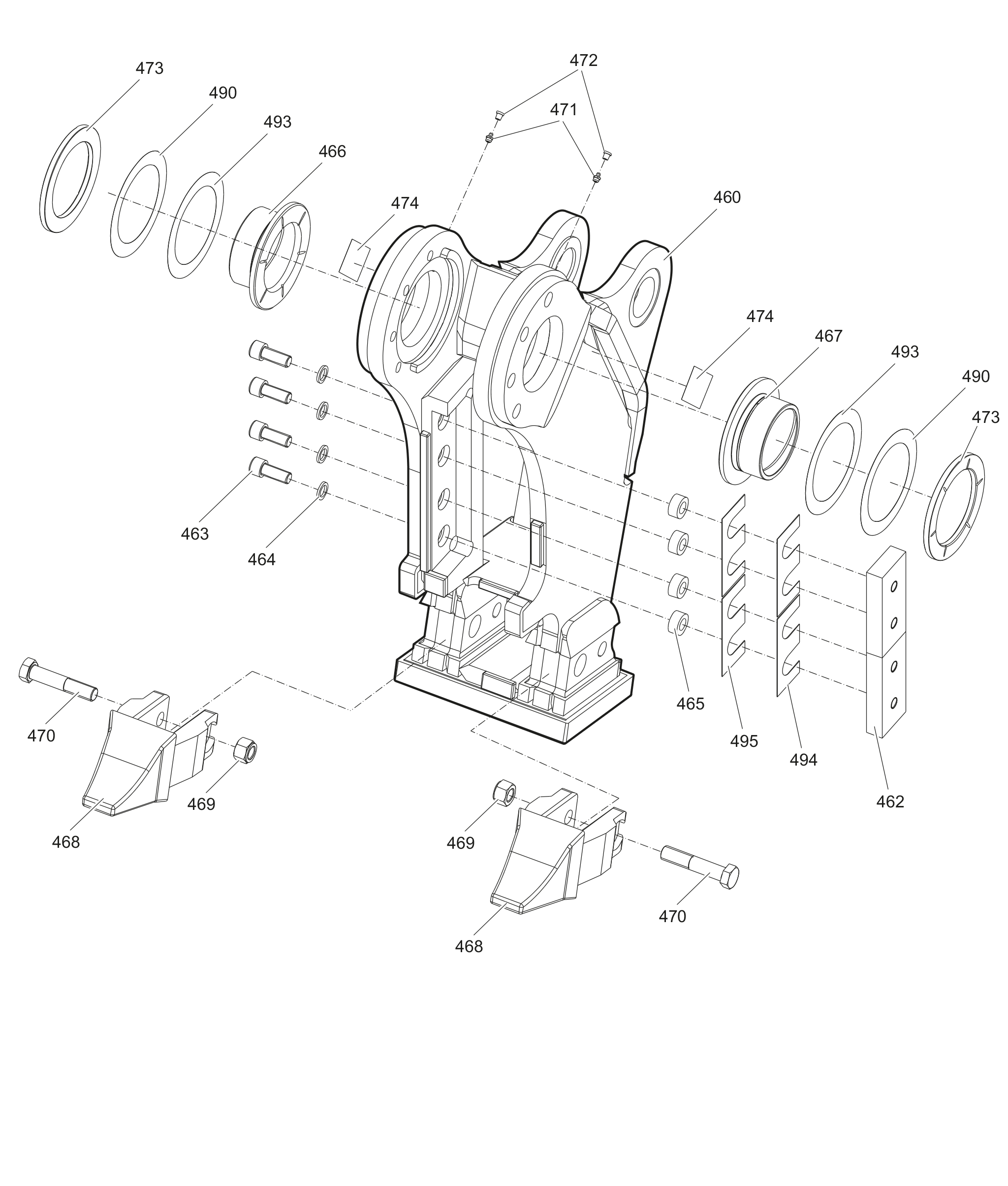

Cutter jaw (double) U

Part number	Name	QTY	Remarks
3363122879	CUTTER JAW (double) U	1	with item 462 - 474B \| with item 469 and 470C \| German/EnglishD \| 0.2 mm (0.01 in.) thick, as requiredE \| 1.0 mm (0.04 in.) thick, as required
3363086479	CUTTER BLADE	2
3360026782	ALLEN SCREW	4
3361850748	PAIR OF LOCK WASHERS	4
3363035107	LOCK RING	4
3363092137	Bearing bush	1
3363092139	Bearing bush	1
3363098968	TIP OF TOOTH	2
3363098934	HEXAGON NUT	2
3363123492	HEXAGON HEAD BOLT	2
3360209834	GREASE NIPPLE	2
3363087600	CAP	2
3362268349	Wear ring	2
3362268751	LABEL TIGHTENING TORQUE	2
3363091056	Spacer ring	2
3363092141	Spacer ring	2
3363088149	SHIM	2
3363087607	SHIM	2
