CC 1600 U, CC 1600 S, CC 1600 P s/n DEQ229409 -
CC 1600 U_S_P DEQ229409- PDF
CC 1600 U_S_P DEQ199174-DEQ229408 PDF

Spare Parts

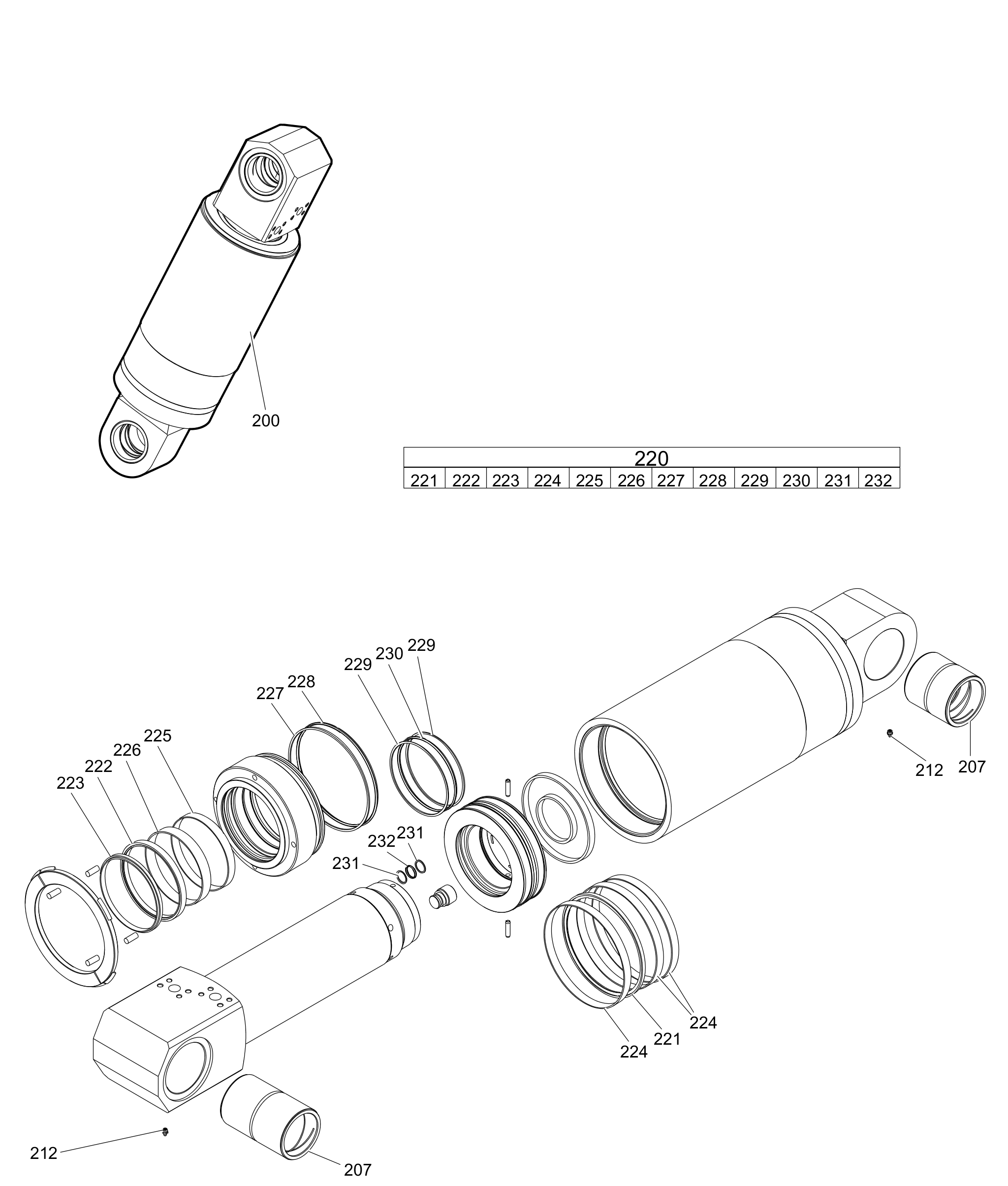

Hydraulic cylinder

#		Part number	Name	QTY	Remarks	Information
		3363122894	HYDRAULIC CYLINDER complete	1	with item 207 - 232
		3363122914	CLAMPING BUSH	2
		3360209834	GREASE NIPPLE	2
		3363123292	SEAL KIT (hydraulic cylinder)	1
		-	SEAL	1
		-	SEAL	1
		-	WIPER	1
		-	GUIDE RING	3
		-	GUIDE RING	1
		-	GUIDE RING	1
		3363123288	BACK-UP RING	1
		3360478169	O-RING	1
		-	BACK-UP RING	2
		-	O-RING	1
		-	BACK-UP RING	2
		3363122285	O-RING	1
