Spare Parts
Hydraulic breaker

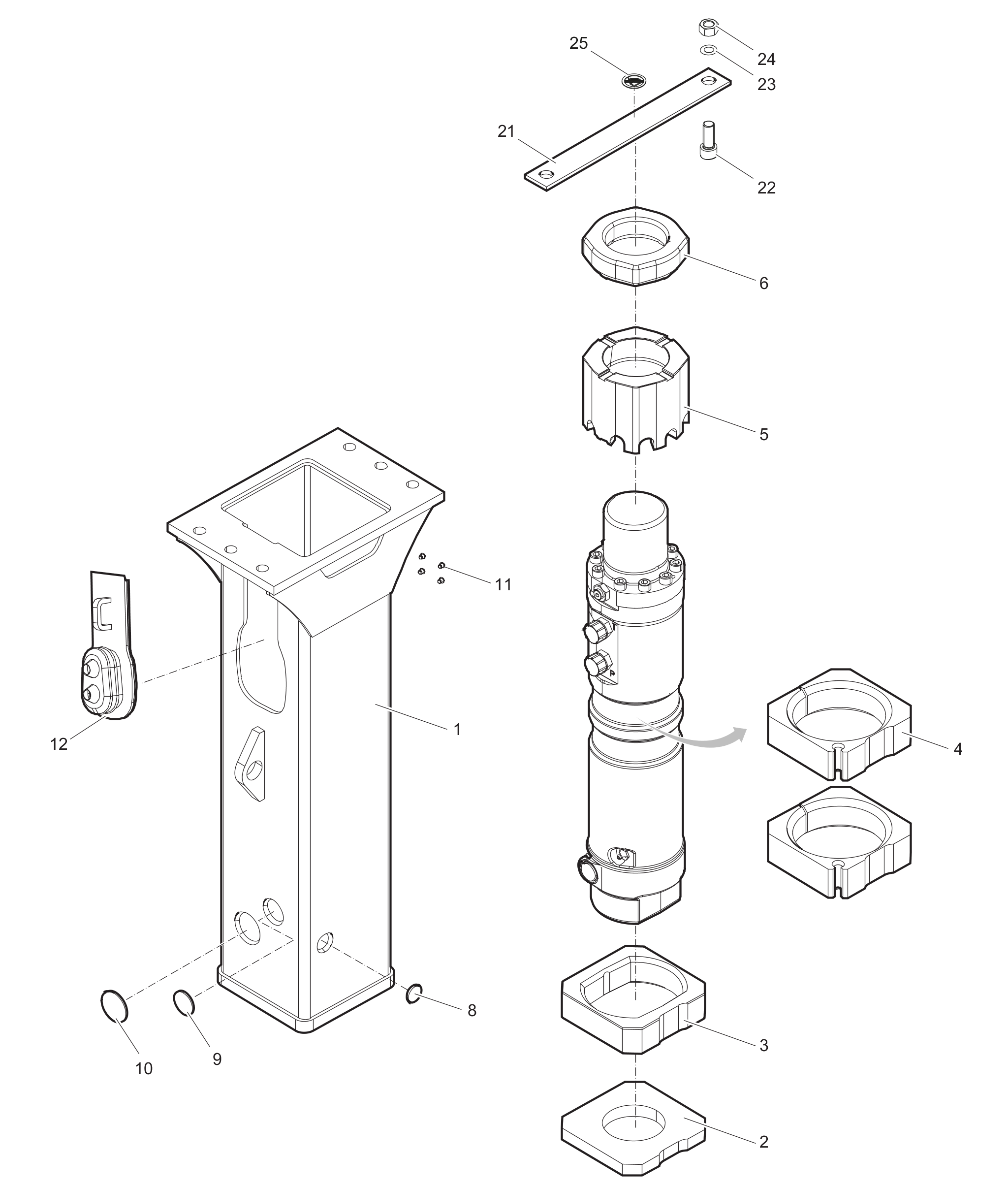

# | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3362120002 | BREAKER BOX | 1 | ||||
| 3362420001 | ABSORBER | 1 | ||||
| 3315288620 | LOWER GUIDE PLATE | 1 | ||||
| 3362420003 | GUIDE PLATE | 2 | ||||
| 3315431700 | SPACER | 1 | ||||
| 3315431600 | SHOCK ABSORBER | 1 | ||||
| 3362491015 | COVER | 2 | ||||
| 3362491014 | COVER | 2 | ||||
| 3362491013 | COVER | 2 | ||||
| 3315439145 | Protectiv plug | 4 | ||||
| 3362491009 | COVER | 1 | ||||
| 3362491017 | RETAINER | 1 | ||||
| 3360026644 | SCREW | 2 | ||||
| 3361333703 | PAIR OF LOCK WASHERS | 2 | ||||
| 3360103270 | NUT | 2 | ||||
| 3363091872 | LABEL TRANSPORT SAFETY DEVICE | 1 |
