Spare Parts

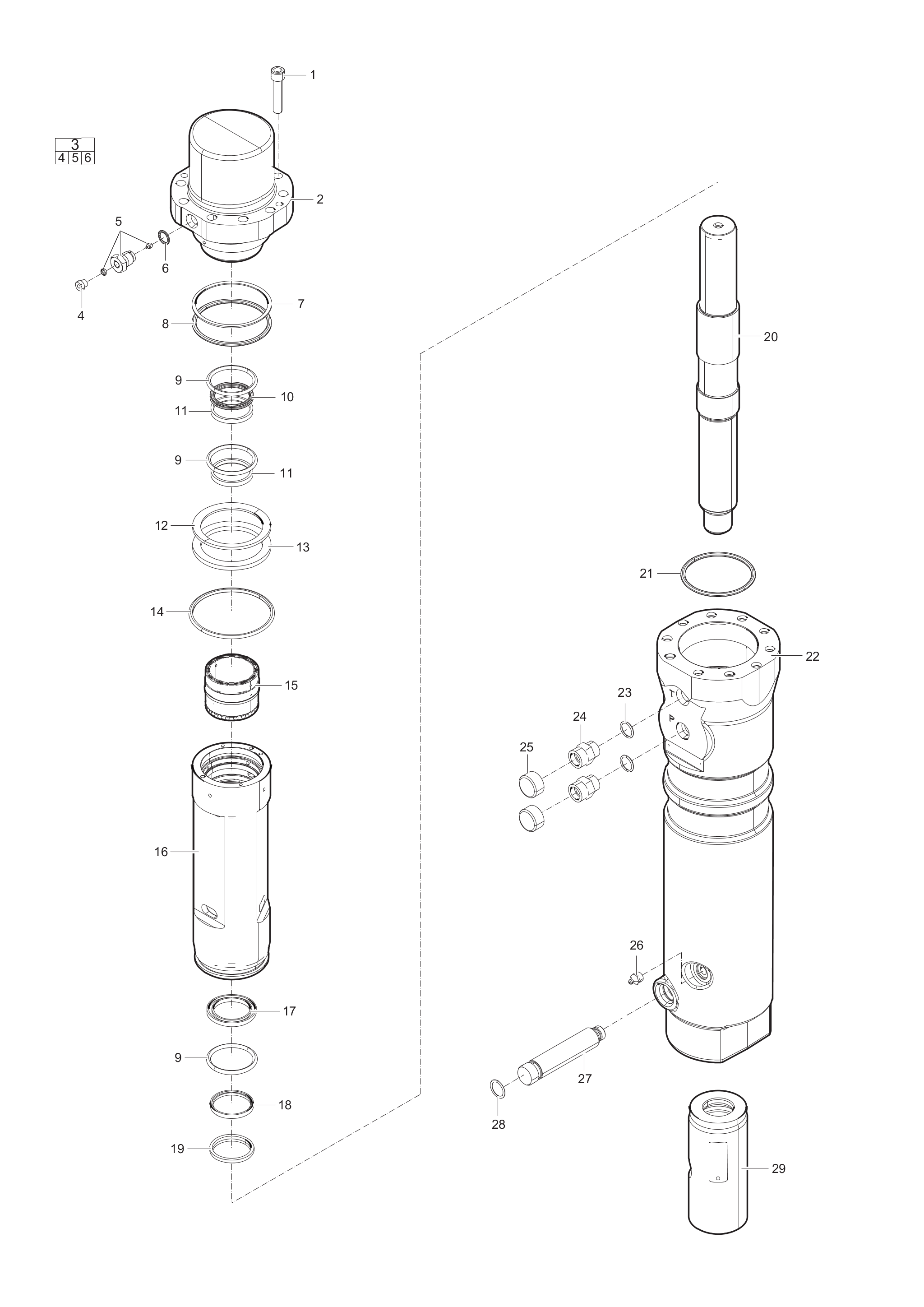

Percussion unit
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3315431100 | SCREW | 10 | ||||
| 3315429600 | BACK HEAD | 1 | ||||
| 3363087286 | FILLING VALVE, complete | 1 | ||||
| 3360478426 | THREADED PLUG | 1 | ||||
| 3362264253 | FILLING VALVE | 1 | ||||
| 0663925100 | O-RING | 1 | ||||
| 0661150126 | BACK-UP RING | 1 | ||||
| 3361192020 | O-RING | 1 | ||||
| 3361192044 | O-RING | 3 | ||||
| 3361192042 | QUAD-RING | 1 | ||||
| 3361192043 | STEPSEAL | 2 | ||||
| 3361120004 | SPRING WASHER | 1 | ||||
| 3361120005 | SPACER | 1 | ||||
| 3315296610 | SEAL | 1 | ||||
| 3361120106 | CONTROL VALVE | 1 | ||||
| 3361120002 | CYLINDER BUSH | 1 | ||||
| 3361192049 | SEAL | 1 | ||||
| 3361192050 | STEPSEAL | 1 | ||||
| 3361192051 | WIPER | 1 | ||||
| 3315332630 | PISTON | 1 | ||||
| 3361192047 | O-RING | 1 | ||||
| 3315429705 | CYLINDER HOUSING | 1 | ||||
| 3361192067 | O-RING | 2 | ||||
| 3361031476 | FITTING | 2 | ||||
| 3361353486 | COVER | 2 | ||||
| 3360433774 | GREASE NIPPLE | 1 | ||||
| 3315429811 | TOOL RETAINER | 1 | ||||
| 0663212111 | O-RING | 1 | ||||
| 3361120009 | BUSHING | 1 |
