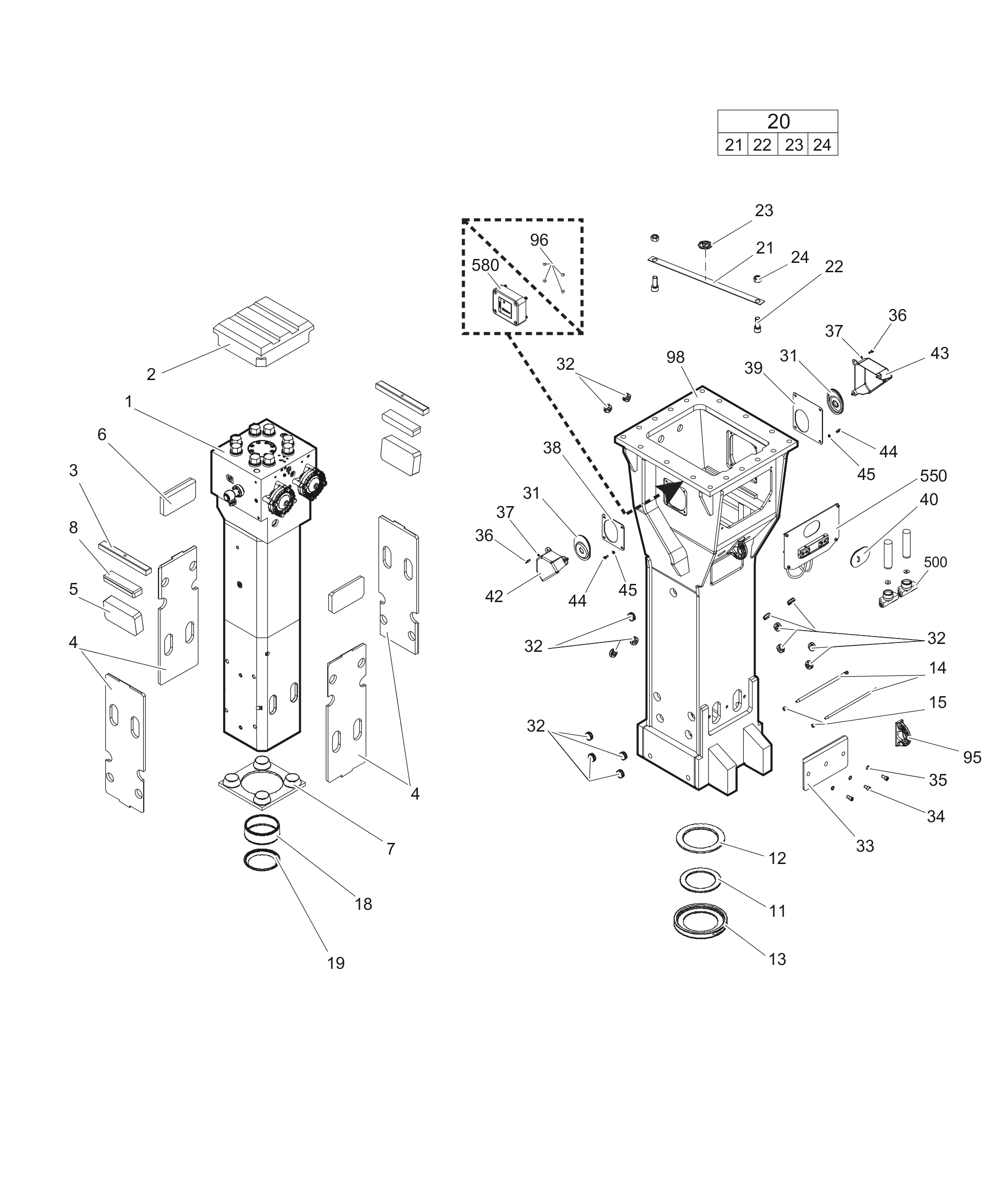

Hydraulic breaker
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| - | Percussion unit | 1 | see separate chapterB | steel see chapter Optional partsC | professional welding process necessaryD | with item 95 and 96E | only for hydraulic breakers without HATCONF | only for hydraulic breakers with HATCON / see separate chapter | |||
| 3363092957 | Elastic pad | 1 | ||||
| 3363093853 | Shock absorber | 2 | ||||
| 3363093855 | Guide plate | 4 | ||||
| 3362262667 | GUIDE PLATE | 2 | ||||
| 3362262665 | GUIDE PLATE | 2 | ||||
| 3363100713 | Guide plate | 1 | ||||
| 3363100777 | Plate | 2 | ||||
| 3363100701 | Floating ring (tribolid) | 1 | ||||
| 3363100703 | Counter ring | 1 | ||||
| 3363100705 | Guide ring | 1 | ||||
| 3363100707 | Bolt | 2 | ||||
| 3361854363 | LOCKING BUSH | 2 | ||||
| 3363100709 | Base for wiper | 1 | ||||
| 3363100711 | Wiper | 1 | ||||
| 3363094825 | Transport safety device complete | 1 | ||||
| - | Transport safety device | 1 | ||||
| 3360114151 | ALLEN SCREW | 2 | ||||
| 3363091872 | LABEL TRANSPORT SAFETY DEVICE | 1 | ||||
| 3360103255 | NUT | 2 | ||||
| 3363031181 | COVER | 2 | ||||
| 3363086017 | PLUG | 15 | ||||
| 3363126819 | Plate | 1 | ||||
| 3363083007 | Allen screw | 3 | ||||
| 3361850748 | LOCK WASHER | 3 | ||||
| 3360103751 | ALLEN SCREW | 6 | ||||
| 3361850596 | PAIR OF LOCK WASHERS | 6 | ||||
| 3363098830 | Plate | 1 | ||||
| 3363103287 | Plate | 1 | ||||
| 3363092697 | COVER | 1 | ||||
| 3363111467 | Swivel joint cover | 1 | ||||
| 3363111472 | Swivel joint cover | 1 | ||||
| 3360103750 | ALLEN SCREW | 2 | ||||
| 3363111296 | PAIR OF LOCK WASHERS | 2 | ||||
| 3363111996 | LIFTING EYE | 2 | ||||
| 3315439145 | PROTECTIVE PLUG HATCON | 4 | ||||
| 3363113273 | Breaker box | 1 | ||||
| 3363067123 | AUTOMATIC LUBRICATION SYSTEM | 2 | ||||
| 3363119326 | Connecting kit for automatic lubrication system | 1 | see separate chapterB | steel see chapter Optional partsC | professional welding process necessaryD | with item 95 and 96E | only for hydraulic breakers without HATCONF | only for hydraulic breakers with HATCON / see separate chapter | |||
| 3315439180 | HATCON | 1 |
