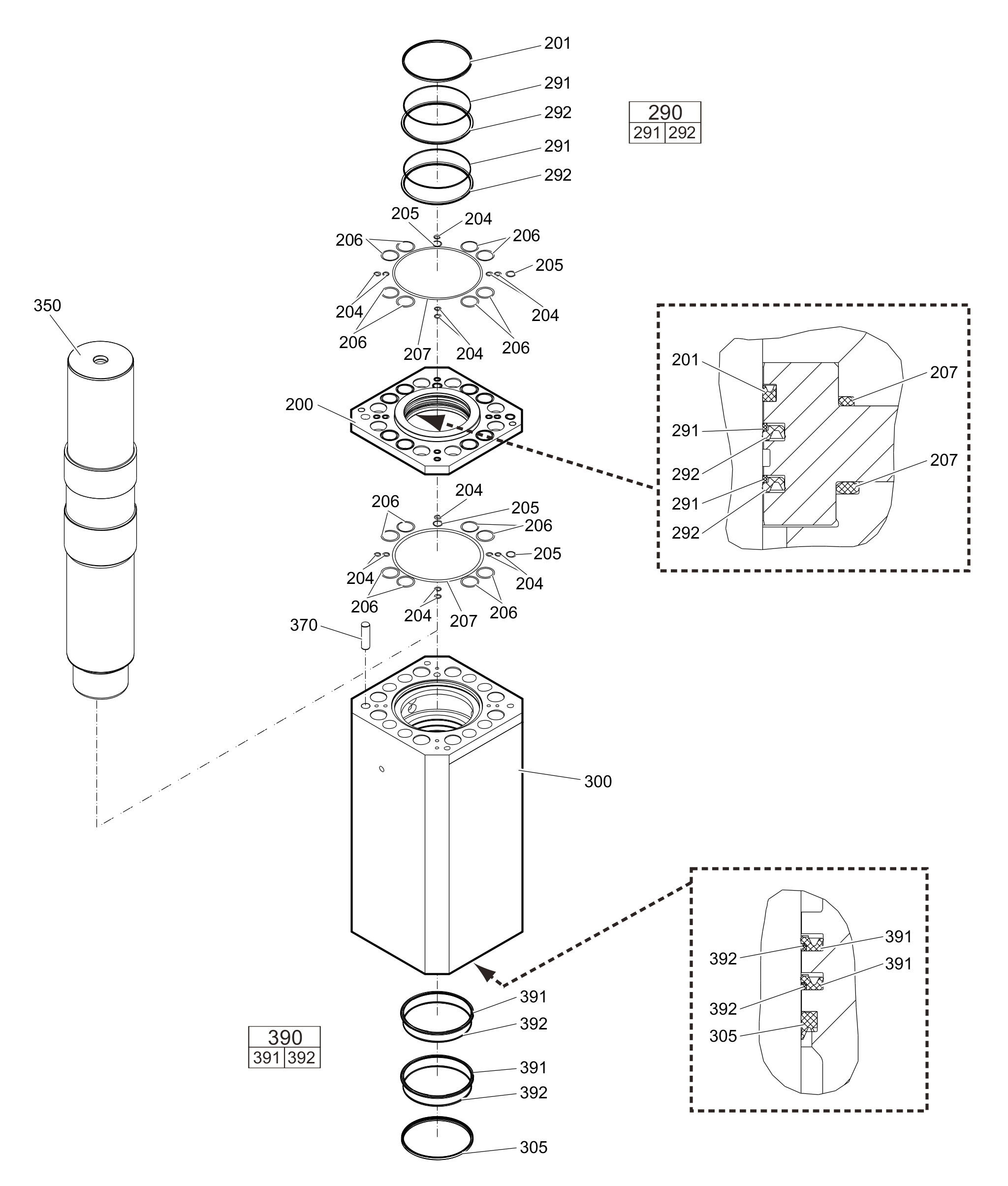

Percussion unit part 2: cylinder
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363120931 | Seal flange | 1 | ||||
| 3363103420 | Seal | 1 | ||||
| 3363124052 | Seal | 14 | ||||
| 3363124053 | Seal | 4 | ||||
| 3363124054 | Seal | 16 | ||||
| 3363094978 | O-ring | 2 | ||||
| 3363098324 | Seal kit | 2 | ||||
| - | Back-up ring | 1 | ||||
| 3363100019 | Seal | 1 | ||||
| 3363121101 | Cylinder | 1 | ||||
| 3363094974 | Wiper | 1 | ||||
| 3363098300 | Percussion piston | 1 | ||||
| 3360106819 | LOCK PIN | 1 | ||||
| 3363098325 | Seal kit | 2 | ||||
| - | Seal | 1 | ||||
| - | Back-up ring | 1 |
