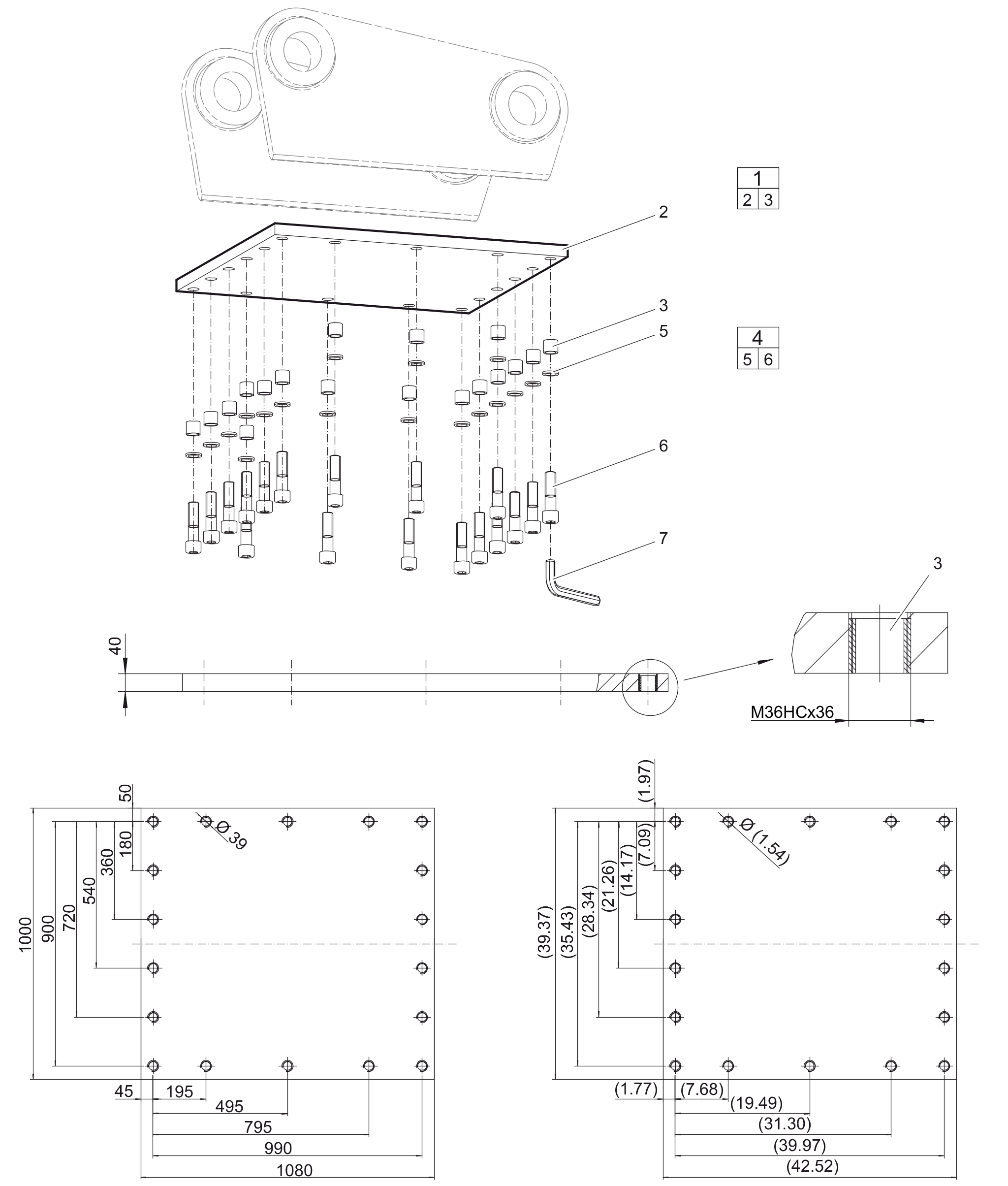

Base plate (32) HB 10000, SC 8300
Spare Parts
Base plate
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363104609 | Base plate with threaded inserts | 1 | ||||
| - | Base plate | 1 | ||||
| 3361031611 | Threaded insert, M36x36, factory assembled | 18 | ||||
| 3363103061 | Bolt kit | 1 | ||||
| 3361853365 | PAIR OF LOCK WASHERS | 18 | ||||
| 3360114151 | ALLEN SCREW | 18 | ||||
| 3360478949 | ALLEN KEY (27 mm) | 1 |
