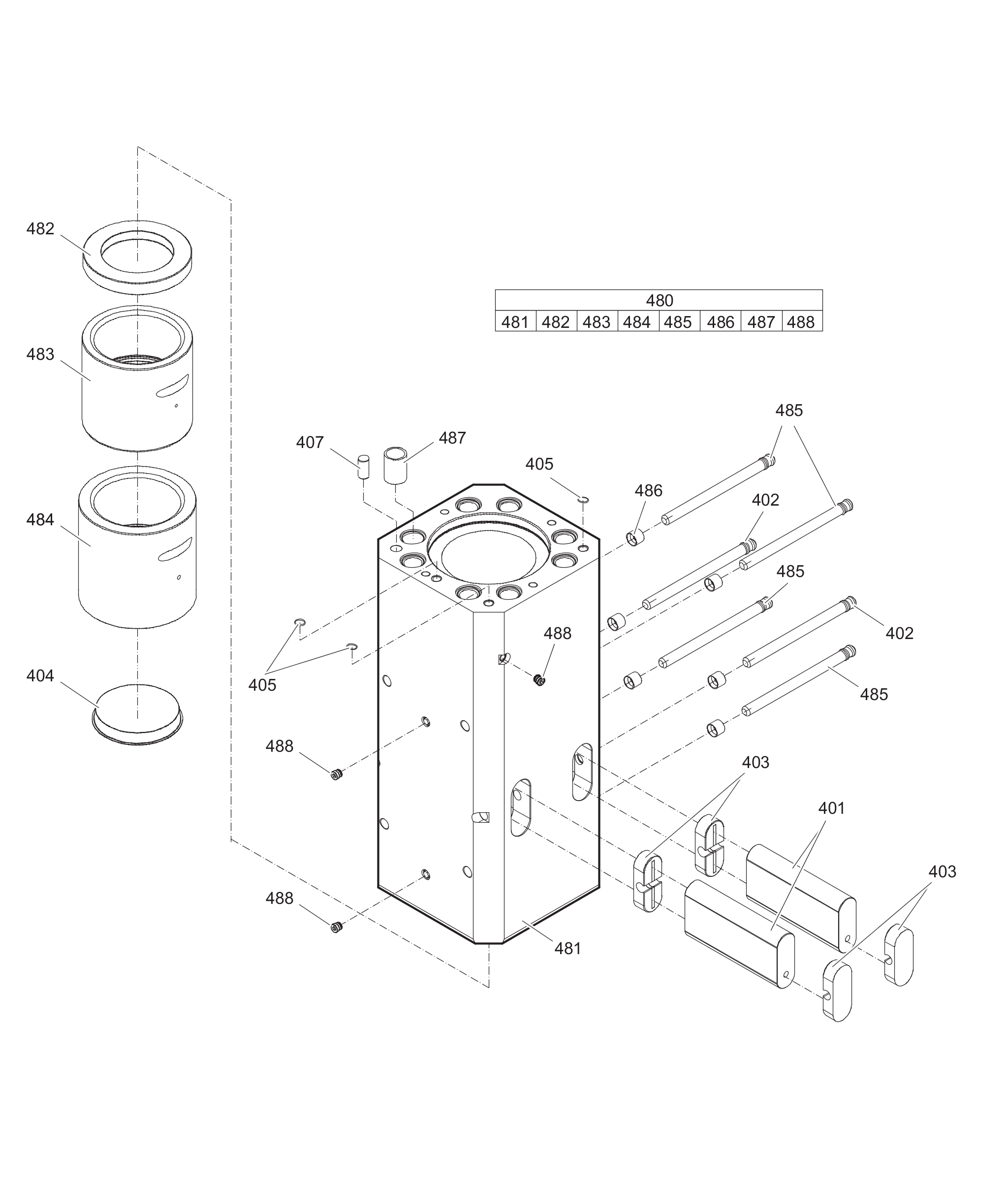

Percussion unit part 3: lower breaker part (steel)
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363100027 | Retainer bar | 2 | ||||
| 3362260431 | BOLT | 2 | ||||
| 3363100029 | Plug | 4 | ||||
| 3363094977 | Protective cap | 1 | ||||
| 3360314453 | O-RING | 3 | ||||
| 3360106818 | LOCK PIN | 1 | ||||
| 3363098316 | Lower breaker part complete with lower wear bush steel | 1 | Note: When ordering a lower breaker part for DustProtector version it is imperative to order additionally the base for wiper (item 18) and the wiper (item 19). | |||
| - | Lower breaker part | 1 | ||||
| 3363100035 | Impact ring | 1 | ||||
| 3363100037 | Wear bush | 1 | ||||
| 3363100041 | Wear bush (steel) | 1 | ||||
| 3362260431 | BOLT | 4 | ||||
| 3362260433 | LOCKING BUSH | 6 | ||||
| 3363085321 | Threaded insert | 8 | ||||
| 3363086301 | PLUG | 4 |
