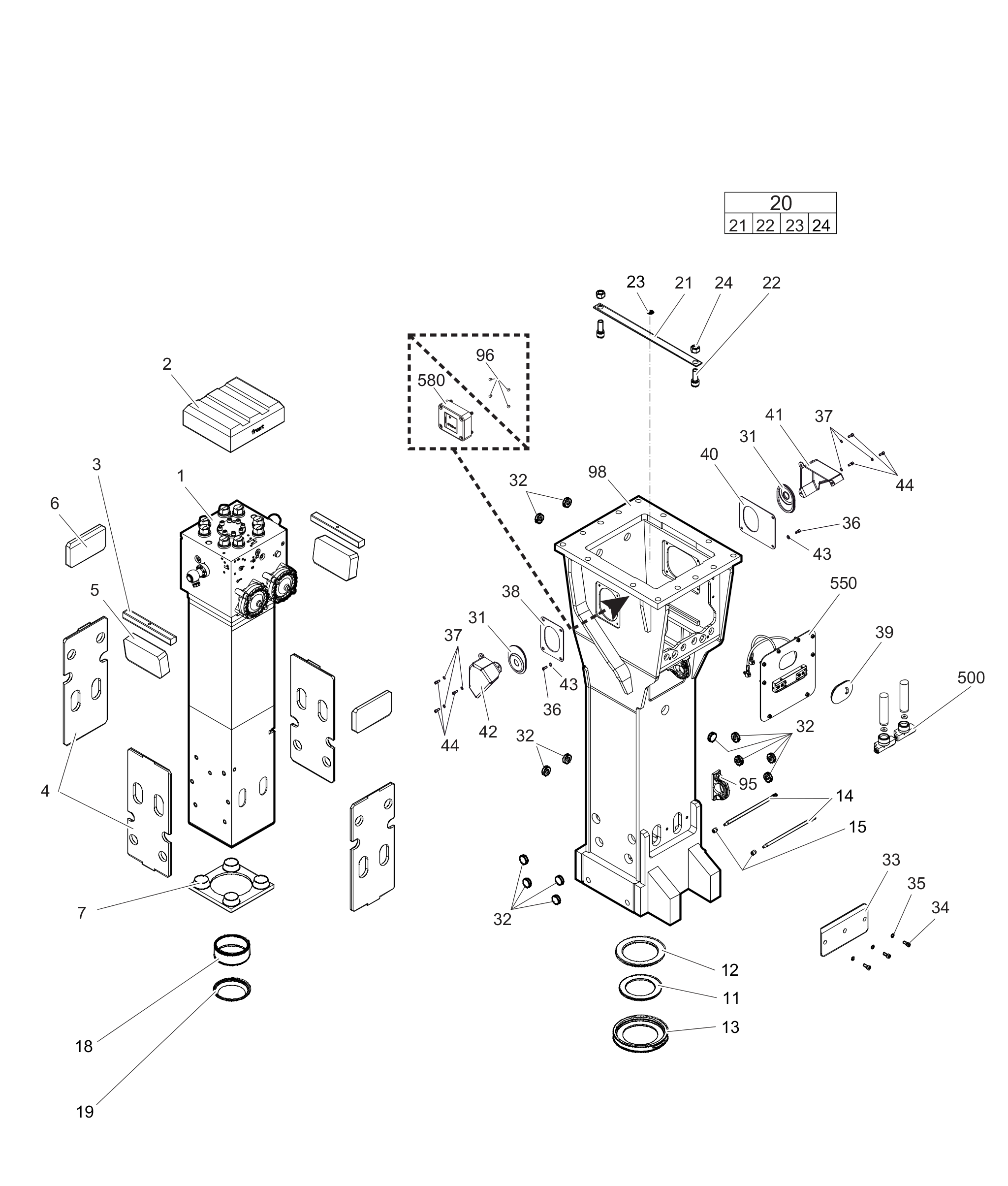

Mechanical
Spare Parts
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| - | PERCUSSION UNIT | 1 | see sepate chapterB | steel see chapter Optional parts C | professional welding process necessary | |||
| 3362260549 | ELASTIC PAD | 1 | ||||
| 3362260545 | SHOCK ABSORBER | 2 | ||||
| 3362269697 | GUIDE PLATE | 4 | ||||
| 3362262667 | GUIDE PLATE | 2 | ||||
| 3362262665 | GUIDE PLATE | 2 | ||||
| 3363093383 | PLATE | 1 | ||||
| 3363070666 | FLOATING RING (tribolid) | 1 | ||||
| 3363035643 | COUNTER RING | 1 | ||||
| 3363035639 | GUIDE RING | 1 | ||||
| 3363070645 | BOLT | 2 | ||||
| 3361854363 | LOCKING BUSH | 2 | ||||
| 3363088649 | BASE FOR WIPER | 1 | ||||
| 3363034589 | WIPER | 1 | ||||
| 3363083677 | TRANSPORT SAFETY DEVICE complete | 1 | ||||
| - | TRANSPORT SAFETY DEVICE | 1 | ||||
| - | TRANSPORT SAFETY DEVICE | 1 | ||||
| 3360114151 | ALLEN SCREW | 2 | ||||
| 3360114151 | ALLEN SCREW | 2 | ||||
| 3363091872 | LABEL TRANSPORT SAFETY DEVICE | 1 | ||||
| 3363091872 | LABEL TRANSPORT SAFETY DEVICE | 1 | ||||
| 3360103255 | NUT | 2 | ||||
| 3360103255 | NUT | 2 | ||||
| 3363031181 | COVER | 2 | ||||
| 3363086017 | PLUG | 13 | ||||
| 3363098852 | PLATE | 1 | ||||
| 3360103768 | ALLEN SCREW | 3 | ||||
| 3361333703 | LOCK WASHER | 3 | ||||
| 3360103750 | ALLEN SCREW | 2 | ||||
| 3361850596 | PAIR OF LOCK WASHERS | 6 | ||||
| 3363098838 | PLATE | 1 | ||||
| 3363092697 | COVER | 1 | ||||
| 3363106729 | PLATE | 1 | ||||
| 3363111477 | SWIVEL JOINT COVER | 1 | ||||
| 3363111461 | SWIVEL JOINT COVER | 1 | ||||
| 3363111296 | PAIR OF LOCK WASHERS | 2 | ||||
| 3360103751 | ALLEN SCREW | 6 | ||||
| 3363111996 | LIFTING EYE | 2 | ||||
| 3315439145 | PROTECTIVE PLUG HATCON | 4 | only for hydraulic breakers without HATCON | |||
| 3363106726 | BREAKER BOX | 1 | with item 95 and 96 | |||
| 3363067123 | AUTOMATIC LUBRICATION SYSTEM | 2 | ||||
| 3363119322 | CONNECTING KIT for automatic lubrication system | 1 | see sepate chapterB | steel see chapter Optional parts C | professional welding process necessary | |||
| 3315439180 | HATCON | 1 | only for hydraulic breakers with HATCON / see separate chapter |
