Mechanical
Spare Parts
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3362260429 | RETAINER BAR | 2 | ||||
| 3362260431 | BOLT | 2 | ||||
| 3360106818 | LOCK PIN | 1 | ||||
| 3362260435 | PLUG | 4 | ||||
| 3361855719 | PROTECTIVE CAP | 1 | ||||
| 3360314453 | O-RING | 3 | ||||

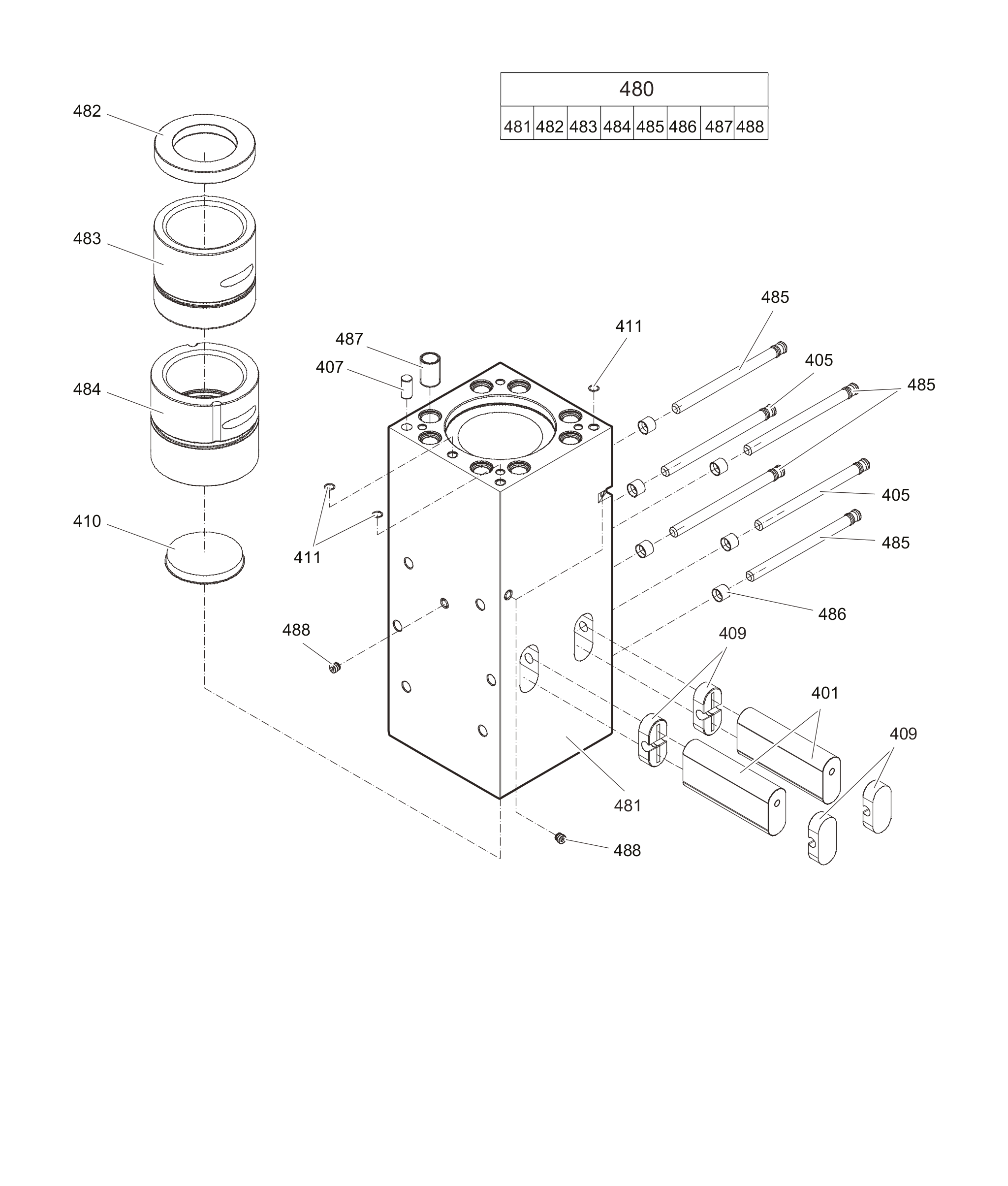

| 3363089500 | LOWER BREAKER PART complete with lower wear bush steel | 1 | Note: When ordering a lower breaker part for DustProtector version it is imperative to order additionally the base for wiper (item 18) and the wiper (item 19). | |||
| - | LOWER BREAKER PART | 1 | ||||
| 3363069085 | IMPACT RING | 1 | ||||
| 3363069507 | WEAR BUSH | 1 | ||||
| 3363088657 | WEAR BUSH (steel) | 1 | ||||
| 3362260431 | BOLT | 4 | ||||
| 3362260433 | LOCKING BUSH | 6 | ||||
| 3363085499 | THREADED INSERT | 8 | ||||
| 3363086301 | PLUG | 3 |
