Base plate (13) HB 7000, MG 5000, SC 6200
Spare Parts

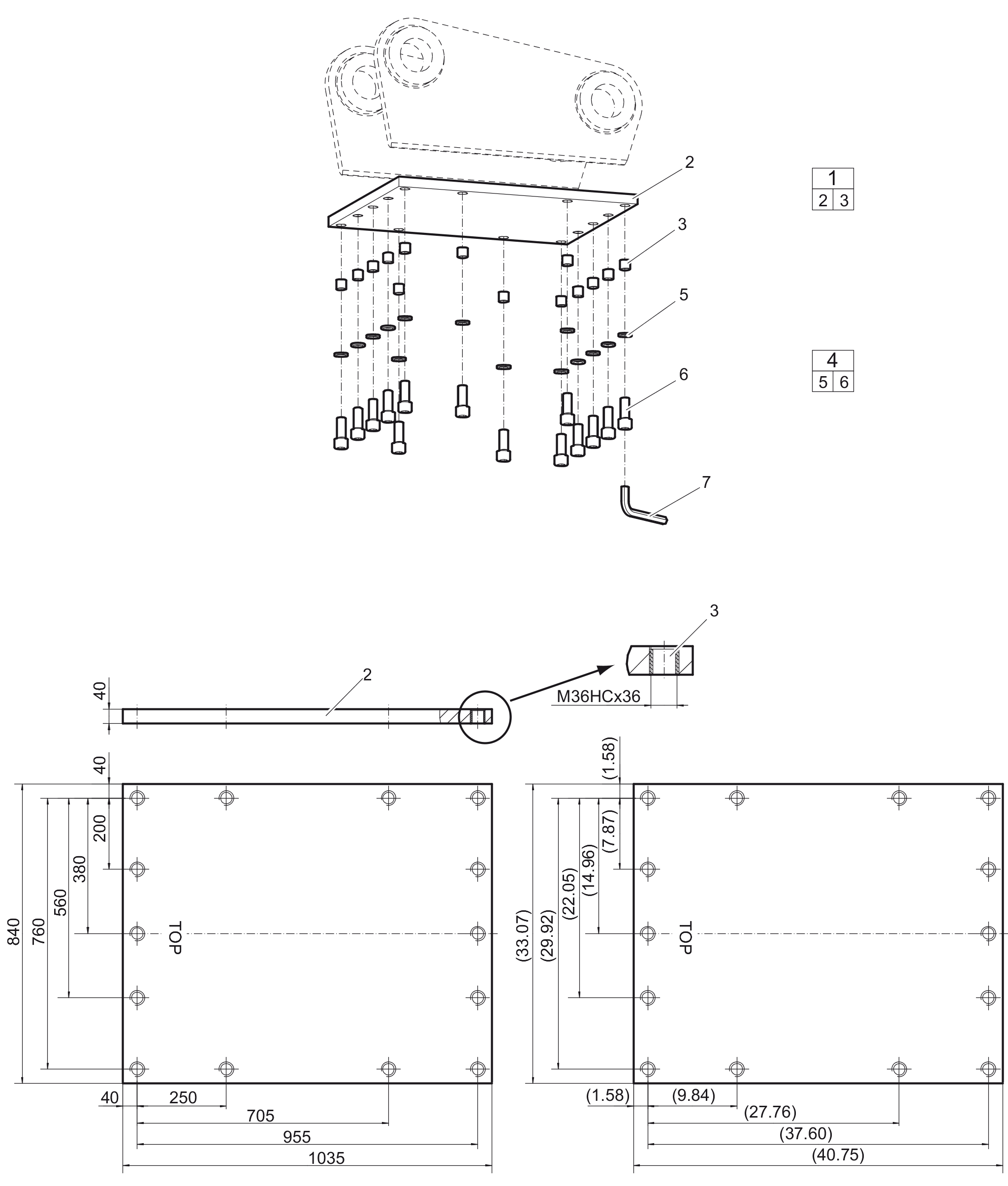

Base plate
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363093497 | BASE PLATE WITH THREADED INSERTS | 1 | ||||
| - | Base plate | 1 | ||||
| 3361031611 | Threaded insert, M36x36, factory assembled | 14 | ||||
| 3363087305 | BOLT KIT | 1 | ||||
| 3361853365 | PAIR OF LOCK WASHERS | 14 | ||||
| 3360114151 | ALLEN SCREW | 14 | ||||
| 3360478949 | ALLEN KEY (27 mm) | 1 |
