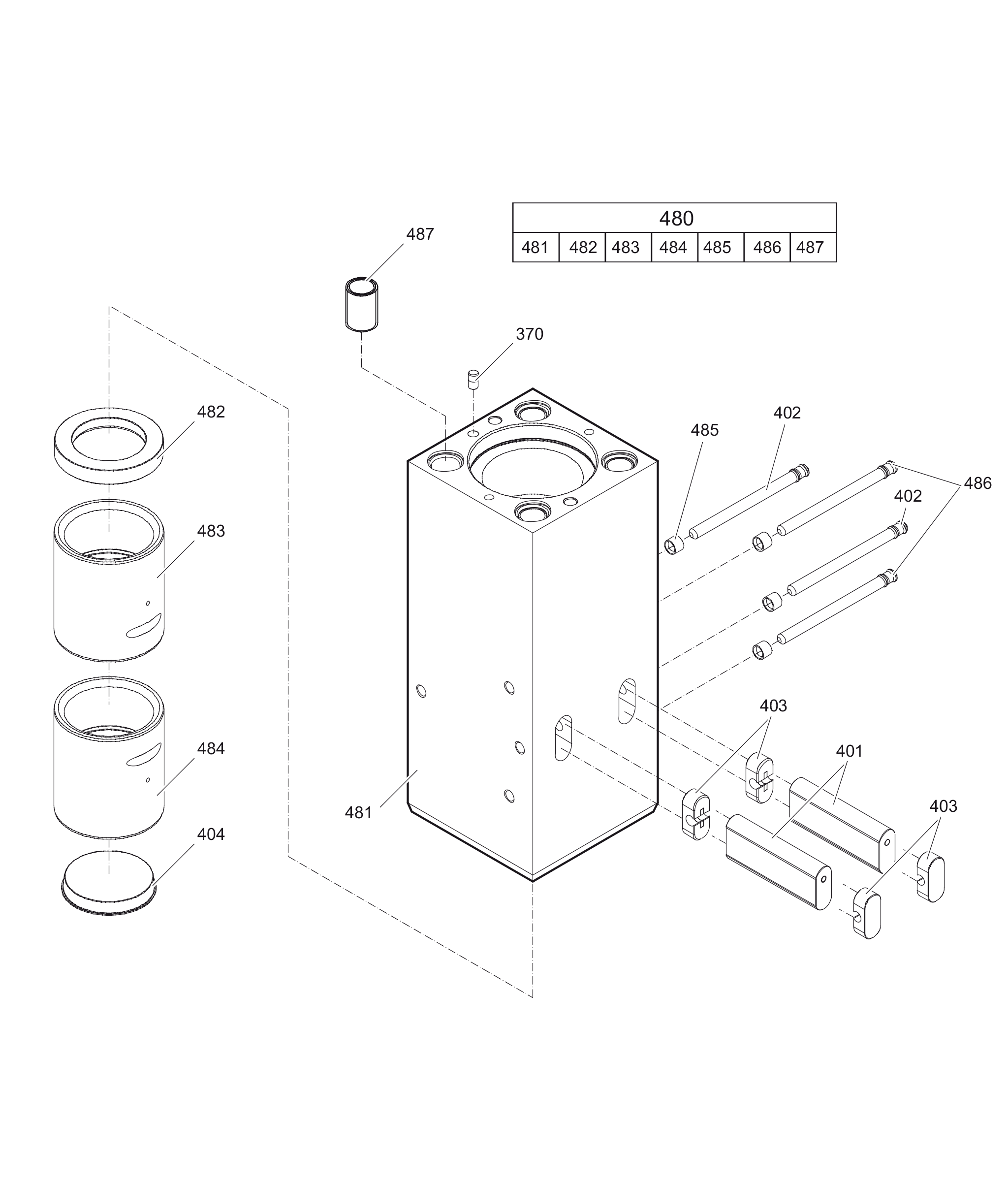

Percussion unit part 3: lower breaker part (steel)
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3362268185 | Lock pin | 1 | ||||
| 3360981927 | Retainer bar | 2 | ||||
| 3361854347 | Bolt | 2 | ||||
| 3362262925 | Plug | 4 | ||||
| 3363085471 | Protective cap | 1 | ||||
| 3363094603 | Lower breaker part complete with lower wear bush steel | 1 | Note: When ordering a lower breaker part for DustProtector version it is imperative to order additionally the base for wiper (item 18) and the wiper (item 19). | |||
| - | Lower breaker part | 1 | ||||
| 3363097721 | Impact ring | 1 | ||||
| 3363097723 | Wear bush | 1 | ||||
| 3363097727 | Wear bush (steel) | 1 | ||||
| 3361854363 | LOCKING BUSH | 4 | ||||
| 3361854347 | Bolt | 2 | ||||
| 3363085499 | THREADED INSERT | 4 |
