Options / accessories

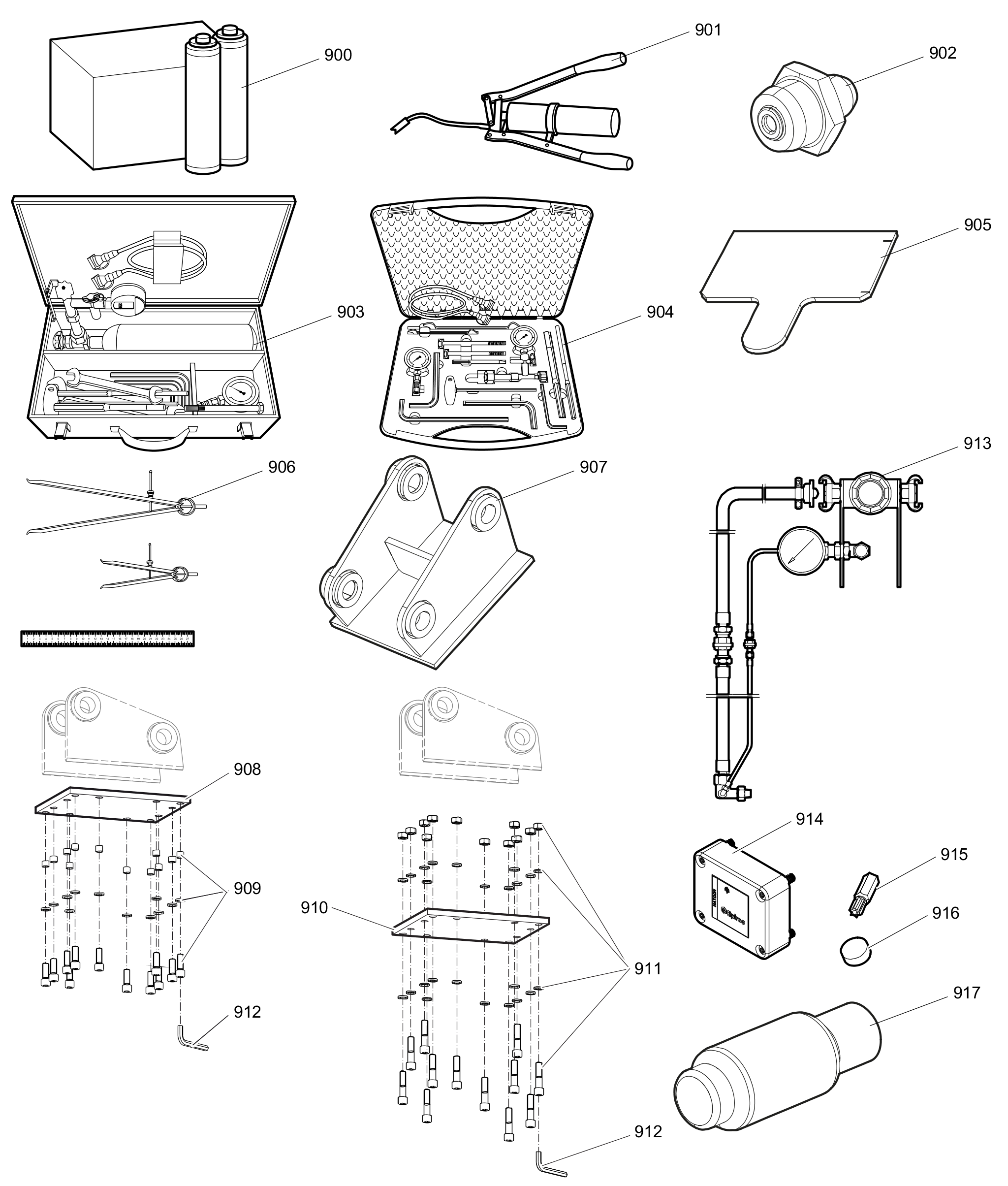

Spare Parts
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363122356 | BIO CHISEL PASTE CARTRIDGE, 12 x 550 g (1.2 lbs) | 1 | ||||
| 3363091200 | CHISEL PASTE CARTRIDGE, 12 x 500 g (1.1 lbs) | 1 | ||||
| 3363034567 | GREASE PUMP | 1 | ||||
| 3360433774 | GREASE NIPPLE | 1 | ||||
| 3363089844 | MAINTENANCE AND CHARGING BOX, with nitrogen cylinder 2 l (0.43 gal (0.53 US gal)) | 1 | ||||
| 3363094940 | MAINTENANCE AND CHARGING BOX without nitrogen cylinder | 1 | ||||
| 3363067413 | TEST GAUGE LOWER WEAR BUSH | 1 | ||||
| 3363094952 | INSIDE CALLIPERS UPPER WEAR BUSH | 1 | ||||
| - | ADAPTER PLATE matching the carrier. Consult the authorized Customer Center/Dealer in your area. | 1 | ||||
| 3363099799 | BASE PLATE WITH THREADED INSERTS | 1 | ||||
| 3363087303 | BOLT KIT | 1 | ||||
| 3363100697 | BASE PLATE WITH THROUGH BORINGS | 1 | ||||
| 3363094575 | BOLT KIT | 1 | ||||
| 3360209445 | ALLEN KEY (22 mm) | 1 | ||||
| 3363090531 | ADAPTER KIT FOR UNDERWATER APPLICATIONS | 1 | ||||
| 3315442500 | HATCON KIT 1 (3G) | 1 | with item 915 and 916Hydraulic breakers are factory equipped with threads for attaching Retrofit kit HATCONfrom s/n DEQ200128 - (MB 1650)from s/n DEQ200168 - (MB 1650 DP)from s/n DEQ200049 - (MB 1650 E) | |||
| 3315442520 | HATCON KIT 1 (LTE) | 1 | with item 915 and 916Hydraulic breakers are factory equipped with threads for attaching Retrofit kit HATCONfrom s/n DEQ200128 - (MB 1650)from s/n DEQ200168 - (MB 1650 DP)from s/n DEQ200049 - (MB 1650 E) | |||
| 3315439105 | SECURITY BIT HATCON | 1 | ||||
| 3315439106 | MAGNET HATCON | 1 | ||||
| 3363092981 | PISTON RETAINER | 1 | Consult the authorized Customer Center/Dealer in your area. |
