Mechanical
Spare Parts

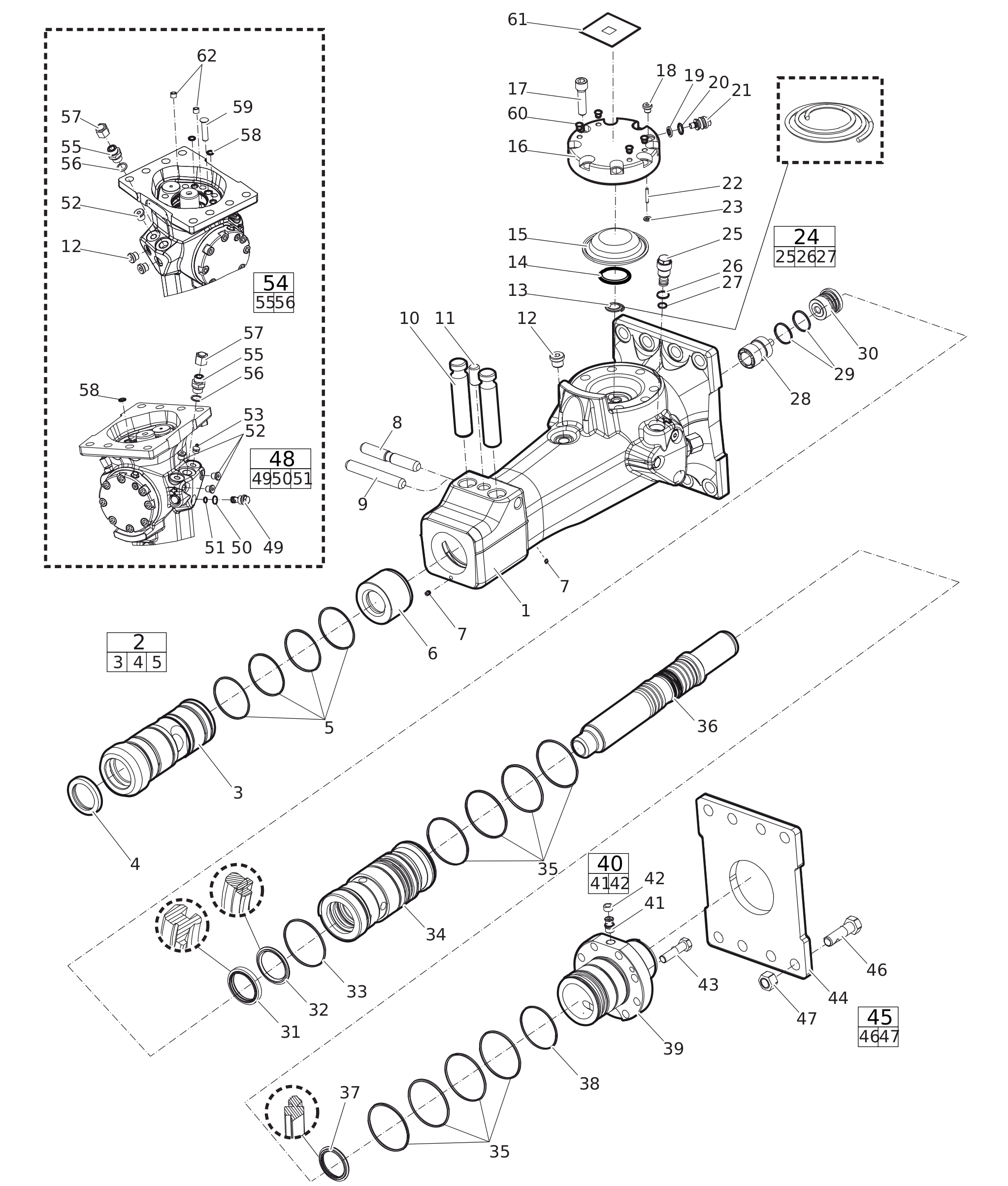

| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| - | HAMMER BODY | 1 | ||||
| - | BREAKER BODY | 1 | ||||
| 3315353880 | BUSHING, complete | 0 | ||||
| 3315353880 | BUSHING, complete | 1 | ||||
| - | BUSHING, Ø 70.0 mm (Ø 2.76 in.) | 1 | ||||
| 3315356500 | SCRAPER RING | 1 | ||||
| 0663210289 | O-RING | 4 | ||||
| 3315298500 | STOP RING | 0 | ||||
| 3315298500 | STOP RING | 1 | ||||
| 0686100016 | PLUG | 0 | ||||
| 0686100016 | PLUG | 2 | ||||
| 3315293010 | LOCK PIN | 1 | ||||
| 3315293010 | LOCK PIN | 0 | ||||
| 0108169126 | SPRING PIN, option | 1 | ||||
| 0108169126 | SPRING PIN, option | 0 | ||||
| 3315300010 | TOOL RETAINER | 0 | ||||
| 3315300010 | TOOL RETAINER | 2 | ||||
| 3315304600 | LOCK BUFFER | 0 | ||||
| 3315304600 | LOCK BUFFER | 1 | ||||
| 0686371801 | PLUG | 3 | ||||
| 0686371801 | PLUG | 0 | ||||
| 3315359610 | COIL SPRING | 1 | ||||
| 3315359610 | COIL SPRING | 0 | ||||
| 3315359521 | DIAPHRAGM SUPPORT | 0 | ||||
| 3315359521 | DIAPHRAGM SUPPORT | 1 | ||||
| 3315238200 | DIAPHRAGM | 1 | ||||
| 3315238200 | DIAPHRAGM | 0 | ||||
| 3315299710 | ACCUMULATOR HOUSE | 0 | ||||
| 3315299710 | ACCUMULATOR HOUSE | 1 | ||||
| 0211196534 | HEX SOCK. SCREW | 8 | ||||
| 0211196534 | HEX SOCK. SCREW | 0 | ||||
| 0686371805 | PLUG | 1 | ||||
| 0686371805 | PLUG | 0 | ||||
| 3115329002 | SEAL RING | 1 | ||||
| 3115329002 | SEAL RING | 0 | ||||
| 0663212000 | O-RING | 1 | ||||
| 0663212000 | O-RING | 0 | ||||
| 3315366000 | VALVE | 1 | ||||
| 3315366000 | VALVE | 0 | ||||
| 0101414000 | PIN | 0 | ||||
| 0101414000 | PIN | 1 | ||||
| 0663211400 | O-RING | 1 | ||||
| 0663211400 | O-RING | 0 | ||||
| 3315335000 | PRESSURE RELIEF VALVE, complete | 1 | CAS No. see chapter "Environmental Product Compliance - REACH Declaration" | |||
| 3315335000 | PRESSURE RELIEF VALVE, complete | 0 | ||||
| - | PRESSURE RELIEF VALVE | 1 | ||||
| 0663903201 | O-RING | 1 | ||||
| 0663903201 | O-RING | 1 | ||||
| - | O-RING | 1 | ||||
| - | O-RING | 1 | ||||
| 3315298710 | CONTROL VALVE | 0 | ||||
| 3315298710 | CONTROL VALVE | 1 | ||||
| 0663211489 | O-RING | 0 | ||||
| 0663211489 | O-RING | 2 | ||||
| 3315365005 | VALVE COVER | 1 | ||||
| 3315365005 | VALVE COVER | 0 | ||||
| 0665909961 | WIPER | 1 | ||||
| 0665909961 | WIPER | 0 | ||||
| 3315391001 | PISTON ROD SEAL | 1 | ||||
| 3315391001 | PISTON ROD SEAL | 0 | ||||
| 0663210576 | O-RING | 1 | ||||
| 0663210576 | O-RING | 0 | ||||
| 3315298105 | LINER | 0 | ||||
| 3315298105 | LINER | 1 | ||||
| 0663211254 | O-RING | 0 | ||||
| 0663211254 | O-RING | 8 | ||||
| 3315298305 | PISTON | 0 | ||||
| 3315298305 | PISTON | 1 | ||||
| 5750533164 | PISTON ROD SEAL | 1 | ||||
| 5750533164 | PISTON ROD SEAL | 0 | ||||
| 0663927900 | O-RING | 0 | ||||
| 0663927900 | O-RING | 1 | ||||
| 3315298205 | BACK HEAD | 1 | ||||
| 3315298205 | BACK HEAD | 0 | ||||
| 3315244881 | CHECK VALVE, complete | 0 | ||||
| 3315244881 | CHECK VALVE, complete | 1 | ||||
| - | CHECK VALVE | 1 | ||||
| 3315280800 | VALVE RUBBER | 1 | ||||
| 0147140503 | SCREW, HEX HEAD | 0 | ||||
| 0147140503 | SCREW, HEX HEAD | 8 | ||||
| 3315322600 | BASE PLATE WITH TROUGH BORINGS | 1 | ||||
| 3315322600 | BASE PLATE WITH TROUGH BORINGS | 0 | ||||
| 3315322100 | BOLT KIT | 0 | ||||
| 3315322100 | BOLT KIT | 1 | ||||
| - | SCREW | 8 | ||||
| - | NUT, M16 | 8 | ||||
| 3315369541 | RESTRICTOR, complete | 0 | ||||
| 3315369541 | RESTRICTOR, complete | 1 | ||||
| - | RESTRICTOR, Ø 4.1 mm (Ø 0.16 in.) | 1 | ||||
| 0686644207 | PLUG | 4 | ||||
| 0686644207 | PLUG | 0 | ||||
| 3360433774 | GREASE NIPPLE | 0 | ||||
| 3360433774 | GREASE NIPPLE | 1 | ||||
| 0580001846 | PIPE COUPLING | 1 | ||||
| 0580001846 | PIPE COUPLING | 0 | ||||
| - | NIPPLE | 2 | ||||
| 0664000003 | SEAL RING | 2 | ||||
| 3361353486 | COVER | 0 | ||||
| 3361353486 | COVER | 2 | ||||
| 0665090014 | SEAL RING | 0 | ||||
| 0665090014 | SEAL RING | 1 | ||||
| 3315305000 | PLUG | 1 | ||||
| 3315305000 | PLUG | 0 | ||||
| 3315439145 | PROTECTIVE PLUG HATCON | 4 | ||||
| 3315439145 | PROTECTIVE PLUG HATCON | 0 | ||||
| 3315439101 | HATCON LABEL | 1 | ||||
| 3315439101 | HATCON LABEL | 0 | ||||
| 0686100009 | PLUG | 2 | ||||
| 0686100009 | PLUG | 0 |
