Mechanical
Spare Parts

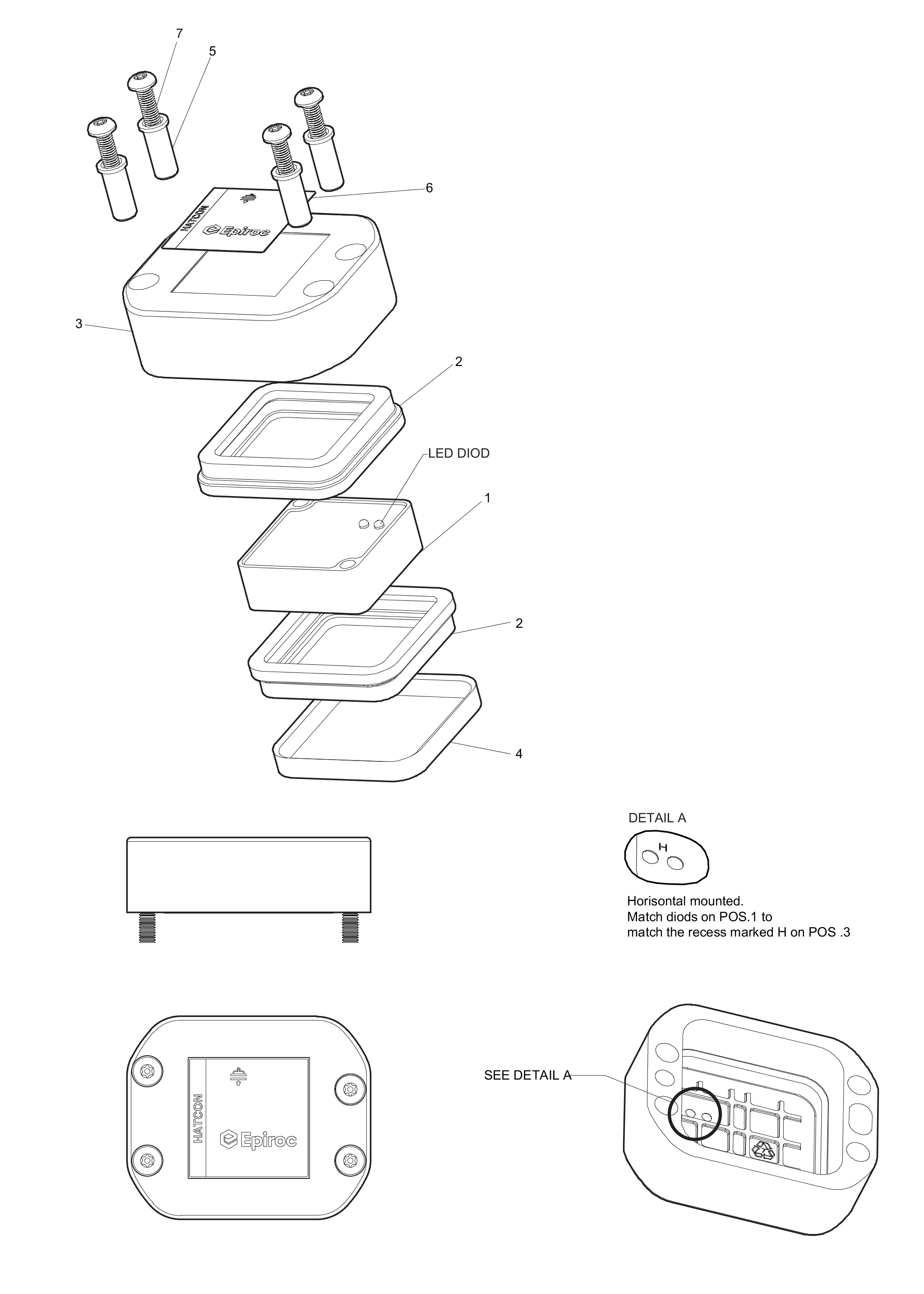

HATCON (Horizontal)
# | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| - | TRACKING MODULE HATCON | 1 | ||||
| 3315439130 | DAMPER | 2 | ||||
| 3315439117 | HOUSING TYPE 2 HATCON | 1 | ||||
| 3315439140 | LOCK RING | 1 | ||||
| 3315439120 | SLEEVE | 4 | ||||
| 3315439100 | LABEL | 1 | ||||
| 3315442600 | SCREW | 4 |
Spare Parts
# | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| - | TRACKING MODULE HATCON | 1 | ||||
| 3315439130 | DAMPER | 2 | ||||
| 3315439117 | HOUSING TYPE 2 HATCON | 1 | ||||
| 3315439140 | LOCK RING | 1 | ||||
| 3315439120 | SLEEVE | 4 | ||||
| 3315439100 | LABEL | 1 | ||||
| 3315442600 | SCREW | 4 |
